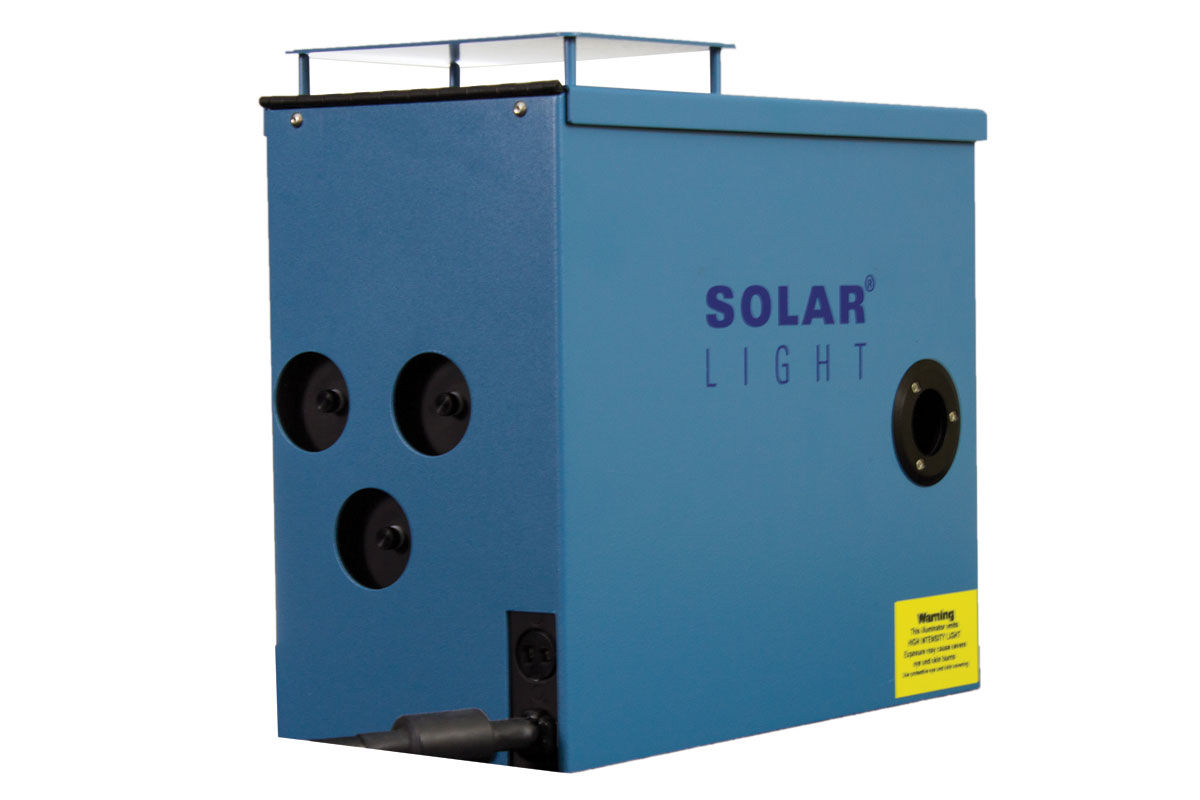

16S-150 PHOTOBIOLOGY SOLAR SIMULATOR

1.2″ (3 cm) 150W Photobiology Solar Simulator Kit Model 16S-150-006

The 150W 16S-150-006 Photobiology Testing Solar Simulator Kits are designed for versatility in laboratory applications including photobiological studies, mutagenesis research, and UV biological experiments. The unit produces a 1.2″ (3 cm) Class A beam in the 290-400nm range, which can be quickly and easily configured by the user to provide UVA only, UVB only, UVA+B, or visible light optionally.

GET A QUOTE

Description

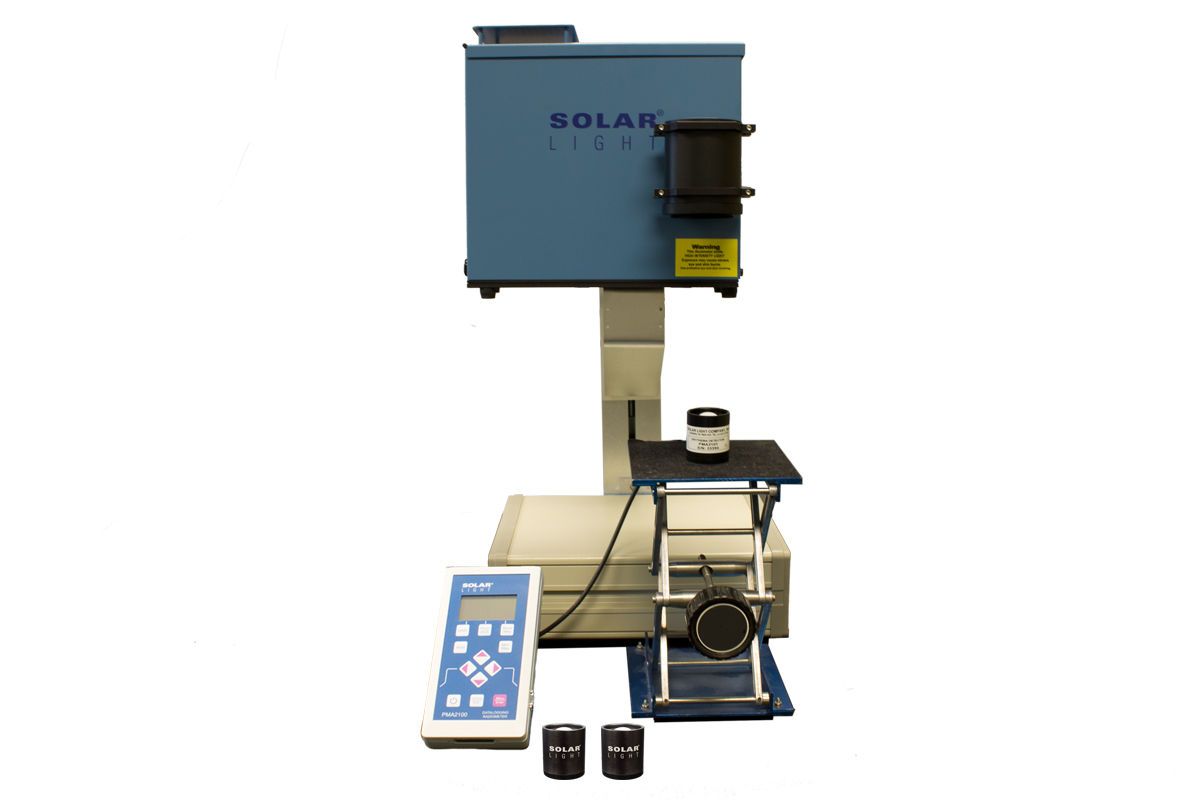

Our state of the art single output 16S-150-006 Photobiology Testing Solar Simulator Kits are designed for versatility in laboratory applications including photobiological studies, mutagenesis research, and UV biological experiments. They produce solar UV radiation in the 290-400nm range, and can be quickly and easily configured by the user to provide UVA only, UVB only, UVA+B, or visible light optionally. This feature allows an optional dimension of research to be used when studying carcinogenesis induced by UV radiation. The output intensity can be tuned down to only 1 J/m2 per minute. These precision research-grade instruments are specifically designed to comply with the latest laboratory standards such as ASTM, IEC, and ISO. These units can reliably produce UV levels several times stronger than tropical sun without any of the associated heat load. Our Turnkey Photobiology Testing Kits include the Simulator, Dual-Input Data Logging PMA2100 Radiometer, NIST-traceable PMA-Series UVA, UVA+B, and Photopic Sensors, and many other accessories so you can start testing instantly!

Laboratory applications including photobiological studies, mutagenesis research, and UV biological experiments.

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (please specify at order)

This field can't be Empty

±5%

This field can't be Empty

Forced air

This field can't be Empty

11.8” (30 cm)

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

Xenon Short Arc

This field can't be Empty

150W

This field can't be Empty

Near Zero

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

32°F to 95°F / 0°C to 35°C

This field can't be Empty

1.2” (3 cm)

This field can't be Empty

Factory Set Limit is 150 watts max

This field can't be Empty

Calibrated (Optional on all models)

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

3.9” (10 cm)

This field can't be Empty

7 lbs (3.2kg)

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

B (IEC 60904-9 2007)<br> B (JIS C 8912)<br> B (ASTM E927 - 05)

This field can't be Empty

< ±2% rms

This field can't be Empty

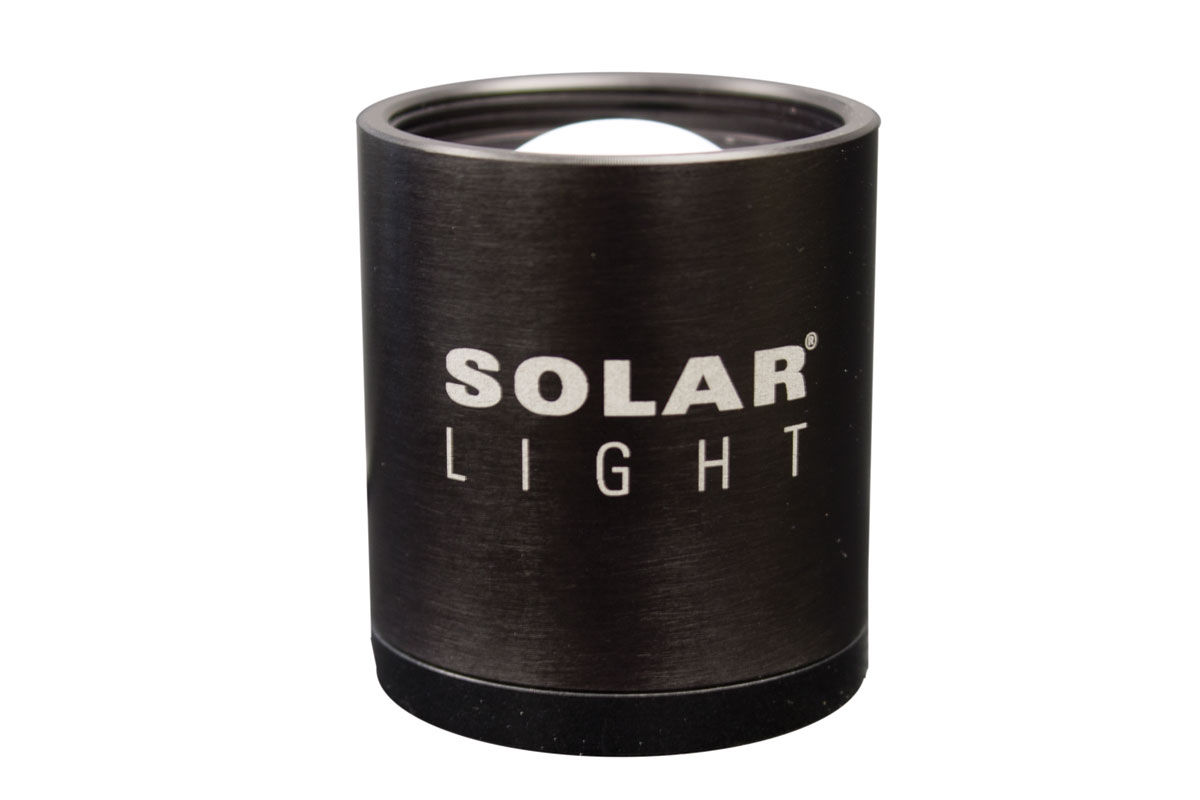

<ul> <li><a href="https://solarlight.com/product_category/solar-simulators/16s-series-uv-simulators/">16S-150-UV Solar Simulator with 1.2” (3 cm) vertical output</a></li> <li><a href="https://solarlight.com/product/xps-150-xenon-lamp-power-supply/">XPS-150 Power Supply</a></li> <li><a href="https://solarlight.com/product/datalogging-radiometer-pma2100-2/">PMA2100 Data Logging Radiometer Package</a></li> <li><a href="https://solarlight.com/product/pma-2107-non-weighted-uva-uvb-sensor/">PMA2107- UVS UVA+B Sensor</a></li> <li><a href="https://solarlight.com/product/pma-2110-uva-sensor/">PMA2110-UVS UVA Sensor</a></li> <li><a href="https://solarlight.com/product/pma2130-photopic-detector/">PMA2130 Photopic Sensor</a></li> <li>Visible Light Kit – to convert UV output to visible light output</li> <li>Heavy Duty Storage Case for conversion components</li> <li><a href="https://solarlight.com/product/sl-07702-dark-safety-glasses/">UV Safety Glasses (Dark)</a></li> </ul>

This field can't be Empty

1.2” (3 cm)

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (please specify at order)

This field can't be Empty

Xenon Short Arc (For All Models)

This field can't be Empty

150W (For All Models)

This field can't be Empty

±5% (For All Models)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

< ±2% rms

This field can't be Empty

B (IEC 60904-9 2007)<br> B (JIS C 8912)<br> B (ASTM E927 - 05)

This field can't be Empty

3” (7.6 cm)

This field can't be Empty

n/a

This field can't be Empty

Near Zero

This field can't be Empty

Factory Set Limit is 150 watts max

This field can't be Empty

32°F to 95°F / 0°C to 35°C

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

Forced air

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

7 lbs (3.2kg)

This field can't be Empty

Brochure

PHOTOBIOLOGY TESTING SOLAR SIMULATOR 16S-150-006

Quick Start Guide

16S-Series 150-300W Solar Simulator Quick Start Guide

SL-07702 Dark Safety Glasses

Solar Light offers safety glasses in various styles to suit research and testing environments using solar simulators. These lightweight...

Laboratory Scissor Jack

Solar Light Company's laboratory scissor jack has a 5.5” X 5.5” (14 cm X 14 cm) surface area and...

SL-06173 150 Watt Ozone-Free Short Arc Xenon Lamp

This OEM Xe Replacement Lamp is designed to work with current Solar Light 16-Series 150W Solar Simulators, as well...
