Applications

Radiometry and laboratory measurements
Photometry
Environmental monitoring Industrial hygiene and safety

Clinical studies & phototherapy
Photobiology
Environmental monitoring
Museum monitoring

Industrial process monitoring
UV-curing and printing industry
Sensor calibration
Agriculture

Features

Wide variety of detectors available

Many standard detectors are available off the shelf. Due to its novel features the PMA2100 allows us to interface custom detectors quickly and inexpensively.

Ease of use

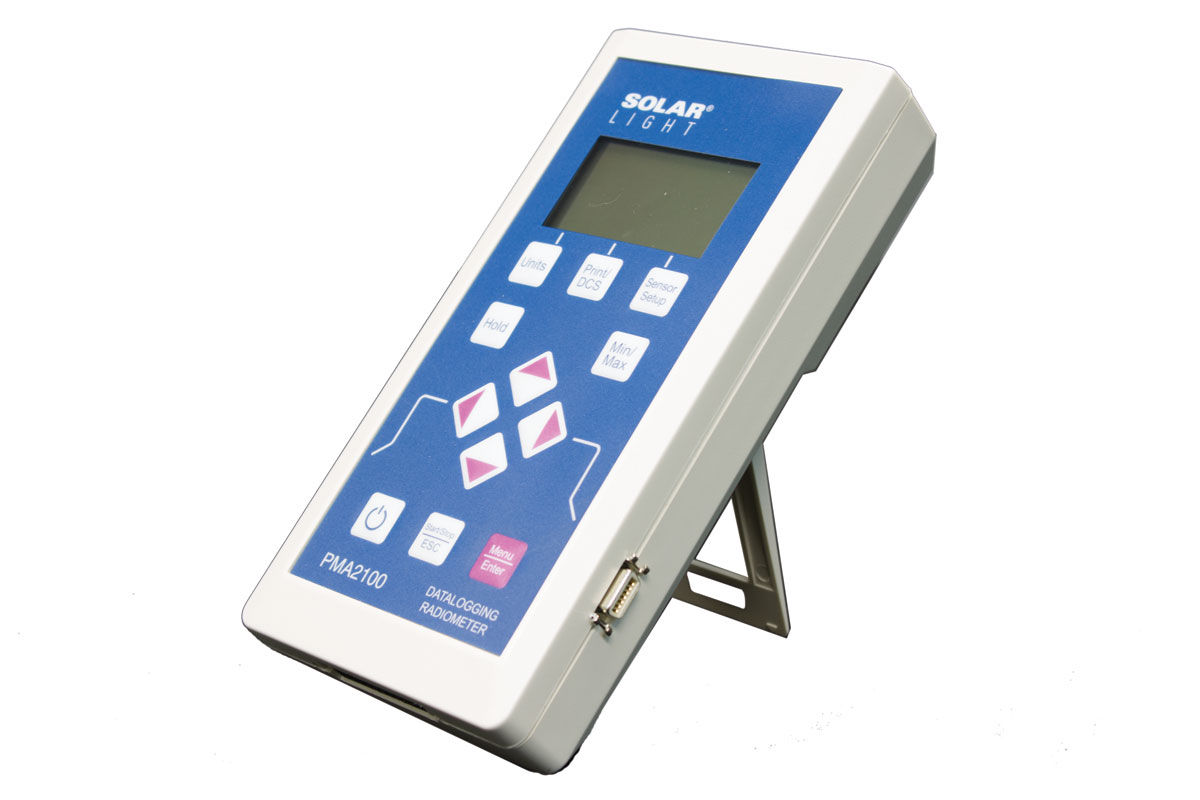

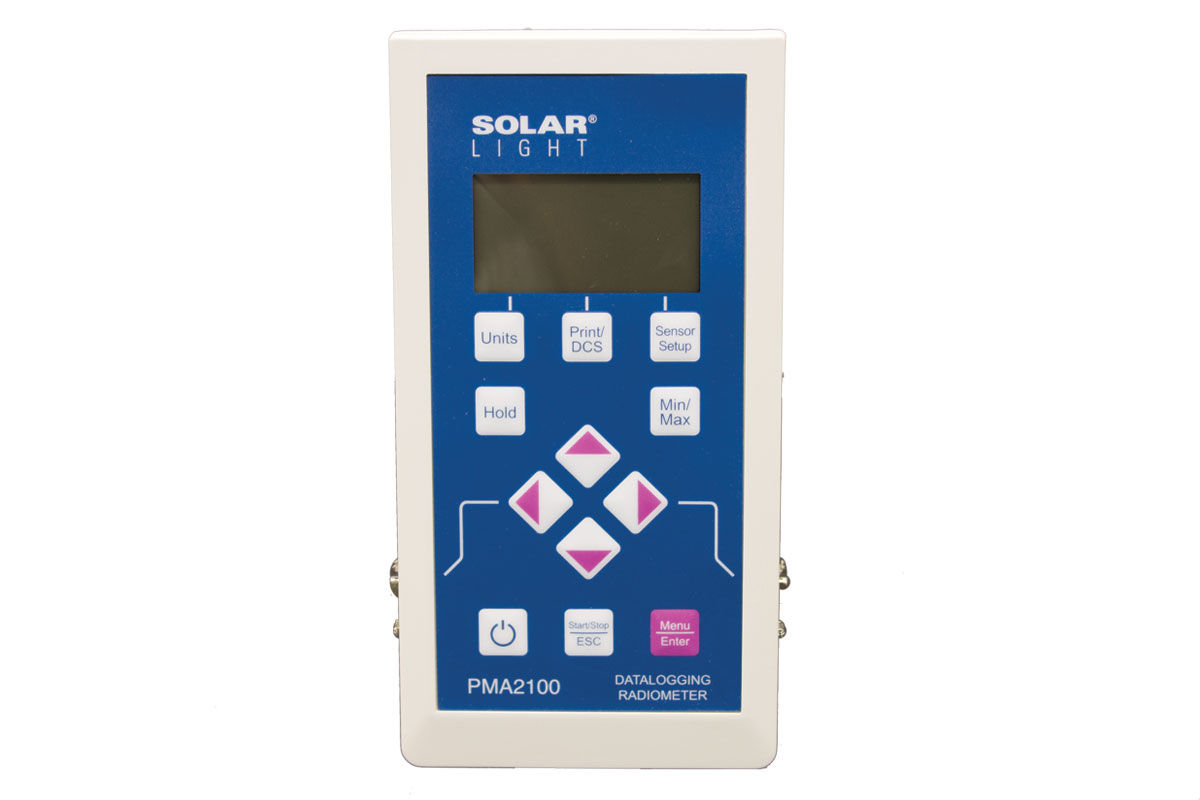

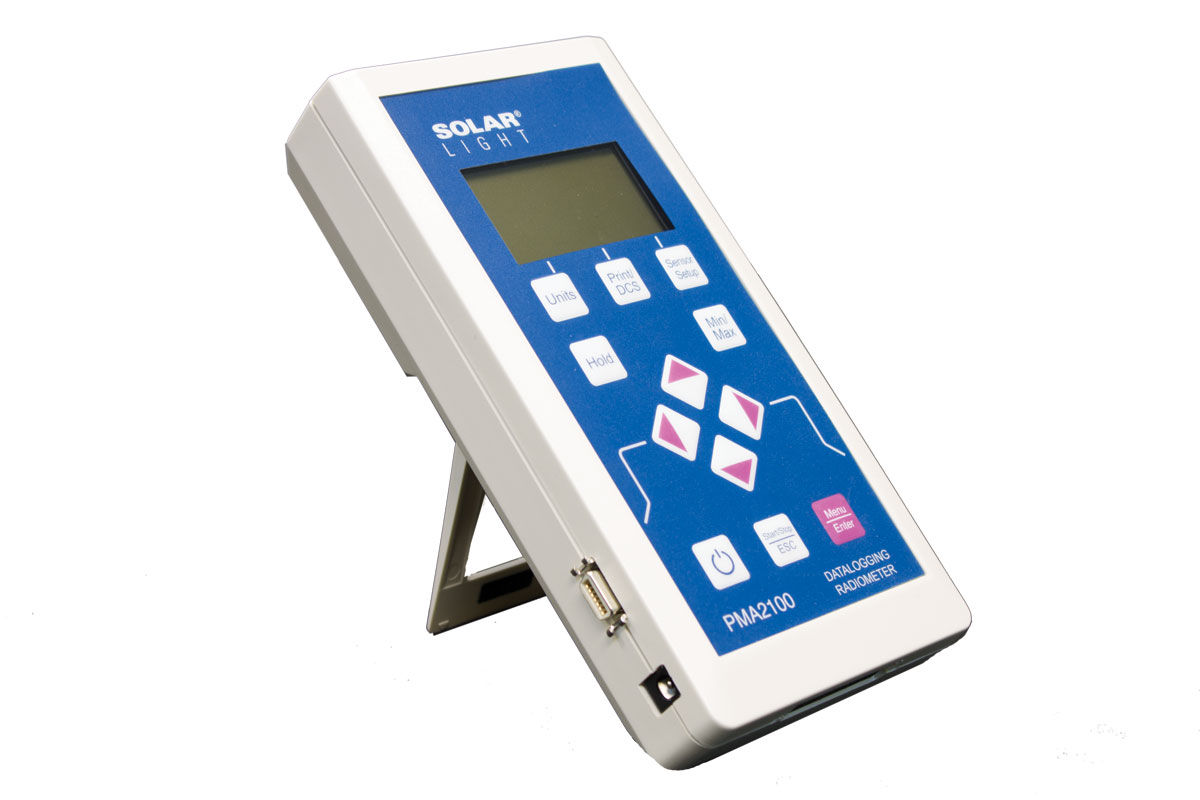

The PMA2100 automatically configures itself for the new sensor when connected, becoming a UV meter, Photometer / Light Meter or Radiometer. No more entering programs and calibration factors. The detector setup and algorithms are encapsulated in the detector. The detector is ready to use out of the box.

Portability

The PMA2100 with its powerful features easily fits into the palm of your hand. Up to 2 detectors can be connected simultaneously via a 1ft/5ft cable enabling measurements in difficult to reach places. Rechargeable batteries allow for 30 hours of continuous operation.

Data Logging

Up to 1024 data records can be stored in the internal non-volatile memory. The storage can be triggered manually or automatically in a user-set interval (1 minute-2 hours). Uniform record structure for all detectors simplifies data management.

Traceability

Each data sample is accompanied by a set of auxiliary information such as: date, time, detector type and serial number, currently used units, user set scale factor, detector calibration due date and a set of flags indicating the state of the meter. This encourages an implementation of Good Laboratory Practices (GLP) and eases interfacing to Laboratory Information Management Systems (LIMS).

Noise immunity

The signal amplification is done inside the detector encapsulated in a metal enclosure. The signal is delivered to the PMA2100 through a shielded cable offering high immunity to EMI and ESD.

Automatic unit conversion

The measurement result can be displayed in one of many units customary for the particular measurement. A push of a button changes the unit selection. Custom units and conversion algorithms can be programmed to the detector on request. Dose integration. A dose integration can be started from the keypad or remotely.

Computer interface

Connection to a PC through a USB interface enables transfer of collected data. PMA Organizer, a Windows-based software facilitates data retrieval, archiving and presentation.

User defined alarms

An independent alarm can be set for the instantaneous value or integrated dose for each detector. The alarm settings are stored in the detector and automatically recalled when the detector is in use.

Isolated Digital Input/Output

A process can be controlled by the PMA2100 through the optically isolated digital I/O. The inputs can start or stop the dose collection while the outputs are triggered by the dose and value alarms. Controlling the dose of radiation to a subject is one possible application. Power relay is available as an accessory.

Custom Narrow band Sensors

Solar Light can create a custom sensor for virtually any wavelength and bandwidth. Bandwidth is given as the Full Width at Half Maximum response.
Specifications

Detector Inputs:

2 detector inputs with up to 2 analog signals each.

Input ranges:

±0.4V, ±4 V, auto-ranging Resolution 15uV on the ±0.4V range 0-5Vdc output accessible through db-25 connection

Dynamic range:

>2·105

Accuracy:

0.5% FS all ranges

Nonlinearity:

max 0.02% FS within each range

Temperature coefficient:

max 50 ppm/°C

Operating temperature:

0 to 50°C

Power source:

4xAA NiCad or Alkaline batteries; external 9-12V AC or DC adapter

Weight:

17 oz (480 grams)

Size:

4"W x 7.6"H x 1.75"D (10x19.5x4.5 cm)
Packages

MIL-STD-810 F and G, Procedure 2.

We now offer a special radiometer and sensor package to measure the light requirements of MIL-STD 810F and G. This consists of our PMA2100 datalogging radiometer with PMA2106 UVB Sensor, PMA2110 UVA Sensor, PMA2130 Visible (Photopic) Sensor and PMA2144 modified Class II Pyranometer with additional cut-off filters.
Literature

• DATA LOGGING RADIOMETER PMA2100 Meters_PMA2100-.pdf


Downloads

PMA2100 Owners Manual (195K)
• Choosing a radiometer app113.pdf
• PMA Series capabilities and applications app112.pdf
Indoor Tanning in Norway Regulations and inspections; Nilsen LTN et al, StrålevernRapport 2008:9. Østerås: Norwegian Radiation Protection Authority, 2008.
PMA2100/2200 Wall Adapter, 95-240VAC input
Replacement batteries, NiCad, AA, Industrial, Rechargeable
Replacement batteries, Alkaline, AA, Industrial, Disposable.
Included Accessories
With PMA2100 Package:
Rechargeable batteries and universal charger 85-240VAC
Data logging organizer software and PC cable
Hard carrying case with storage for meter and 2 sensors
NIST traceable meter calibration certificate

With PMA2100 Basic Unit:
4 Alkaline Batteries
Required Accessories

Sensors and Detectors for use with PMA Radiometers


UVA
UV Sensor, UVA only
PMA2112 UV Sensor, UVA high intensity probe
PMA2113 UV Sensor, UVA with Liquid Light Guide adapter
PMA2114 UV Sensor, UVA with beam splitter adapter
UVB
PMA2101 UV Sensor, UVB erythemally weighted
PMA2103 UV Sensor, UVB with Liquid Light Guide adapter
PMA2105 UV Sensor, UVB with beam splitter
PMA2106 UV Sensor, UVB only
UVA + UVB
PMA2107 UV Sensors, UVA+ UVB
UVC
PMA2120 UV Sensors, radiation safety detector
PMA2122 UV Sensors, Germicidal UV detector
Visible
PMA2121 Blue light safety detector
PMA2123 Bilirubin phototherapy detector
PMA2130 Visible Photopic
PMA2131 Visible Scotopic
PMA2132 Visible photosynthetically active radiation
PMA2133 Visible luminance probe
Photostability
PMA4100 CALReady Detectors
Infrared and Full Spectrum
PMA2140 IR and visible global radiometer
PMA2144 Solar Sensor class II Pyranometer
PMA2145 Solar Sensor class I Pyranometer
PMA2142-3 Full spectrum 3 watt laser power detector
PMA2142-10 Full spectrum 10 watt laser power detector
PMA2142-30 Full spectrum 30 watt laser power detector
PMA2143 Flat response Thermopile
Temperature
PMA2161K Thermistor surface temp. probe w/ interface
PMA2162K Thermistor miniature temp. probe w/ interface
PMA2163K Thermistor immersible temp. probe w/ interface
PMA2164K Thermistor S.S Air/Gas temp. probe w/ interface
PMA2165 J or K-type therocouple probe
PMA2170 Relative humidity, dewpoint & temp. probe
Custom Wavelength Detectors
PMA2180 Custom narrow band detector with specific filter
