Applications
Pre irradiation of PMMA plates
Features
Includes XPS 300 watt power supply
Reproduce UV and other spectra using Xenon short arc lamps
Standard and customizable simulators meet FDA, ISO, JCIA, Australian and COLIPA test protocols
Compatible with HD2 and HD6 PMMA plates
Optional filters allow for user changeable spectra
UV, Air Mass 0 and 1.5 spectra available
Round beam size of 3"
Beam uniformity across illuminated area better than 10% (16S)
High efficiency switching power supply with adjustable current for variable intensity
Internal electric shutter
Forced air cooling system
Available with precision dose control system
Specifications

Optional Spectra outputs:

Spectra of UV and Air Mass 1.5 available

Illuminated Area:

vertical, diameter 3 “ (7.5 cm)

Light Source:

Xenon 300 watt

Uniformity:

Complies with FDA and ISO recommendations

Lamp lifetime:

Approximately 900 hours

Weight:

7 lbs (3.2 kg)

Dimensions:

10.75 x 5.5 x 9.5 “ (27 x 14 x 24 cm)

Line Voltage:

120 - 220V, 1 Ph
50/60 Hz
Packages

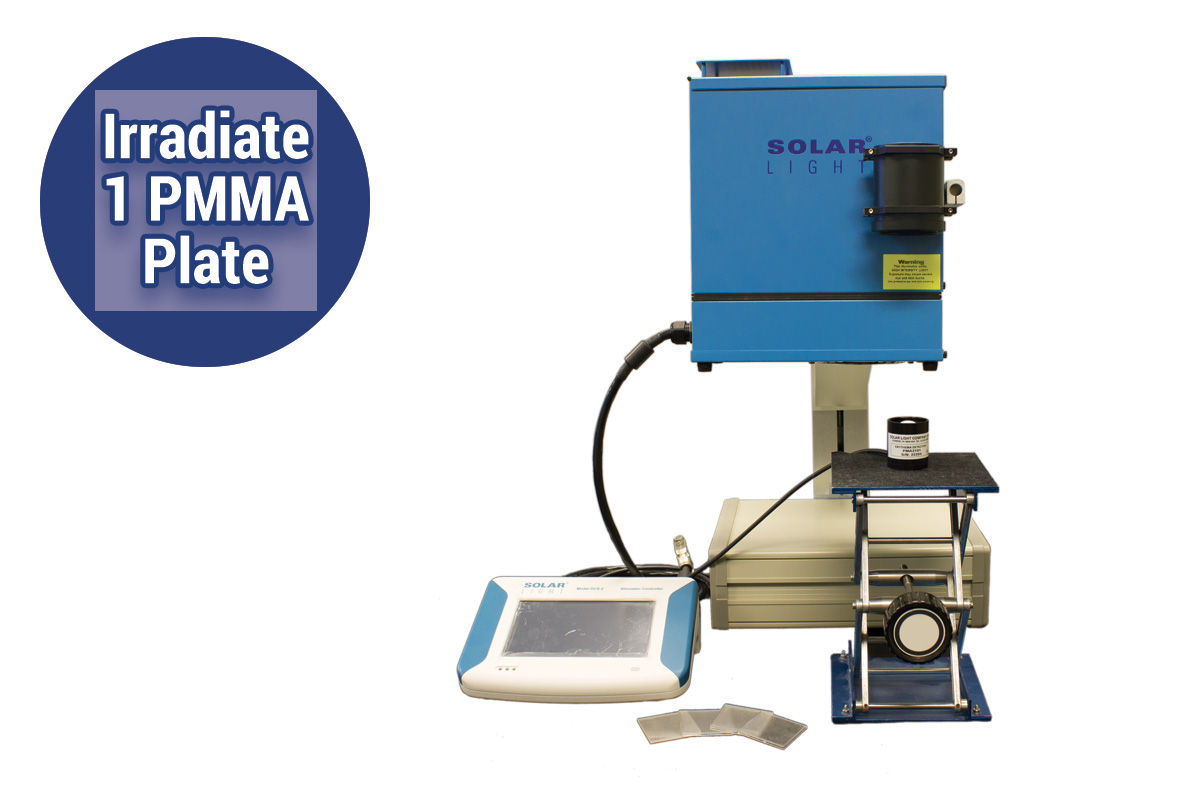

16S-300-009 Solar Simulator, irradiates a single PMMA plate, includes:

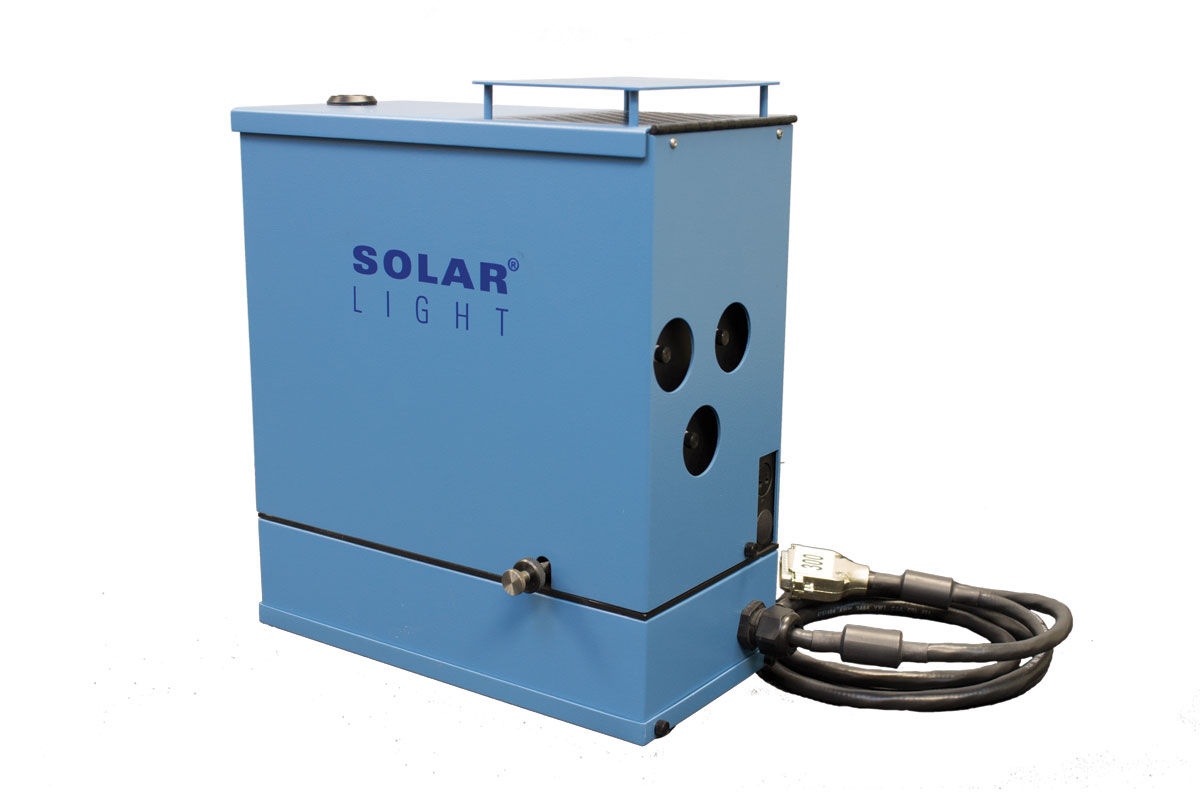

16S-300 UV Solar Simulator with 3" (7.5 cm) round vertical downward output

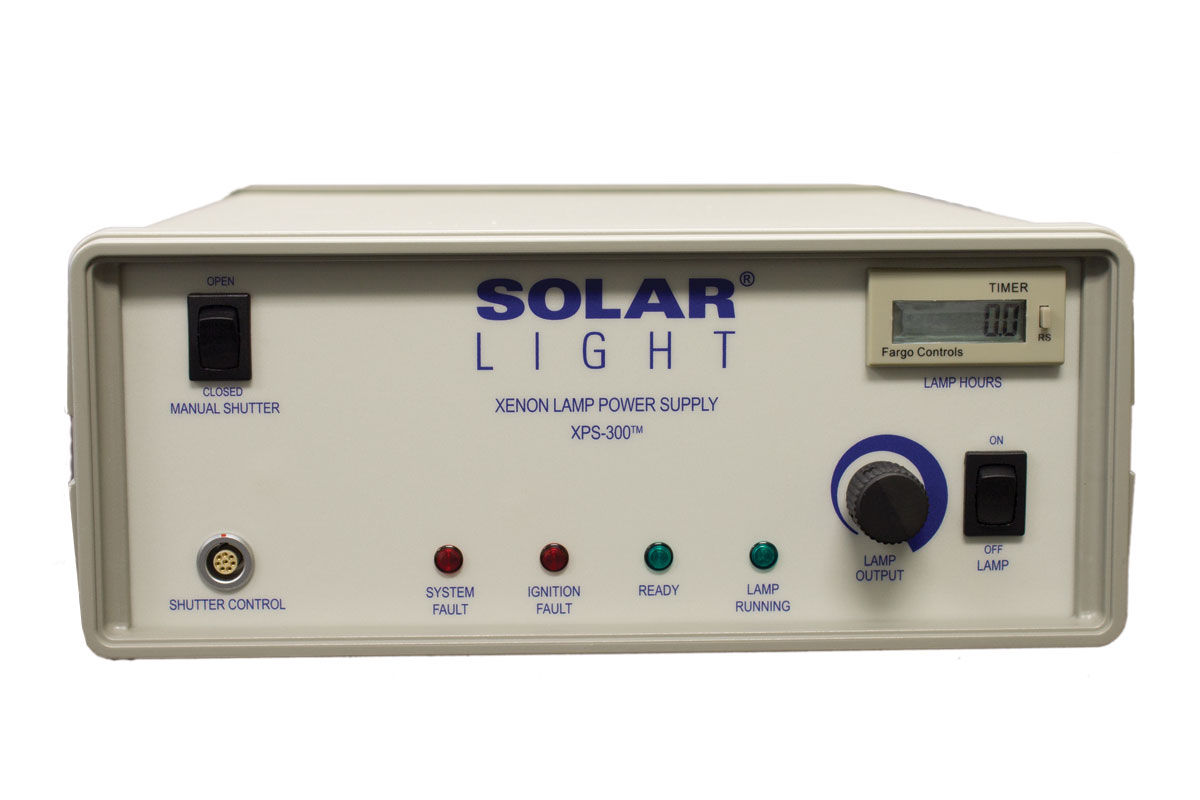

XPS300 Power Supply
PMA2100 Data Logging Radiometer

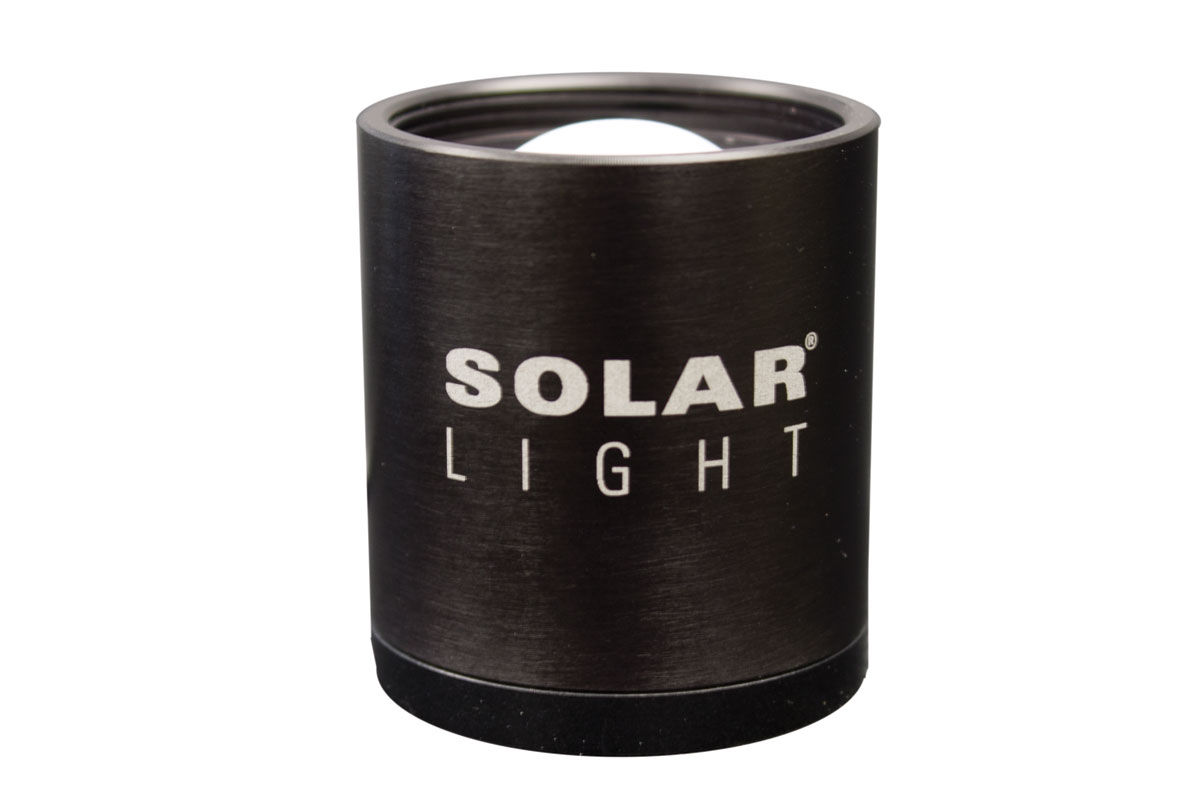

PMA2101 SUV Sensor
PMA2110 UVA Sensor (required to follow the COLIPA Method for in vitro determination of UVA protection, 2011)
Literature

• PRE-IRRADIATION SOLAR SIMULATOR 16S-300-009 Simulators_16S-300-009-LS1000-009.pdf

Downloads

• Download Our Brochure: Pre Irradiation Light Sources

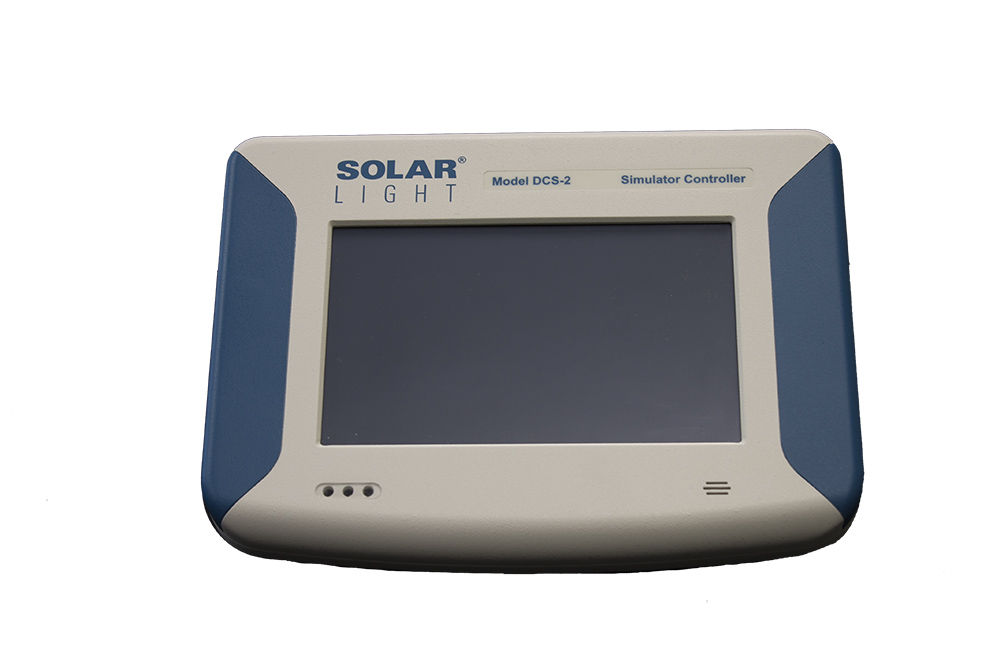

Dose Controller/Meter DCS 2.0
SPF and UVA Sunscreen Standards
Included Accessories
Required Accessories

1 year Standard Warranty
