Applications

Cosmetic companies  Biologists and physicists

Dermatologists  Forestry and marine laboratories

Testing laboratories Environmental agencies

Features

Battery Operated
LCD Display
Optional Six foot shielded extension cable for analog output

HOLD Toggle, freezes the present reading
AUTO SHUT OFF Meter turns off after 8 minutes with near zero reading

Rugged carrying case
BAT Low battery indicator

UVB Detector Specifications

Spectral response:

280 to 320 nm (see figure)

Cosine response:

0-60 degrees +/- 5%

Connector:

1/4" plug

Operating temperature:

-10 to +60°C

Weight:

1.6 oz. (45 grams)

3ddetsp

UVA Detector Specifications

Spectral response:

320 to 400nm (see figure)

Cosine response

0-60 degrees +/- 5%

Connector

0.141 " plug

Operating temperature:

-10 to +60°C

Weight:

1.2 oz. (34 grams)
Meter Specifications

Display LCD

31/2 digit

UVB (SUV) Readout range:

0...19.99 MED/Hr

UVA Readout range:

0...19.99 mW/cm2

Resolution: 0.01 MED/Hr or mW/cm2

Operating temperature

0 to +50°C

Operating environment laboratory/industrial Analog output:

0.1Volt/(MED/HR) or 0.1Volt/(mW/cm2)

Size:

3.75x5.5x3.4" (9.5x14x8.6cm)

Weight:

8 oz. (227 grams)

Power source:

9 volt alkaline battery
Literature

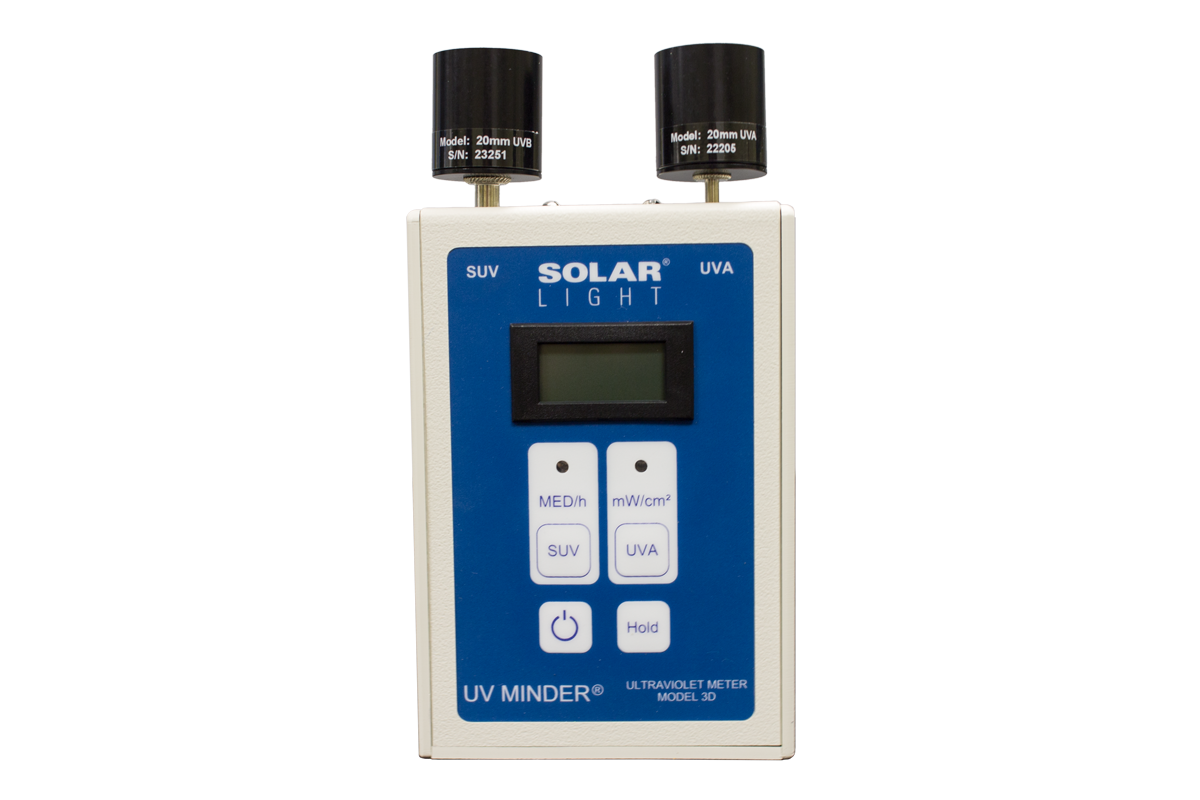

• UV MINDER® MODEL 3D UV METER Meters_Model-3D.pdf
UV MINDER® Model 3D-XP Xeroderma Erythemal UV Intensity Meter for measuring very low UV intensity to 3 decimal places. Please specify wavelength range required when ordering.

1 year Standard Warranty
