Plug-in Standards
Our standards of spectral irradiance are plug-in, pre-aligned irradiance standard for accurately calibrating our spectroradiometer systems equipped with an integrating sphere for spectral irradiance response. The “plug-in/pre-aligned” concept eliminates tedious and time consuming setup and alignment normally associated with spectroradiometric standards since they simply attach to the input port of the integrating sphere. The standards are provided with a machined, cylindrical cover to protect the lamp.
OVERVIEW

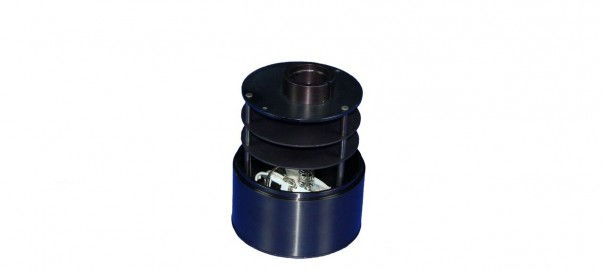

The OL 752-12 is calibrated for Spectral Irradiance over the wavelength range of 200 to 400 nm It uses a stable, 40-W deuterium lamp. When mounted in the plug-in/pre-aligned housing, the working distance is 10 cm. This short working distance generates considerably higher irradiance levels than that obtained with conventional ultraviolet irradiance standards.
Solar Light’s versatile NIST-Traceable PMA-Series Datalogging Radiometers / Photometers are designed for scientific professionals, offering unparalleled accuracy and flexible data management. These unit accepts over 85 different PMA21xx-Series sensors measuring UV, Visible, and IR wavelengths. Choose from the advanced Model PMA2100 Dual-Input Data Logging Radiometer or the standard Single-Input Model PMA2200.
