MICROTOPS II Sunphotometer, aerosol optical thickness measurement

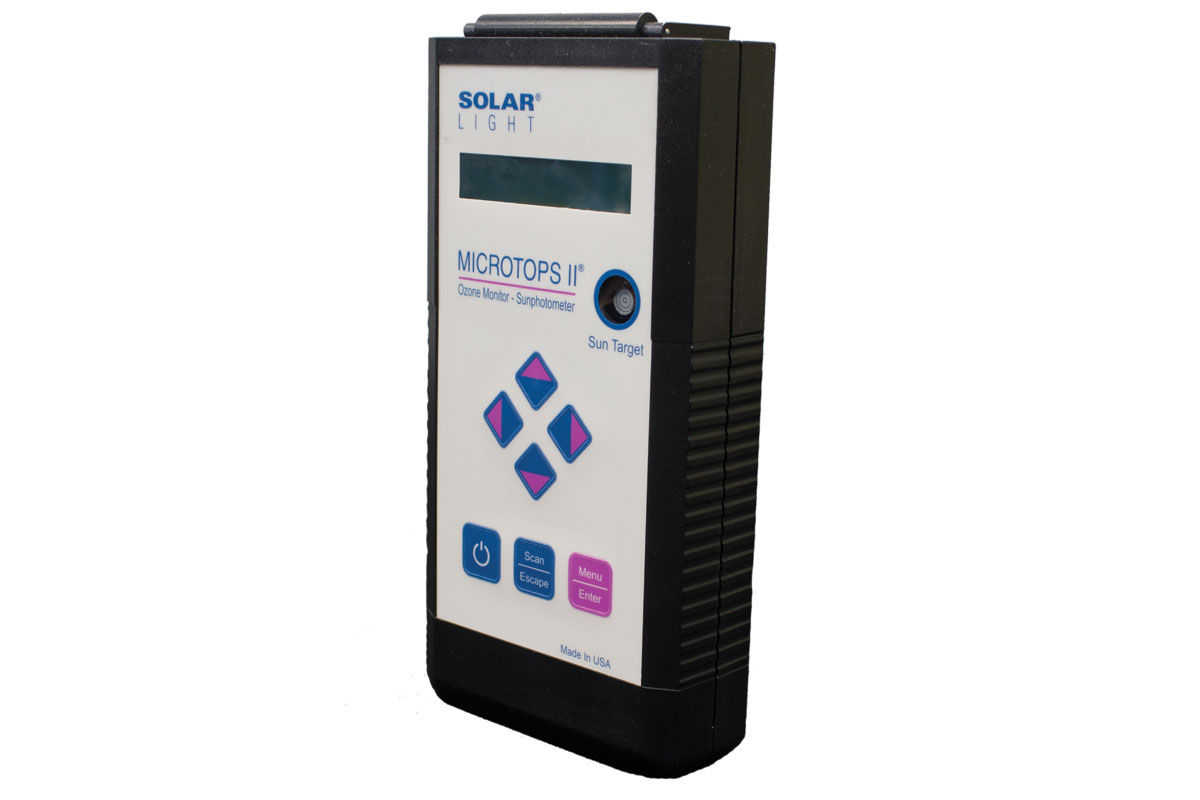

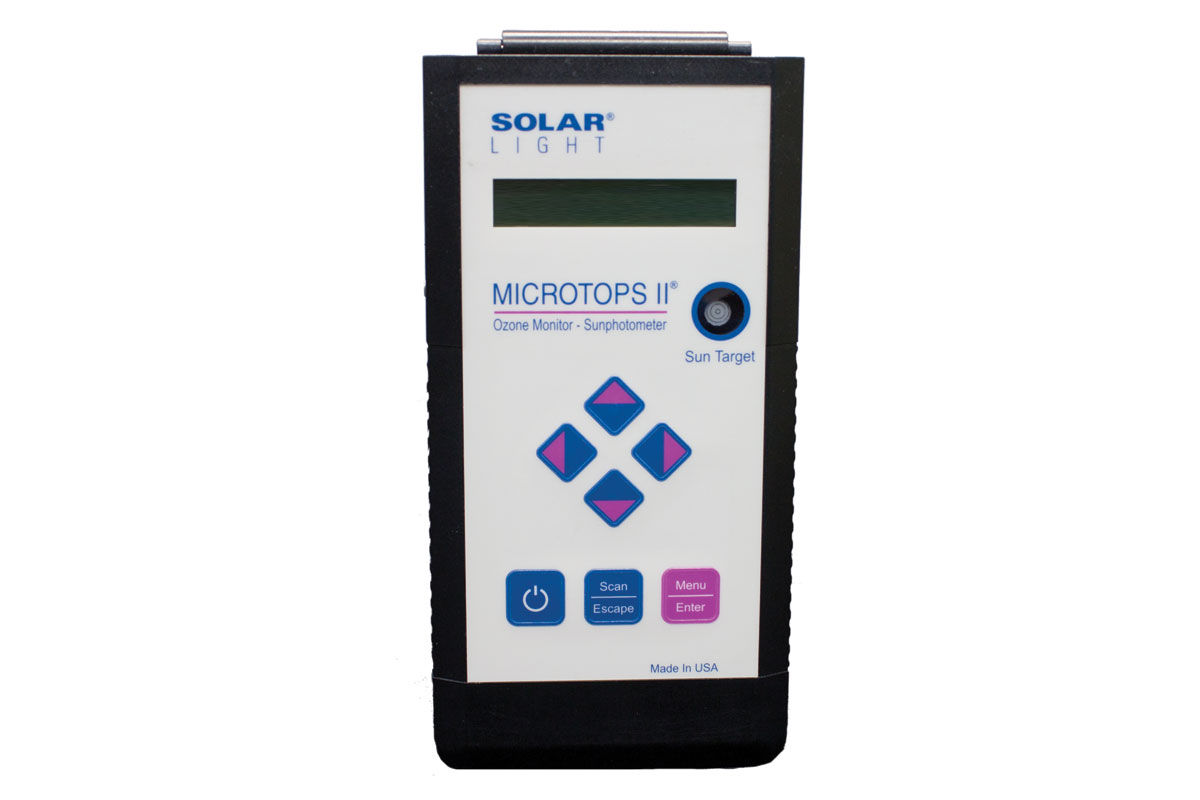

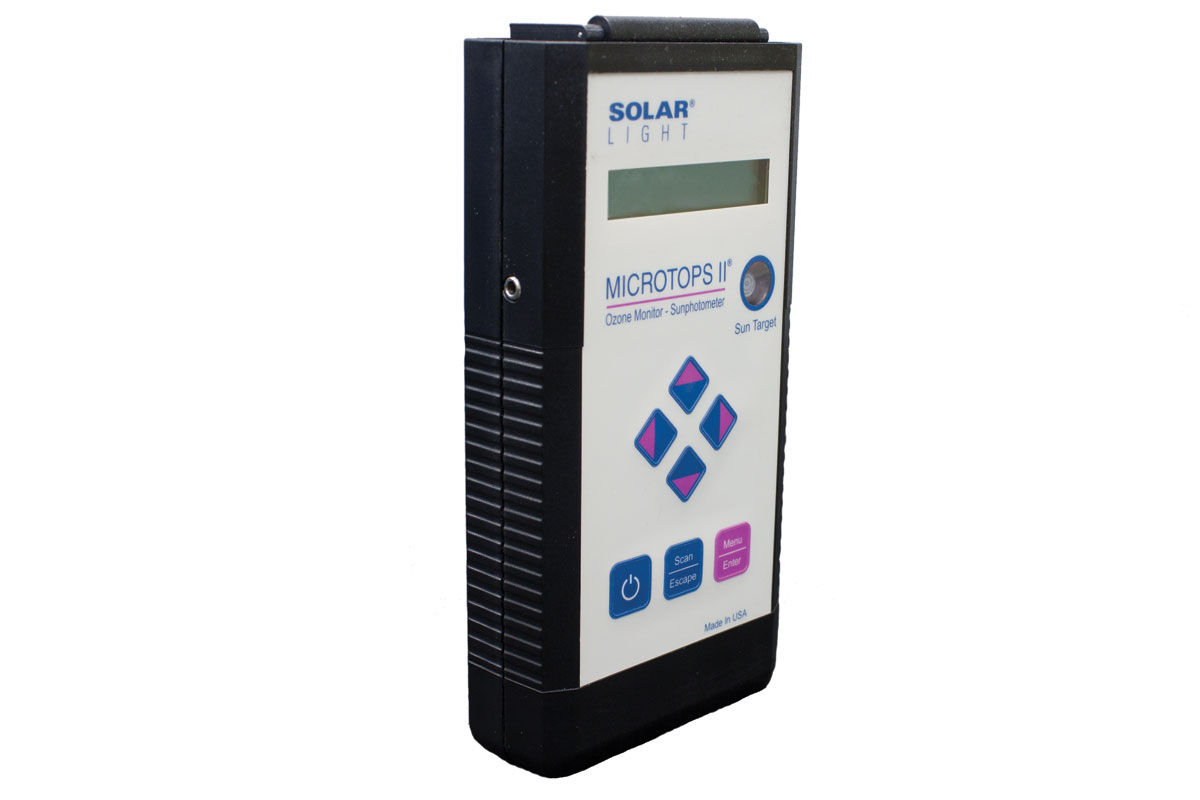

Model 540 Microtops II® Sunphotometer

Solar Light’s Model 540 Microtops II® Sunphotometer is a light weight, portable 5 channel instrument for measuring aerosol optical thickness, direct solar irradiance, and water vapor column easily, accurately and dependably.

GET A QUOTE

Description

Solar Light’s Model 540 Microtops II® Sunphotometer is a light weight, portable 5 channel instrument for measuring aerosol optical thickness, direct solar irradiance, and water vapor column easily, accurately and dependably. This multispectral instrument is designed to measure direct solar irradiance in five channels of selected wavelengths. It then uses this information to provide atmospheric properties, such as aerosol optical thickness and precipitable water vapor column. Standard wavelengths to choose from are 340nm, 380nm, 440nm, 500nm, 675nm, 870nm, 936nm, and 1020nm. If your research is focused in the longer wavelengths, then we recommend the 675nm, 870nm, 936nm or 1020nm filters. If your research requires water vapor column measurements, then we recommend either the 936nm and 1020nm pair or the 870nm and 936nm pair. The unit features agrees comparably with much larger and more expensive instruments.

To facilitate field operation, Solar Light offers many options for this model, including a rugged carrying case and Garmin GPS. If you prefer to research ozone only or ozone and water vapor column, please see our Microtops II® range of ozonometers.

0.4” (1 cm)

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (for all models - please specify at order)

This field can't be Empty

Xenon Short Arc (For All Models)

This field can't be Empty

150W (For All Models)

This field can't be Empty

±5% (For All Models)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

< ±2% rms

This field can't be Empty

B (IEC 60904-9 2007)<br> B (JIS C 8912)<br> B (ASTM E927 - 05)

This field can't be Empty

3” (7.6 cm)

This field can't be Empty

n/a

This field can't be Empty

Near Zero

This field can't be Empty

Factory Set Limit is 150 watts max

This field can't be Empty

32°F to 95°F / 0°C to 35°C

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

Forced air

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

21 oz. (600 grams)

This field can't be Empty

<ul> <li>Weather Stations</li> <li>Scientific and Educational Studies</li> <li> Pollution Monitoring</li> <li> Photobiology</li> <li> Environmental Monitoring</li> <li> Vicarious Calibration</li> <li> Irradiance-Based Calibration of Imaging Sensors</li> </ul>

This field can't be Empty

0.01W/cm² on 305nm Channel

This field can't be Empty

>300,000

This field can't be Empty

2.5°

This field can't be Empty

1-2%

This field can't be Empty

max 0.002% FS

This field can't be Empty

0 to 50°C

This field can't be Empty

RS232 / USB with Adapter

This field can't be Empty

4xAA Alkaline Batteries

This field can't be Empty

21 oz. (600 grams)

This field can't be Empty

4”W x 8”H x 1.7”D (10x20x4.3 cm)

This field can't be Empty

Brochure

Model 540 Microtops II® Sunphotometer Data Sheet

Quick Start Guide

Model 540 Microtops II® Sunphotometer Quick Start Guide

Microtops® Organizer Software

USB-RS232 Driver Software

Aeronet Maritime Aerosol Network (MAN)

A Comparison of the New Filter Ozonometer Microtops II® with Dobson and Brewer Spectrometers at Hohenpeissenberg

U. Kohler - Reprint from Geophysical Research Letters

Quadrennial Ozone Symposium Atmosphere Poster

Presented at Quadrennial Ozone Symposium Charlottesville, Virginia, USA June 4-13 1992 Daniel Berger, Marian Morys

Absolute Measurement and Modelization of 305.5 nm Direct Spectral Solar Radiation in Rosario, Argentina

Published in Spanish in "Avances en Energias Renovables y Medio Ambiente", Vol. 2, 11.53-11.56 (1998)

Ship-Based Sun Photometer Measurements Using Microtops II

Porter et al, Journal of Atmospheric and Oceanographic Technology, Vol. 18, 765-774, 2001

Guide to RealTerm Serial Communications Program for downloading Microtops Data

NERC UK Guides

SL-04183 Field Carrying Case

Solar Light Company offers a field carrying case with shoulder strap.

SL-05904 GPS Receiver

Solar Light Company offers a GPS receiver with GPS73H with data cable for Logistics Plus.

SL-08493 Tripod

Solar Light Company offers a tripod.

Microtops Organizer Software

Solar Light Company offers Microtops Organizer Software for Windows XP which is included with Microtops II.

SL-02248 Tripod Adapter

Solar Light Company offers a tripod adapter.

SL-02778 Serial Cable

Solar Light Company offers a serial cable, DB9 to 1/8" which is standard with Microtops. Online purchases for domestic...

$80.00

SL-05903 GPS Data Cable

The SL-05903 GPS Data Cable can be used as a spare or replacement cable for use with late model...

$120.00

SL-03628 Alkaline Battery

Solar Light Company offers an industrial AA Alkaline battery.

SL-07310 USB Cable

Solar Light Company offers a serial cable, DB9 to USB, which is standard with Microtops.
