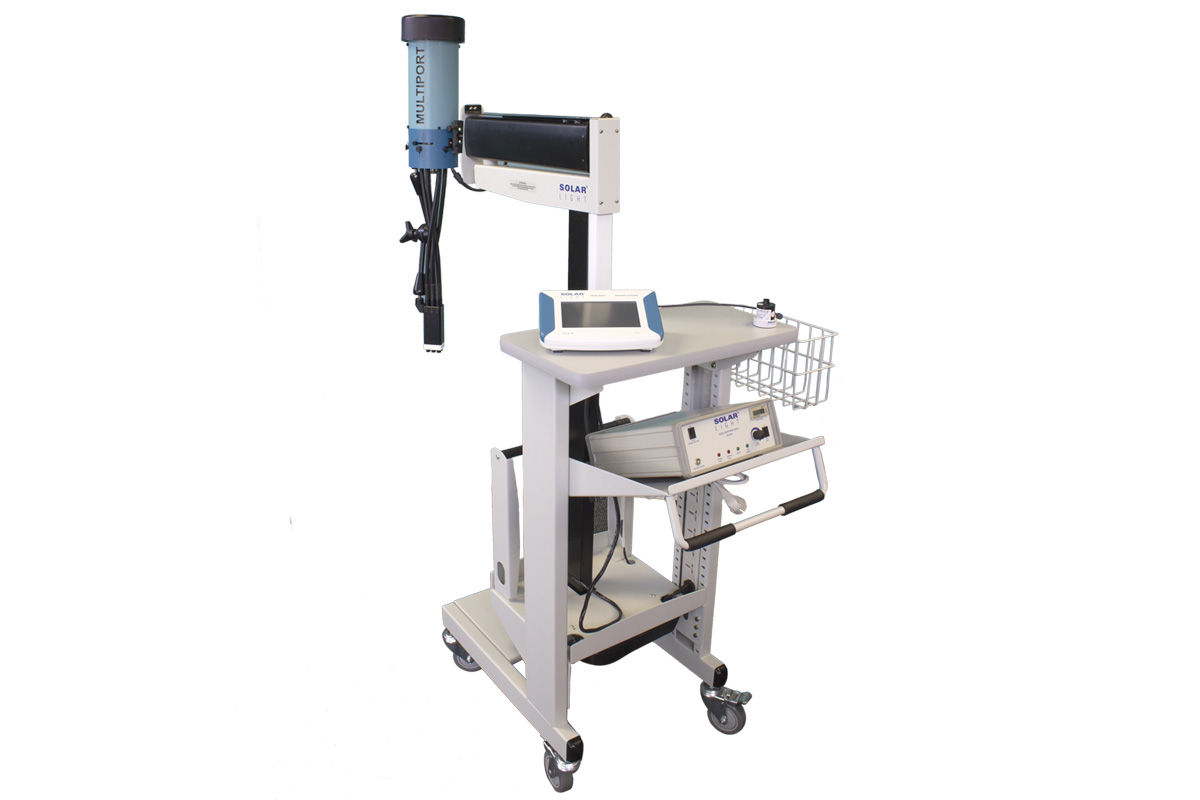

Model 601 Multiport® SPF Testing 6 Output Solar Simulator

Solar Light’s advanced Model 601 Multiport® SPF Testing Solar Simulator is the industry standard for high throughput SPF testing and dermatological studies. It produces UVA or UVA+B (290-400nm) from its 6 individual 8mm square outputs, each of which can be controlled separately. Up to 6 tests can be performed simultaneously in a short period of time, dramatically increasing lab productivity. The 601 is fully compliant with the latest ISO, FDA, JCIA, and COLIPA spectral irradiance standards.

GET A QUOTE

Description

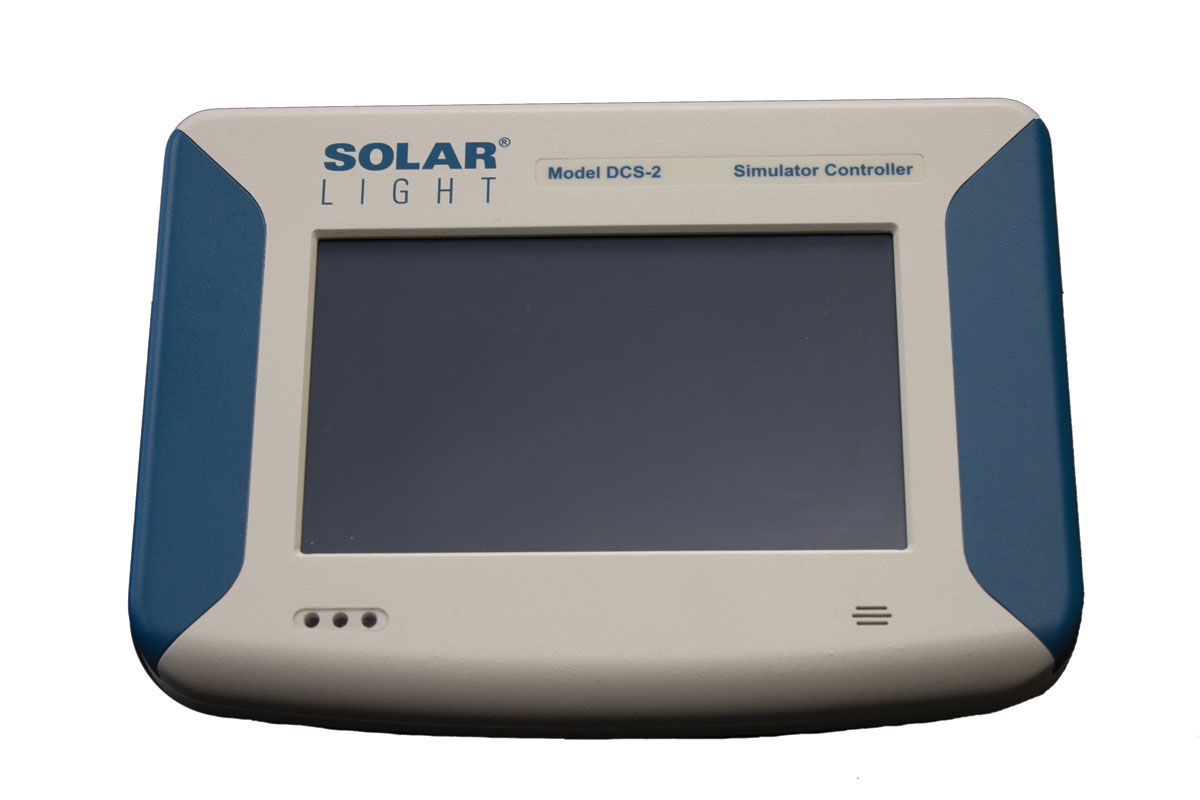

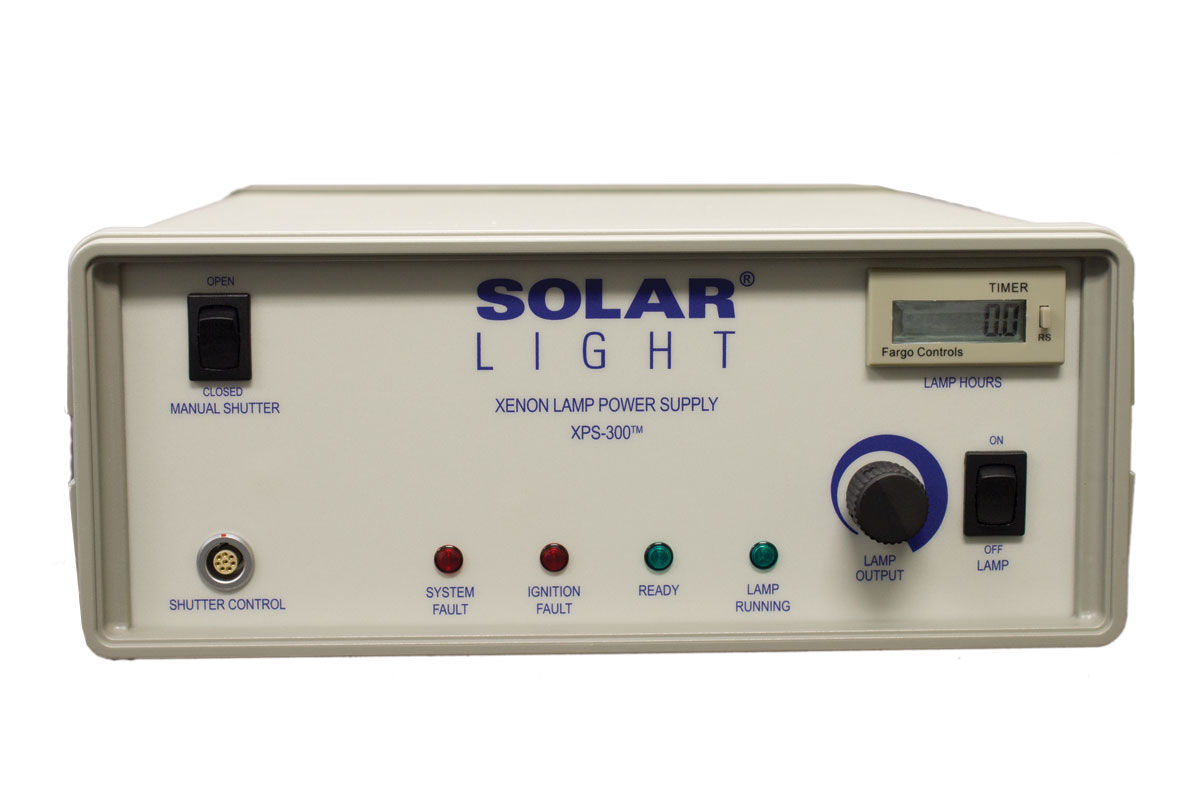

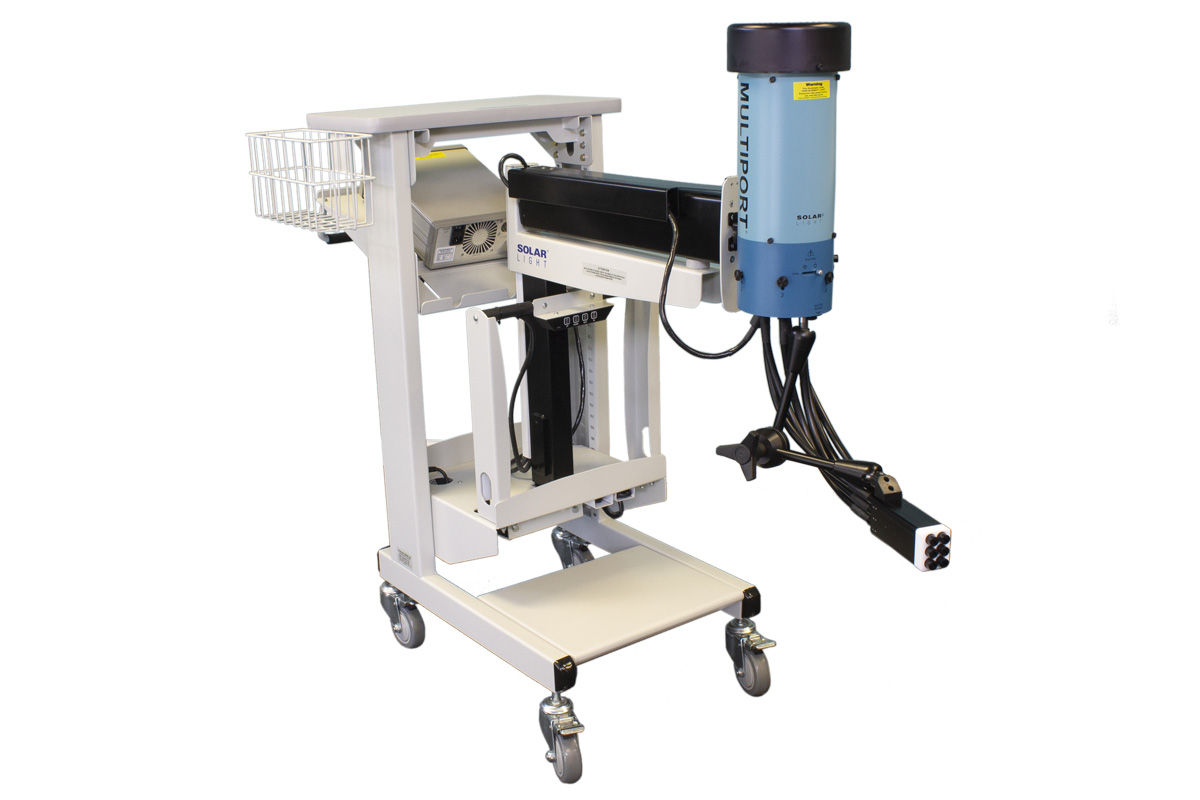

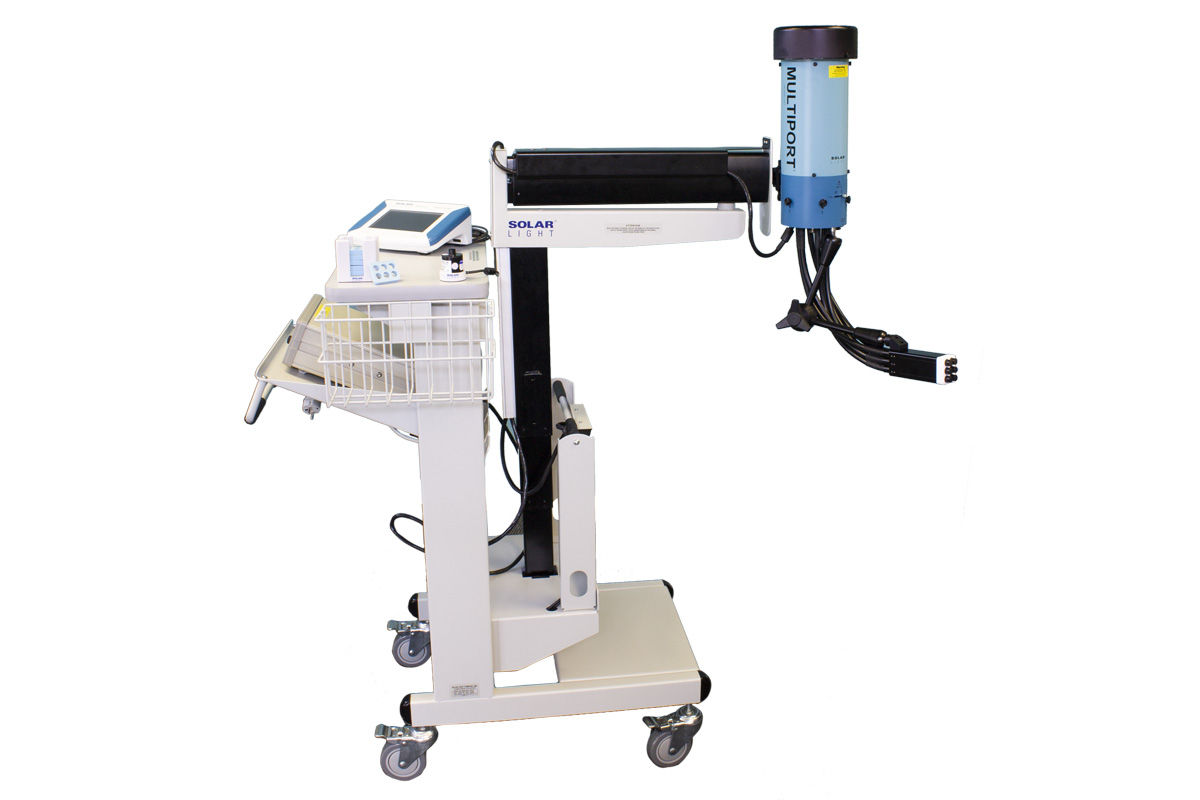

Solar Light’s advanced Model 601 Multiport® SPF Testing Solar Simulator is the industry standard for high throughput SPF testing and dermatological studies. It produces UVA or UVA+B (290-400nm) from its 6 individual 8mm square outputs, each of which can be controlled separately. Up to 6 tests can be performed simultaneously in a short period of time, dramatically increasing lab productivity. The output intensity is rated up to 4 MEDs per minute, and can be controlled by the adjustment knobs on each port, as well as via the included XPS-300 power supply. The output is approximately 20 times the intensity of the sun, and simulates the ultraviolet spectrum of the sun with over 90% homogeneity. A built-in locking Articulation Arm assures precise light guide placement on subjects. Solar Light Solar Simulators are used in 95% of SPF testing laboratories globally, and meet the latest ISO, FDA, JCIA, and COLIPA spectral irradiance standards. Everything required to begin testing is included with the 601 Multiport®: The 6-Port Simulator, DCS-2 Automated Dose Controller, NIST-Traceable PMA-Series SUV and UVA Sensors, Safety Glasses, and a starter pack of 100 disposable Hypoallergenic Placement Pads. An optional Point of Service Cart for the 601 Multiport® is available with 2 dimensional electronic actuators to allow accurate placement of the light guides, and includes a fixture to carry the power supply, a stand for the radiometer, and a desktop for note taking as shown.

U.S. Pat. 7,657,147

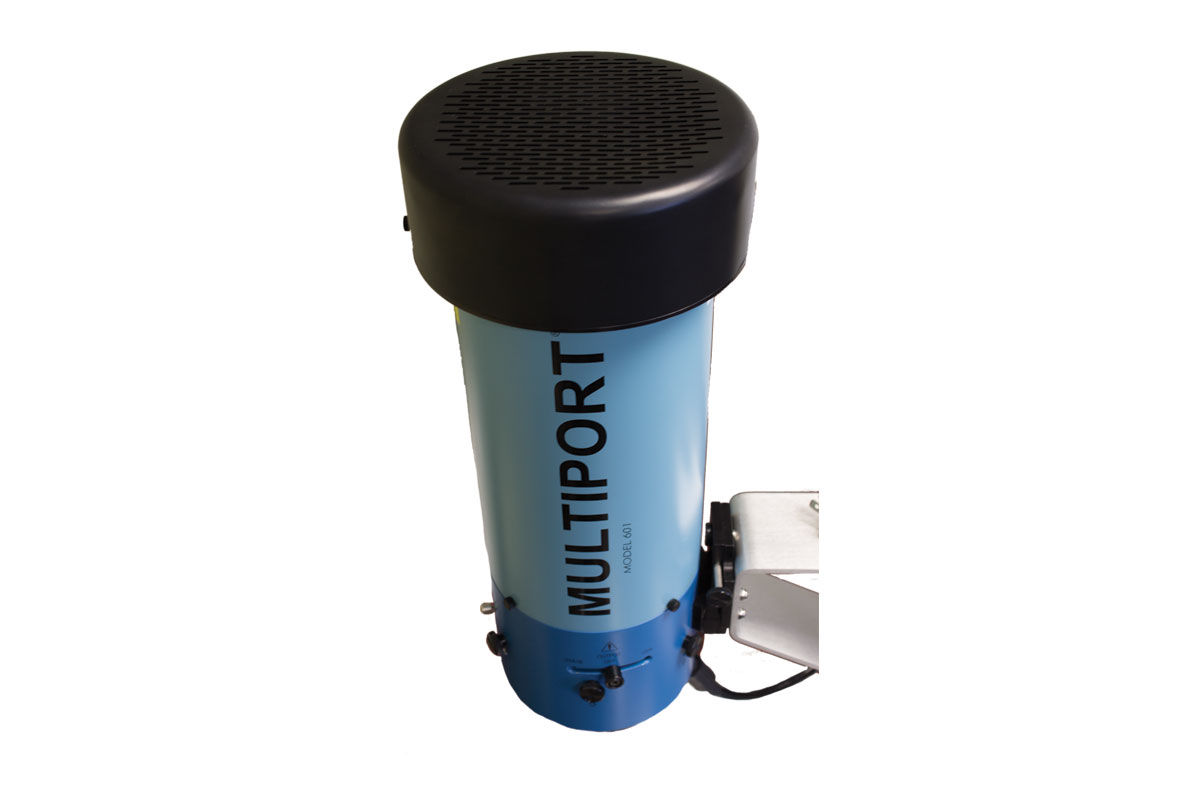

The model 601 Multiport® Solar Simulator precisely reproduces the solar ultraviolet spectrum while eliminating the visible and infrared light. This results in UV levels 15-20 times stronger than tropical sun without the thermal portion. Its 6 independently adjustable outputs allow for 6 tests to be conducted simultaneously, greatly reducing testing time.

This field can't be Empty

Follows the Distribution of Sunlight from 290 to 400nm

This field can't be Empty

290-400nm

This field can't be Empty

300W Xenon Short Arc

This field can't be Empty

6 x 8mm

This field can't be Empty

110 or 220VAC, 50/60Hz

This field can't be Empty

Validated to the International Sun Protection Factor Test Method Standard 2003

This field can't be Empty

Igniter is used to ignite the xenon arc lamp

This field can't be Empty

Xenon Lamp

This field can't be Empty

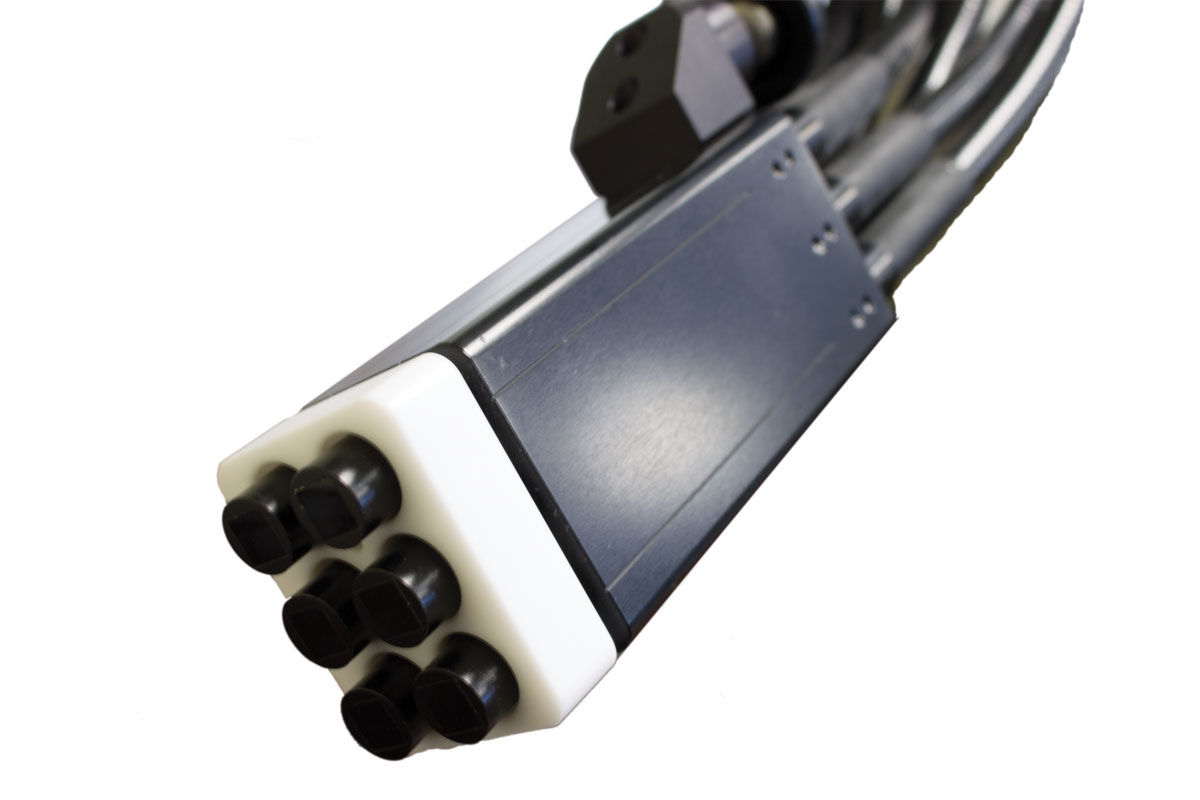

Six liquid light guides each 19.7" (50cm) long

This field can't be Empty

To choose between UV-A only and UV-A + UV-B spectrum

This field can't be Empty

Allowing 20" (50cm) vertical adjustment

This field can't be Empty

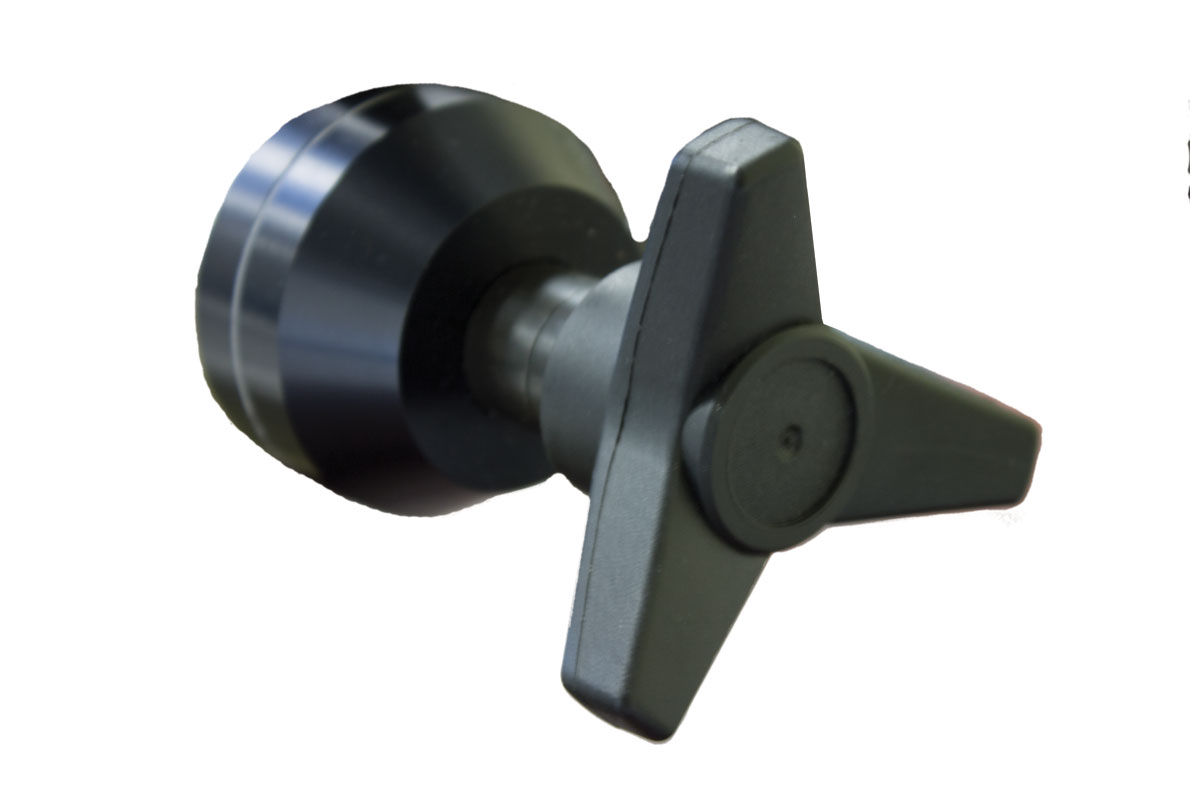

For holding Liquid Light Guides firmly in position during tests

This field can't be Empty

For collimation and uniformity

This field can't be Empty

0-50°C (32 to 120 °F)

This field can't be Empty

21.8” (55cm) long without liquid light guides; 39” (99cm) long with liquid light guides.

This field can't be Empty

8 mm

This field can't be Empty

11lbs. (5.0kg)

This field can't be Empty

<ul> <li>Model 601 v2.5 Simulator for ISO24442 and ISO24444, FDA, COLIPA, and JCIA Compliance</li> <li>6x 8mm light guides with square ports and >90% homogeneity</li> <li>XPS-300 300W Power Supply</li> <li>Column and Carriage – 50 cm length with 23 cm Travel</li> <li>Built-In Articulating Arm for precise pad placement</li> <li>Validation and Certification Report for Compliance to Standards </li> <li><a href="https://solarlight.com/product/dose-controllermeter-dcs-2-0/">DCS-2 Automatic Dose Controller</a></li> <li>PMA2108 Sunburn UV Sensor</li> <li>PMA2118 UVA Sensor</li> <li><a href="https://solarlight.com/product/sl-05693-light-safety-glasses/">UV Safety Glasses (Light)</a></li> <li><a href="https://solarlight.com/product/sl-06392-disposable-medical-grade-pads-skin-contact/">Pack of 100 Disposable Hypoallergenic Pads for Skin Contact</a></li> </ul>

This field can't be Empty

0.4” (1 cm)

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (for all models - please specify at order)

This field can't be Empty

Xenon Short Arc (For All Models)

This field can't be Empty

150W (For All Models)

This field can't be Empty

±5% (For All Models)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

< ±2% rms

This field can't be Empty

B (IEC 60904-9 2007)<br> B (JIS C 8912)<br> B (ASTM E927 - 05)

This field can't be Empty

3” (7.6 cm)

This field can't be Empty

n/a

This field can't be Empty

Near Zero

This field can't be Empty

Factory Set Limit is 150 watts max

This field can't be Empty

32°F to 95°F / 0°C to 35°C

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

Forced air

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

11lbs. (5.0kg)

This field can't be Empty
