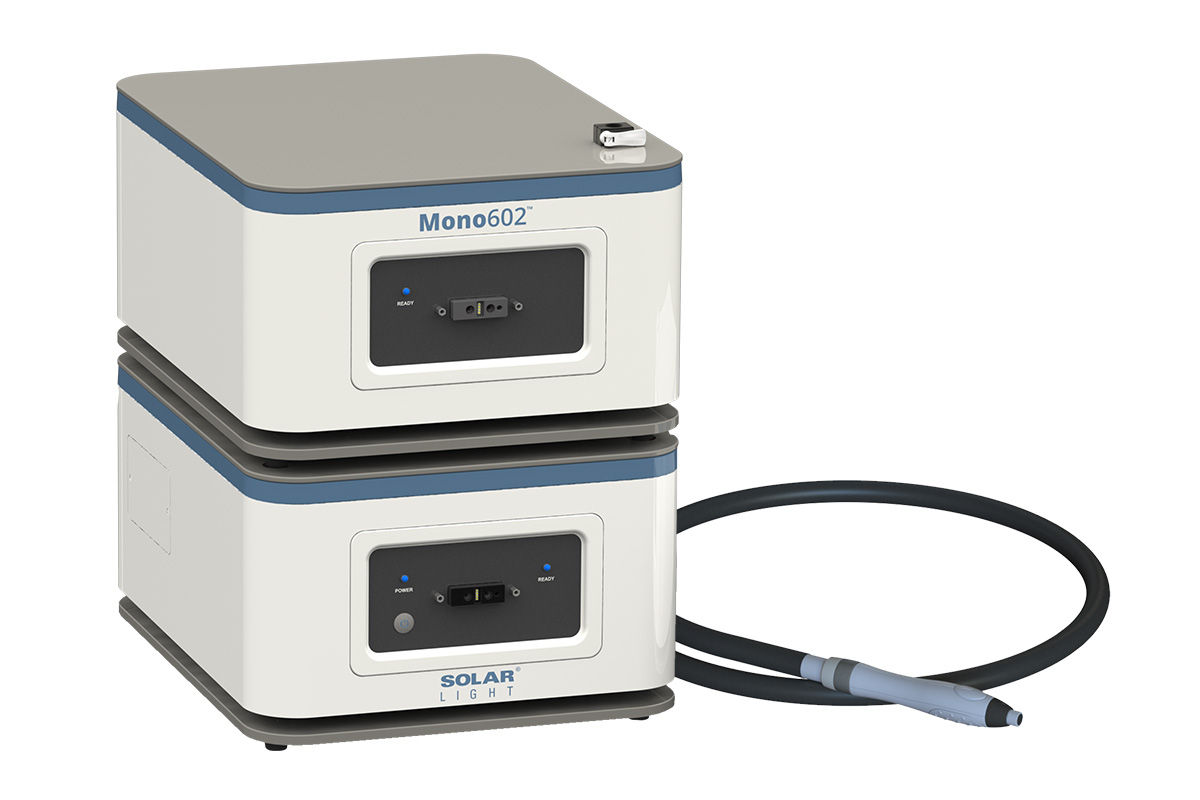

Mono602™

Solar Light has developed the fastest performing DRS instruments on the market, keeping product research, formulation and clinical testing in mind. HDRSplus™ software is designed specifically for a clinical testing laboratory environment and simplifies all HDRS calculations.

Description

Hybrid Diffuse Reflectance Spectroscopy (HDRS) non-invasive SPF methods, in accordance with the ISO/DIS 23698 proposed standard, are currently being evaluated as an alternative to in vivo SPF testing to provide UVAPF and SPF values while eliminating the ethical and safety considerations present with current erythema in vivo test methods. Solar Light has developed this disruptive technology to augment its own technology used in the industry for the past 50 years. This new technology can be used today as an in vivo screening tool for development purposes.

As the Global Leader providing the current gold standard for SPF measurements today, Solar Light has developed the fastest performing DRS instruments on the market, keeping product research, formulation and clinical testing in mind. HDRSplus™ software is designed specifically for a clinical testing laboratory environment and simplifies all HDRS calculations.

Applications

  • ISO/DIS 23698 Proposed SPF Measurement Standard
  • Formulation Screening for Clinical Testing for Static, WR SPF and UVAPF
  • Spreading Analysis Used for Technician Training

Features

    • Fast SPF and UVAPF Results
    • Typical 30 Seconds per Measurement
    • Easy SPF & In Vitro Data Handling & Results
    • Integrated Data Processing System, Automated Computations and Data Reporting
    • Non-Invasive (No Skin Erythema)
    • Monochromatic Measurements from 290nm – 400nm
    • UVA Spectral Absorption Curves for Each Sample
    • Total Energy is Below the International UV Safety Measurement Threshold Minimums and Does Not Require Technician or Subject Safeguards
    • Subjects May Participate in a HDRS Test Once Per 7 Days
    • Laptop and HDRSplus™ Software Included
    • Visual Indicator for System Ready and Measurement Status
    • Small Footprint to Minimize Bench Space

Our state of the art single output 16S- Series Solar Simulators produce solar UV radiation in the 290-400nm range, and can be quickly and easily configured by the user to provide UVA only, UVB only, UVA+B, or full spectrum sunlight optionally.

This field can't be Empty

0.4” (1 cm)

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (for all models - please specify at order)

This field can't be Empty

Xenon Short Arc (For All Models)

This field can't be Empty

150W (For All Models)

This field can't be Empty

±5% (For All Models)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

< ±2% rms

This field can't be Empty

B (IEC 60904-9 2007)<br> B (JIS C 8912)<br> B (ASTM E927 - 05)

This field can't be Empty

3” (7.6 cm)

This field can't be Empty

n/a

This field can't be Empty

Near Zero

This field can't be Empty

Factory Set Limit is 150 watts max

This field can't be Empty

32°F to 95°F / 0°C to 35°C

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

Forced air

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

Mono602™ Monochromatic DRS
