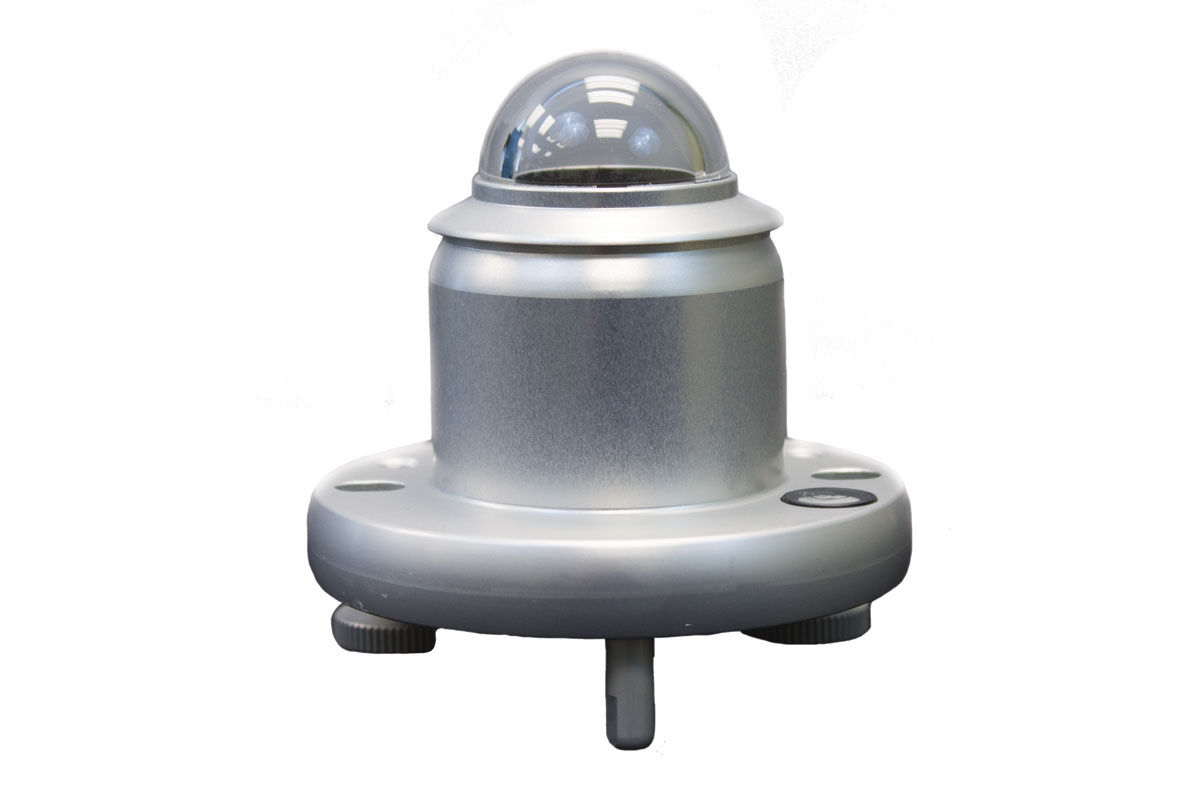

Model PMA2144 Digital Class II Pyranometer

Solar Light’s ISO-Classified Digital Class I and Class II Pyranometers measure global hemispherical radiation from 300 to 2800nm. They utilize thermopile technology, assuring very broad spectral sensitivity, exceptional flatness, and excellent good long term stability.

Compare

Description

Print Friendly, PDF & Email

Solar Light’s ISO-Classified Digital Class I and Class II Pyranometers measure global hemispherical radiation from 300 to 2800nm. They utilize thermopile technology, assuring very broad spectral sensitivity, exceptional flatness, and excellent good long term stability. These pyranometers feature a sixty-four thermocouple junction sensing element. The sensing element is coated with a highly stable carbon-based non-organic layer, which delivers excellent spectral absorption characteristics. The sensing element is housed under a single glass dome. The precision optical glass dome acts as a filter, with spectral bandpass that permits the full solar spectrum to pass through to the sensor. The glass dome also protects the sensor from the elements. The sensor is a high quality blackened thermopile. Heating of the sensor by incoming solar radiation produces a signal in the µvolt range. Each pyranometer has its own calibration factor. Along with the processing algorithm, it is programmed into a memory chip embedded into the sensor.

The primary technical differences between the ISO-Classified Class I Model PMA2145 and the ISO-Classified Class II Model PMA2144 are as follows:

Technical Details PMA2144 PMA2145
Non-linearity (100 to 1000 W/m2) <1.5% <1%
Spectral Range (50% points) 300 to 2800nm 285 to 2800nm
Temperature Response <5% (-10°C to +40°C) <4% (-10°C to +40°C)
Accuracy of Bubble Level <0.2° <0.1°

  • Meteorology
  • Agriculture
  • Solar Power Research and Testing
  • Heating and Air Conditioning
  • Lighting
  • Physics and Optical Laboratories

This field can't be Empty

This field can't be Empty

This field can't be Empty

2000 [W/m²] or 200 [mW/cm²]

This field can't be Empty

1 [W/m²] or 0.1 [mW/cm²]

This field can't be Empty

-40 to 175°F (-40 to +80°C)

This field can't be Empty

<5% (-10 to +40°C)

This field can't be Empty

*See Cable Length Chart in Brochure

This field can't be Empty

*See Outline Drawings in Brochure

This field can't be Empty

Brochure

Infrared and Full Spectrum SENSOR PMA2144 class II Pyranometer
