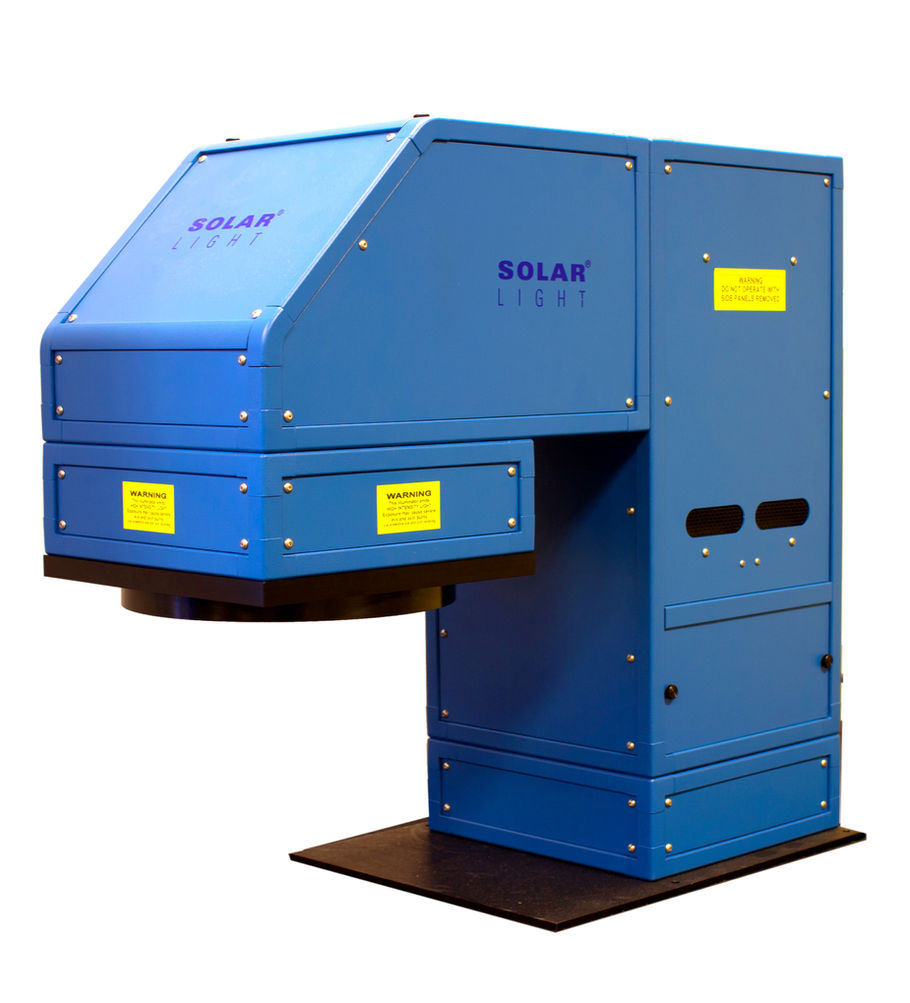

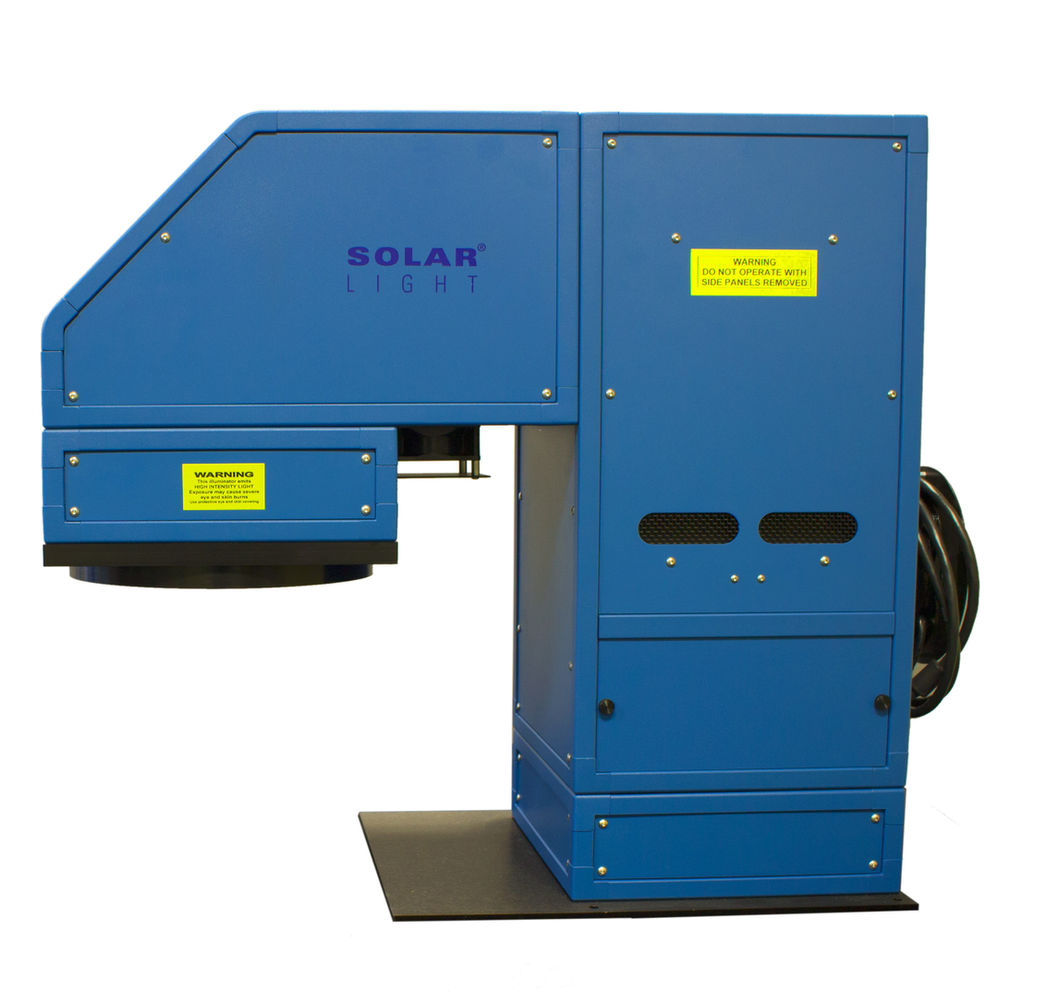

6″ (15.25 cm) 1000W Pre-Irradiation Solar Simulator Model LS1000-6S-009

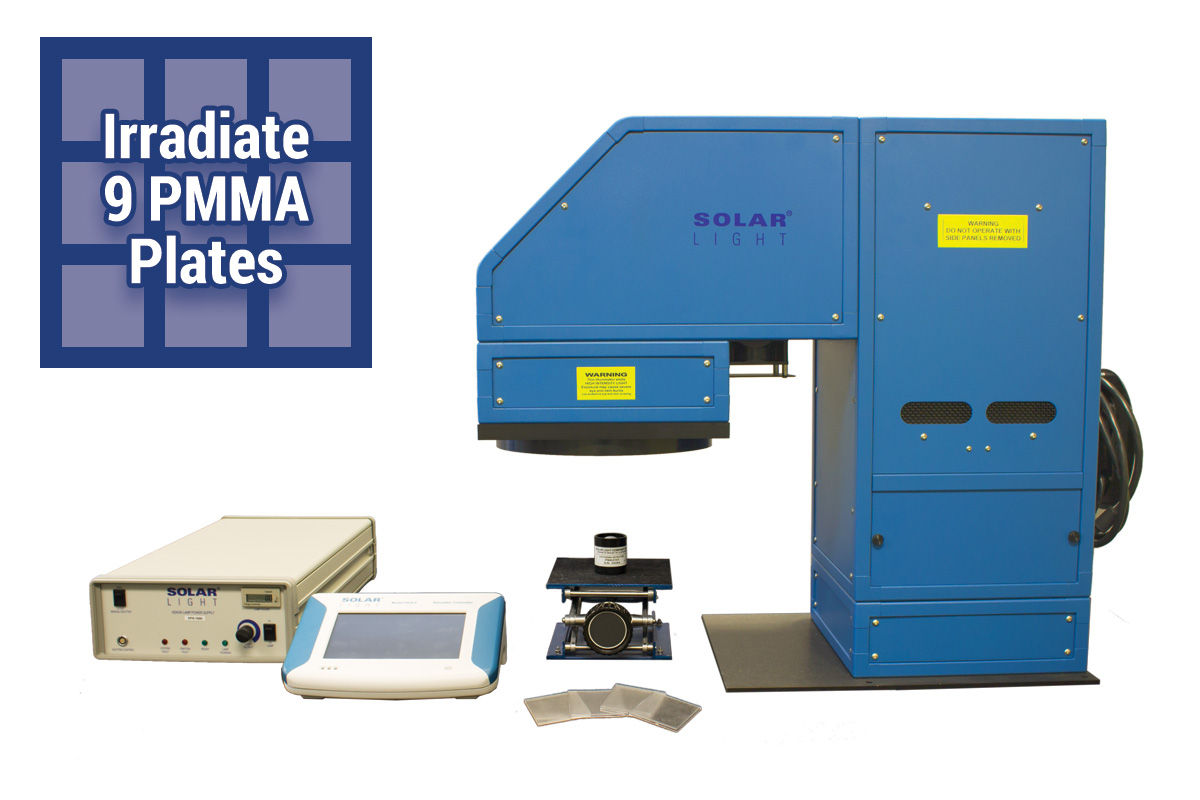

1000W Pre-Irradiation Solar Simulator Kit specifically designed for the pre-irradiation step during in vitro broad spectrum sunscreen testing. Fully compliant with the most current FDA and ISO requirements. The 6″ (15.25 cm) Class A beam can irradiate up to 9 PMMA plates simultaneously.

GET A QUOTE

Description

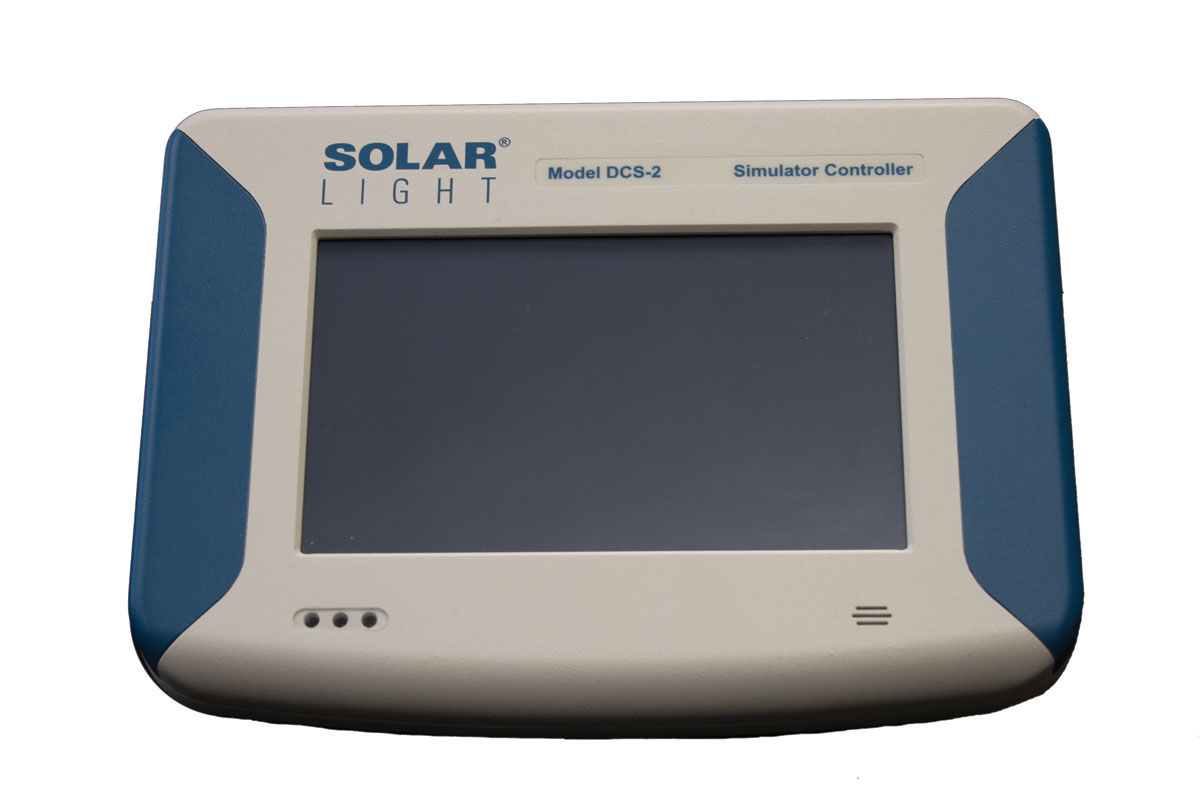

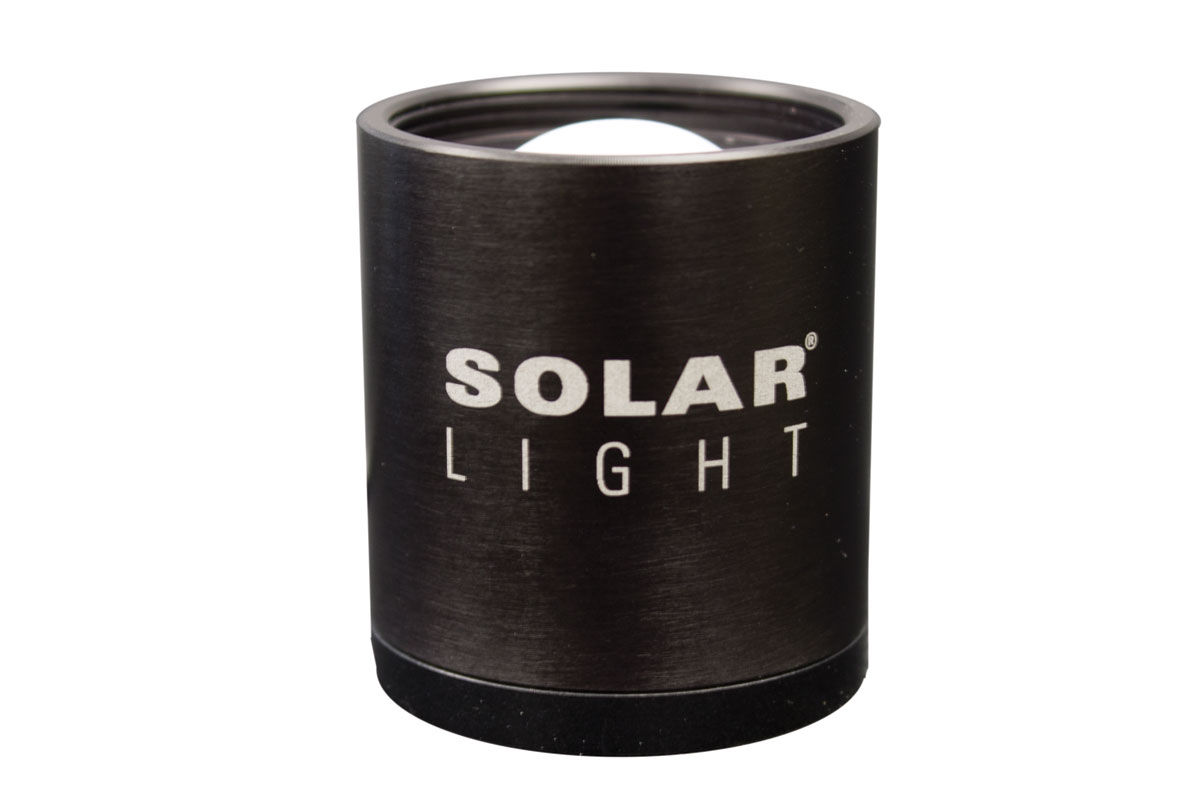

Solar Light’s state of the art single output LS1000-6S-009 Pre-Irradiation Solar Simulator Kit produces solar UV radiation in the 290-400nm range, and can be quickly and easily configured by the user to provide UVA only, UVB only, UVA+B, or full spectrum sunlight optionally. This precision research-grade hardware is specifically designed for the pre-irradiation step during in vitro broad spectrum sunscreen testing, and is fully compliant with the most current FDA and ISO requirements. The 4″ (10 cm) Class A beam can irradiate up to 9 PMMA plates simultaneously. Everything required for instant testing right out of the crate is included direct from the factory: 1000W Solar Simulator, DCS-2 Dose Controller / Radiometer, NIST-traceable PMA-Series Erythema and UVA Sensors, molded or sandblasted PMMA Plates, and all related accessories!

Pre-irradiation of PMMA plates during in vitro broad spectrum sunscreen testing

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (please specify at order)

This field can't be Empty

±10%

This field can't be Empty

N/A

This field can't be Empty

Forced air

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

Xenon Short Arc

This field can't be Empty

300W

This field can't be Empty

< ±2% rms

This field can't be Empty

Near Zero

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

32°F to 95°F / 0°C to +35°C

This field can't be Empty

3” (7.5 cm) Round

This field can't be Empty

Factory Set Limit is 320 watts

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

10.5 lbs. (4.8 kg.)

This field can't be Empty

~18” (46 cm)

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

B (IEC 60904-9 2007)<br> B (JIS C 8912)<br> B (ASTM E927 - 05)

This field can't be Empty

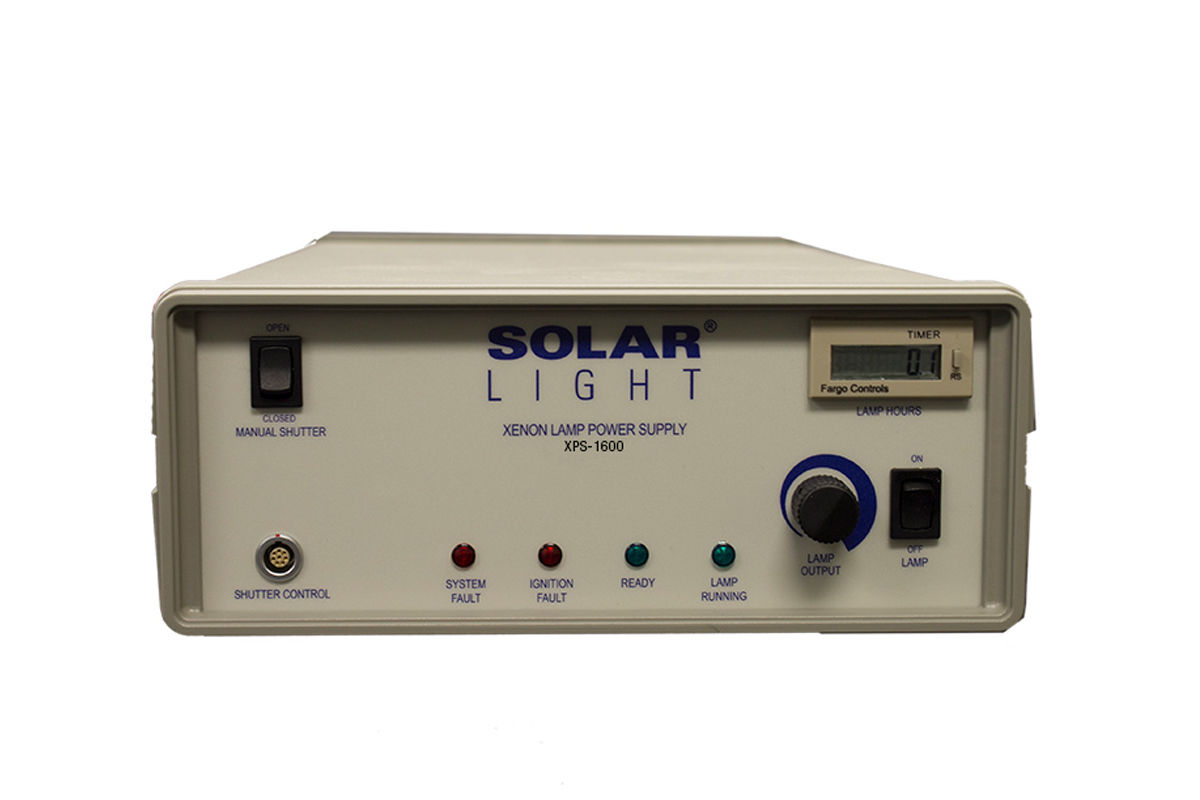

<ul> <li><a href="https://solarlight.com/product_category/solar-simulators/ls1000-series-uv-simulators/">LS1000-6R-UV Solar Simulator with 6” (15.25 cm) vertical output</a></li> <li><a href="https://solarlight.com/product/xps-1600-xenon-lamp-power-supply/">XPS-1600 Power Supply</a></li> <li><a href="https://solarlight.com/product/dose-controllermeter-dcs-2-0/">DCS-2 Automatic Dose Controller</a></li> <li><a href="https://solarlight.com/product/uvb-sensor-pma-2101-biologically-weighted-erythema/">PMA2101S-UVS Biologically Weighted UVB Sensor</a></li> <li><a href="https://solarlight.com/product/pma-2110-uva-sensor/">PMA2110-UVS UVA Sensor</a></li> <li><a href="https://solarlight.com/product/sl-05693-light-safety-glasses/">UV Safety Glasses (Light)</a></li> </ul>

This field can't be Empty

6” (15 cm) Square

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (please specify at order)

This field can't be Empty

Xenon Short Arc (For All Models)

This field can't be Empty

150W (For All Models)

This field can't be Empty

±5% (For All Models)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

< ±2% rms

This field can't be Empty

B (IEC 60904-9 2007)<br> B (JIS C 8912)<br> B (ASTM E927 - 05)

This field can't be Empty

3” (7.6 cm)

This field can't be Empty

n/a

This field can't be Empty

Near Zero

This field can't be Empty

Factory Set Limit is 150 watts max

This field can't be Empty

32°F to 95°F / 0°C to +35°C

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

Forced air

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

45 lbs. (20.5 kg.)

This field can't be Empty

Literature

PRE-IRRADIATION SOLAR SIMULATOR • LS1000-009 LITERATURE

8-5103 Sandblasted PMMA Plates

Solar Light's Sandblasted PMMA plates are of the highest quality in the industry. Ra=5 micron surface per ISO. Sold...

SL-05693 Light Safety Glasses

Solar Light offers safety glasses in various styles to suit research and testing environments using solar simulators.

8-5015 Syringes with Tips

Solar Light Company offers disposable syringes with tips that hold up to 1 ml.

Laboratory Scissor Jack

Solar Light Company's laboratory scissor jack has a 5.5” X 5.5” (14 cm X 14 cm) surface area and...

8-5016 Precision Positive Displacement Pipetter

Solar Light Company offers precision positive displacement pipetter which requires tips.

8-5105 Molded PMMA Plates

Solar Lights Molded PMMA Plates are the highest quality in the industry. Ra=5 micron surface per ISO, Sa=6 micron, 50.3mm...

8-5017 Disposable Positive Displacement Pipetter Tips

Solar Light Company offers a box of 100 disposable positive displacement pipetter tips.

SL-05729 1600 Watt Ozone-Free Short Arc Xenon Lamp

This OEM Xe Replacement Lamp is designed to work with current generation Solar Light LS1000-Series Solar Simulators. Its proprietary...
