PV CELL TESTING 16S 300 WATT SOLAR SIMULATOR

6″ (15.25 cm) 1000W PV Cell Testing Solar Simulator Kit Model LS1000-6S-002

LS1000-6S-002 Solar Simulators produce a 6″ (15.25 cm) Class A Air Mass 1.5 Emission Spectrum to accurately replicate full spectrum sunlight for PV Cell research, in accordance with the latest ASTM, IEC, and ISO laboratory standards.

Add to Wishlist
GET A QUOTE
Categories: , Tag:

Description

Solar Light’s state of the art single output 1000W LS1000-6S-002 Solar Simulators produce a 6″ (15.25 cm) Class A Air Mass 1.5 Emission Spectrum to accurately replicate full spectrum sunlight, with 1 sun output intensity. They can also be quickly and easily configured by the user to provide UVA only, UVB only, UVA+B, or custom spectra optionally. These precision research-grade instruments are specifically designed to comply with the latest ASTM, IEC, and ISO laboratory standards. These comprehensive PV Cell Testing Kits arrive with everything required to immediately begin testing, including the 1000W Simulator, advanced data logging Radiometer, full spectrum Class II Pyranometer, Source Meter, and Calibrated Reference Cell.

Photovoltaic Cell testing and research

This field can't be Empty

Optional On All Models

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (please specify at order)

This field can't be Empty

±10%

This field can't be Empty

N/A

This field can't be Empty

Forced air

This field can't be Empty

Xenon Short Arc

This field can't be Empty

< ±2% rms

This field can't be Empty

Near Zero

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

32°F to 95°F / 0°C to +35°C

This field can't be Empty

1.2” (3 cm)

This field can't be Empty

Factory Set Limit is 150 watts

This field can't be Empty

Optional On All Models

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

7.7 lbs. (3.2 kg.)

This field can't be Empty

3.9” (10 cm)

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

B (IEC 60904-9 2007)<br> B (JIS C 8912)<br> B (ASTM E927 - 05)

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

1000W

This field can't be Empty

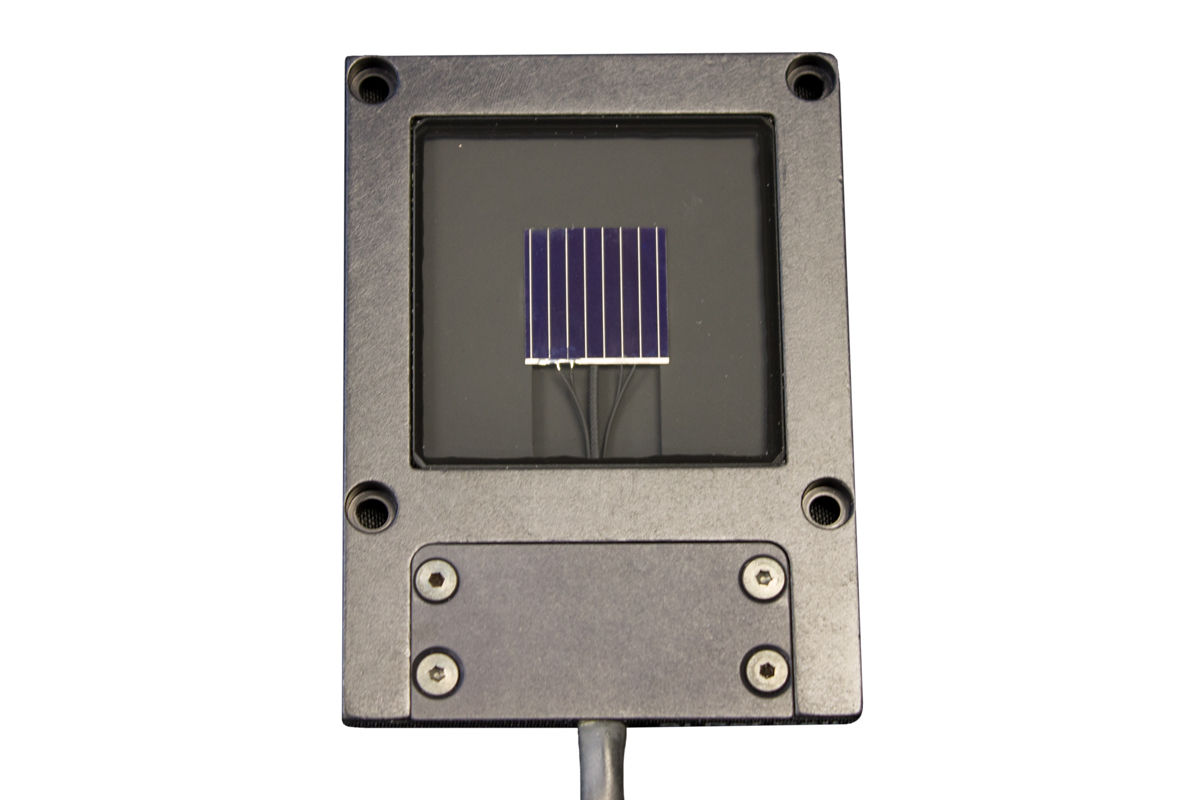

<ul> <li><a href="https://solarlight.com/product_category/solar-simulators/ls1000-series-air-mass-simulators/">LS1000-6S-AM Solar Simulator with 6" (15.25 cm) vertical output</a></li> <li><a href="https://solarlight.com/product/xps-1600-xenon-lamp-power-supply/">XPS-1600 Power Supply</a></li> <li><a href="https://solarlight.com/product/datalogging-radiometer-pma2100-2/">PMA2100 Data Logging Radiometer Package</a></li> <li><a href="https://solarlight.com/product/pma-2144-class-ii-pyranometer/">PMA2144 Class II Pyranometer</a> </li> <li><a href="https://solarlight.com/product/sl-05693-light-safety-glasses/">UV Safety Glasses (Light)</a></li> <li><a href="https://solarlight.com/product/sl-07702-dark-safety-glasses/">UV Safety Glasses (Dark)</a></li> <li>Source Meter (Optional) </li> <li>2x2 cm Calibrated Reference Cell (Optional) </li> </ul>

This field can't be Empty

6” (15.25 cm) Square

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (please specify at order)

This field can't be Empty

Xenon Short Arc (For All Models)

This field can't be Empty

150W (For All Models)

This field can't be Empty

±5% (For All Models)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

< ±2% rms

This field can't be Empty

B (IEC 60904-9 2007)<br> B (JIS C 8912)<br> B (ASTM E927 - 05)

This field can't be Empty

3” (7.6 cm)

This field can't be Empty

n/a

This field can't be Empty

Near Zero

This field can't be Empty

Factory Set Limit is 150 watts max

This field can't be Empty

32°F to 95°F / 0°C to +35°C

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

Forced air

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

45 lbs. (20.5 kg.)

This field can't be Empty
