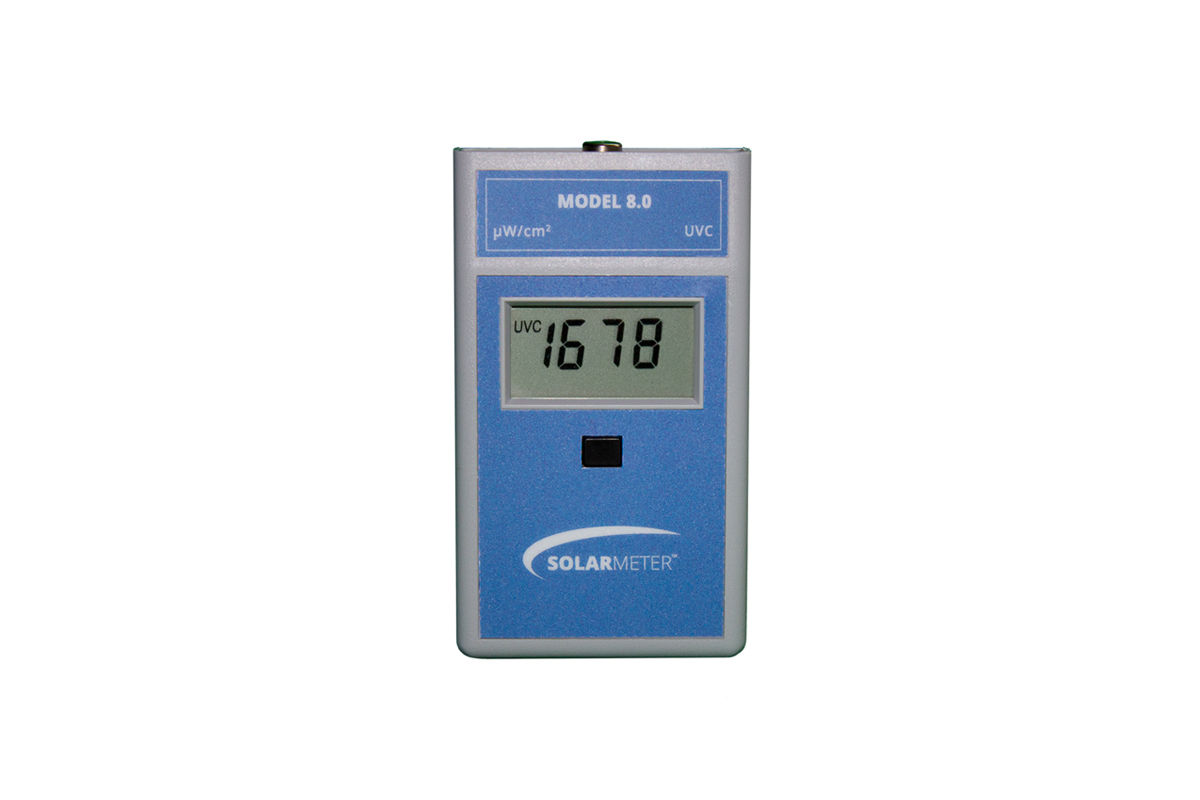

Solarmeter® Model 8.0 UVC Meter

This meter is used to measure exact intensity. If you are looking to measure dose, please visit here.

*Due to the high volume of orders we are receiving, this product’s fulfillment expectation is now 7-10 business days, as COVID-19 has impacted our turnaround time for this item.

GET A QUOTE

Description

Features:

    • Compact, Handheld, and Durable
    • Simple Single-Button Operation
    • NIST Traceable Accuracy
    • LCD Display
    • Made In USA

Applications:

    • Monitoring UVC Germicidal Lamp Intensity & Aging
    • Testing Eyewear UVC Blocking Capabilities
    • Measuring Germicidal Lamp Fixture Leakage

Sensor/Detector: Photodiode packaged in hermetically sealed UV glass window cap.


Operation: To operate your Solarmeter, aim the sensor window located on the top panel of the meter directly at a UV source. Press and hold the push-button switch on the face of the meter. For best results take note of the distance the reading was taken from the UV source in order to ensure repeatable results. Battery operation voltage is viable from 9V down to 6.5V. Below 6.5V, the numbers on the LCD display will begin to dim, indicating the need for battery replacement. Under typical service load, a standard 9V battery will last approximately 2 years.


Proper Usage of Solarmeter® Ultraviolet Radiometer for Lamp Tests

  • Wear UV-block eye, face, hand protection when checking UVC lamps.
  • Allow lamps to warm-up prior to taking readings (at least 5 min).
  • Hold sensor close to lamp to measure individual lamp UVC intensity. Hold sensor at distance from lamp(s) for effective sterilization intensity.
  • When checking aging of lamps, keep measuring distance and locations constant.
  • Lamps should be replaced when output drops to about 70% of their original (new) readings.
  • If unsure of what original new values were, replace a lamp with new one and compare old one.
  • Do not subject the meter to extremes in temperature, humidity, shock or dust.
  • Use a dry, soft cloth to clean the intrument. Keep sensor free of oil, dirt, etc.

0.4” (1 cm)

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (for all models - please specify at order)

This field can't be Empty

Xenon Short Arc (For All Models)

This field can't be Empty

150W (For All Models)

This field can't be Empty

±5% (For All Models)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

< ±2% rms

This field can't be Empty

B (IEC 60904-9 2007)<br> B (JIS C 8912)<br> B (ASTM E927 - 05)

This field can't be Empty

3” (7.6 cm)

This field can't be Empty

n/a

This field can't be Empty

Near Zero

This field can't be Empty

Factory Set Limit is 150 watts max

This field can't be Empty

32°F to 95°F / 0°C to 35°C

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

Forced air

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

4.5 (oz) / 128 (g) Including Battery

This field can't be Empty

8.0

0-1999 µW/cm² UVC

254 ± 8 nm

246-262 nm

1 µW/cm²

3.0 Readings/Sec

3.5 Digit LCD

0.4 (in) / 10.2 (mm) high

32°F to100°F / 0°C to 37.8°C

5% to 90% RH

±10% REF.NIST

N/A

4.2L x 2.4W x 0.9D (in) / 106.7L x 61W x 22.9D (mm)

4.5 (oz) / 128 (g) Including Battery

9-Volt DC Battery

UV Glass

None

SiC

CE Mark
