UVB BIOMETER MODEL 501 RADIOMETER

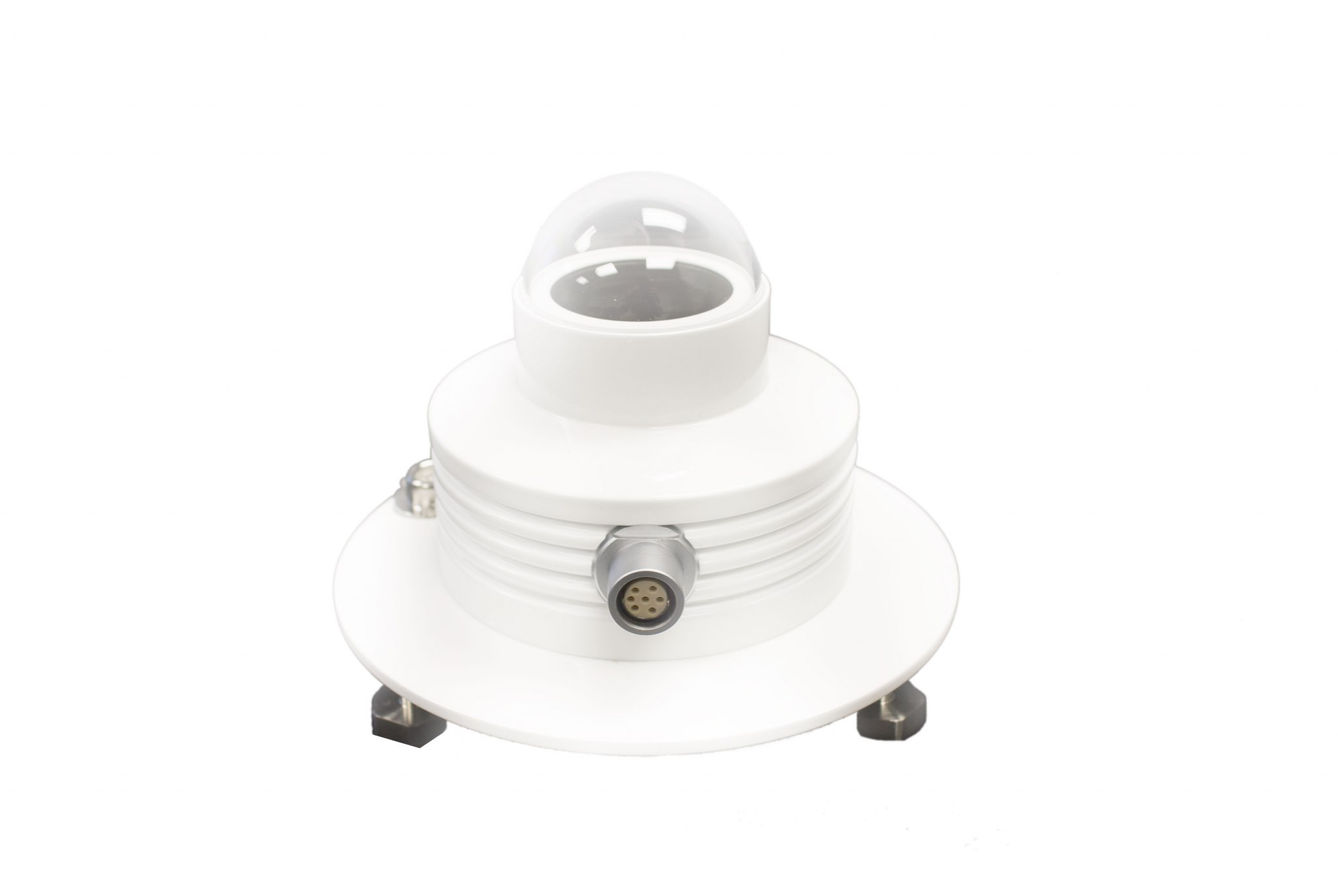

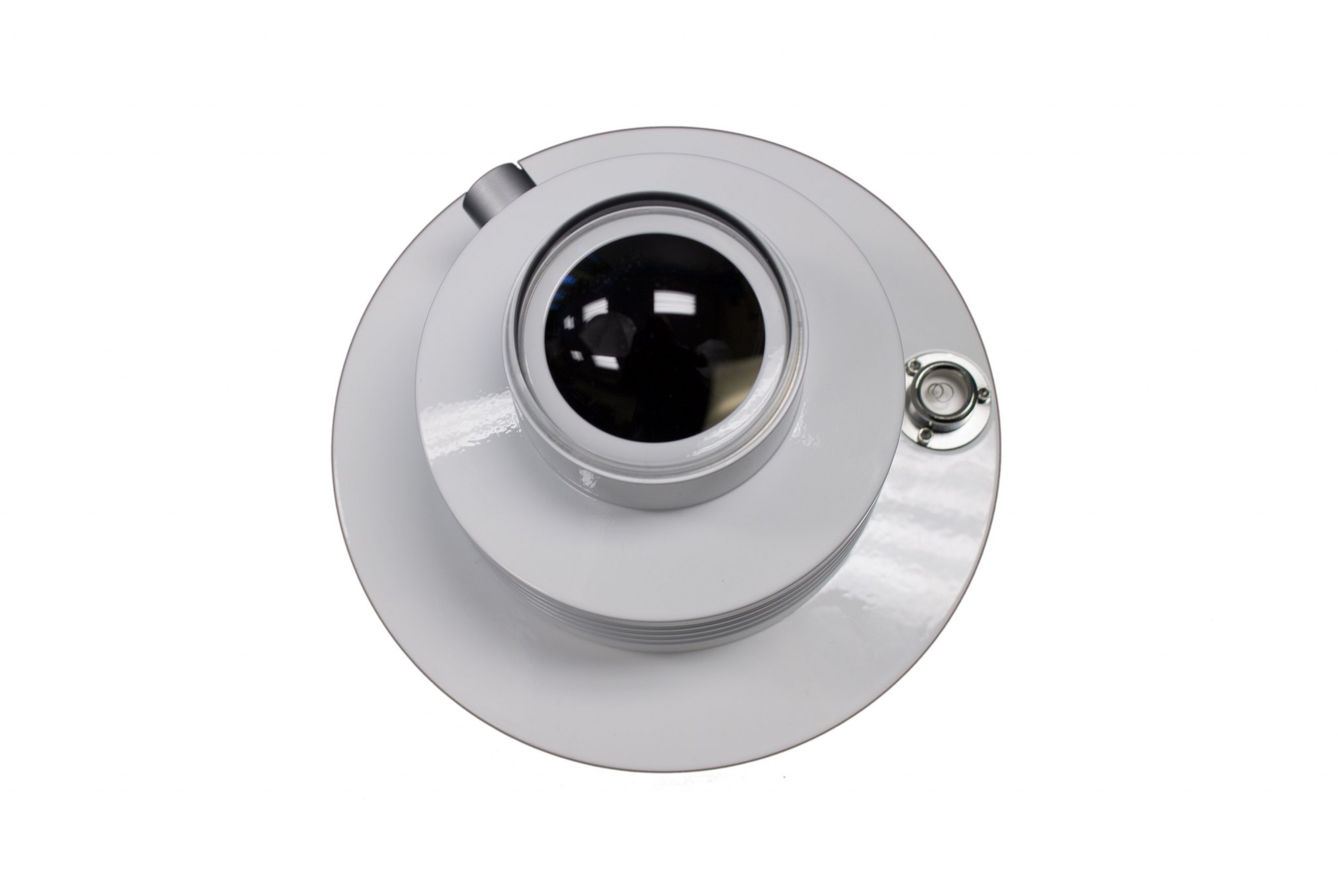

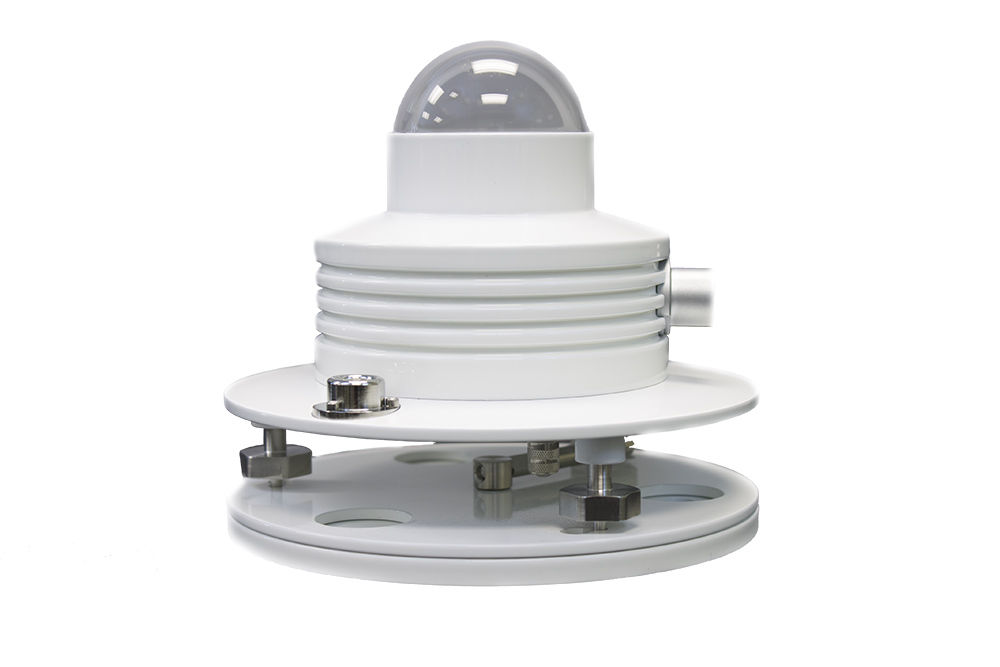

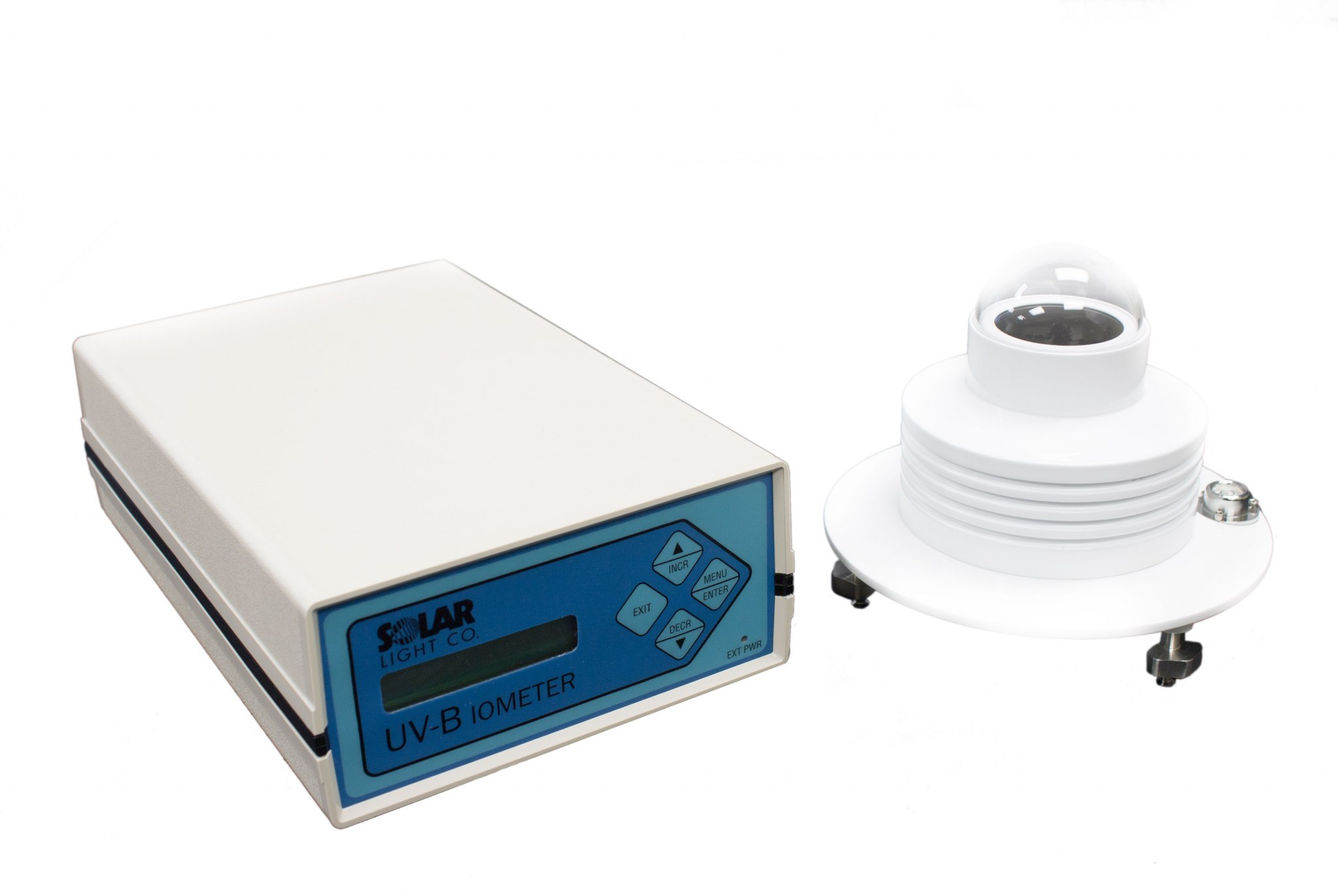

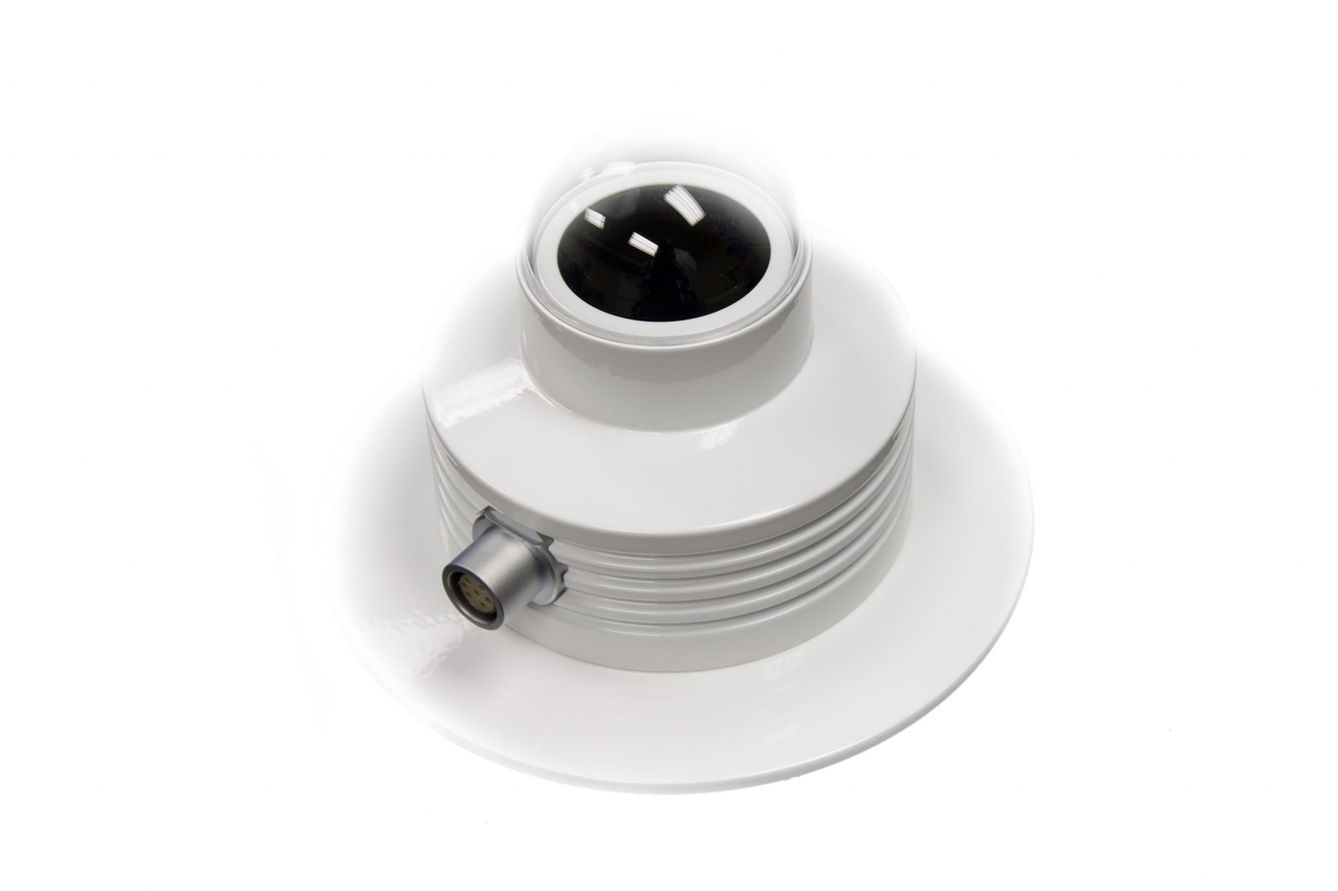

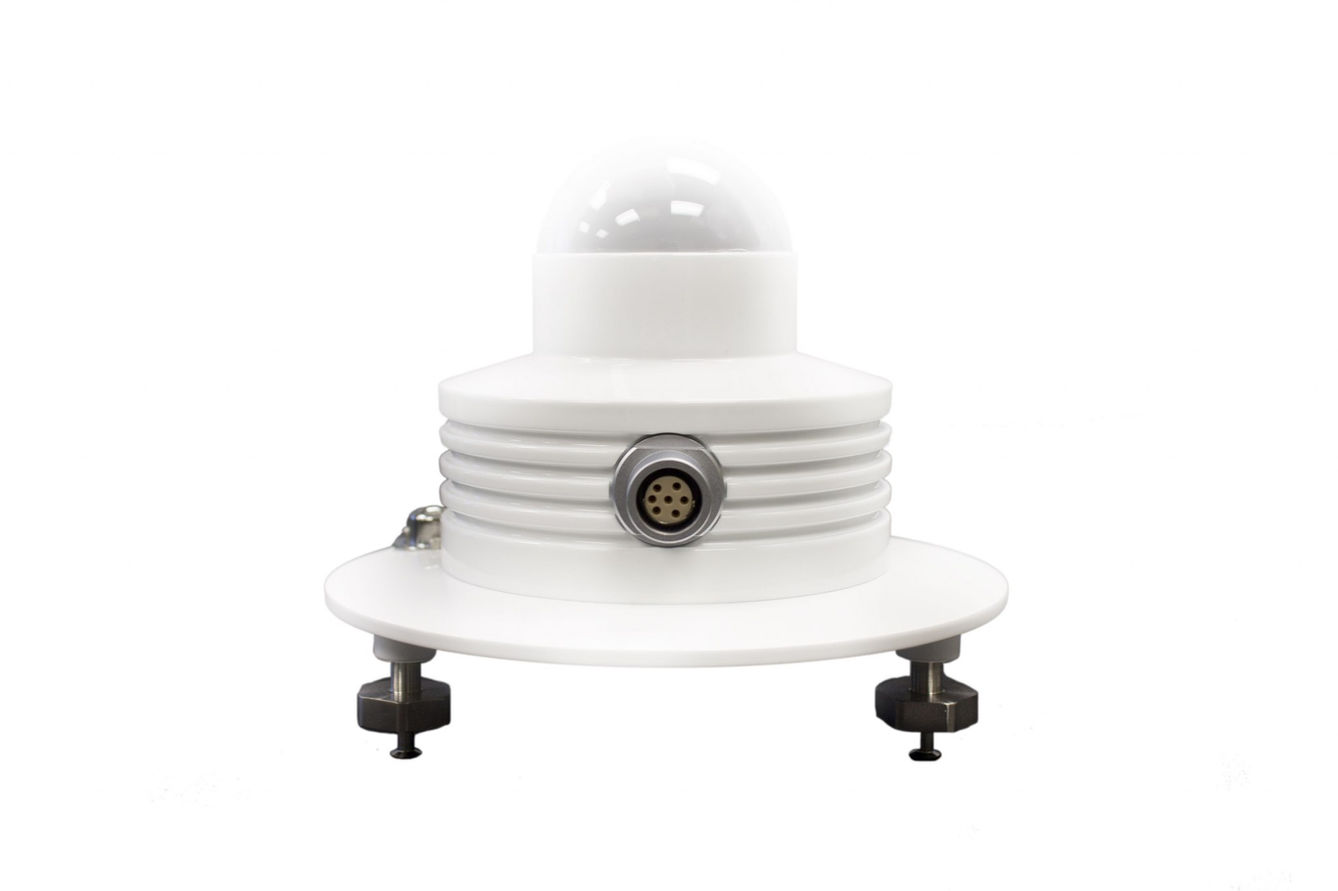

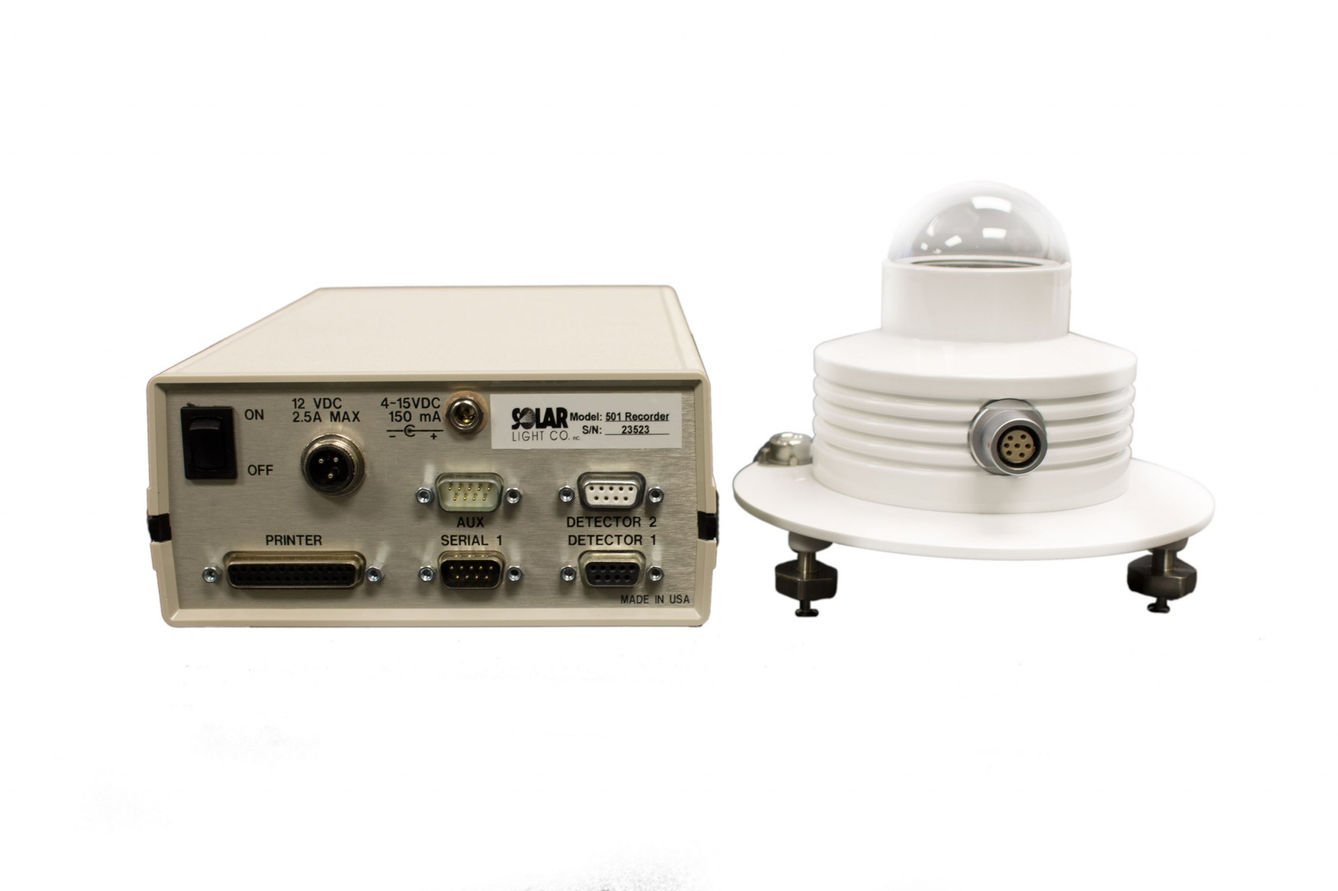

Model 501 UVB Radiometer

Solar Light’s Model 501 Series Radiometers are rugged meteorological-grade instruments which measure UVB solar radiation outdoors and underwater (up to 16.4 feet / 5 meters maximum depth.)

GET A QUOTE

Description

Solar Light’s Model 501 Series Radiometers are rugged meteorological-grade instruments which measure solar radiation outdoors and underwater (up to 16.4 feet / 5 meters maximum depth.) World Class manufacturing practices and NIST traceable calibrations ensure a high degree of reproducibility and comparability from unit to unit. Large networks of these precision devices are relied upon by many of the world’s most prestigious meteorological observatories, weather stations, and research agencies worldwide, such as the Australian Radiation Protection and Nuclear Safety Agency (ARPANSA)  and the Natural Resource Ecology Laboratory (NREL.) Digital versions are available with Sensor Recorders, and analog versions are available with output voltage which is proportional to the measured UV solar radiation. In addition, all 501s feature controlled internal temperature to ensure the highest levels of accuracy.

<ul> <li>This permanent outdoor UVB solar radiation measurements system is used in weather stations and metrological observatories worldwide.</li> <li> Measurement of solar ultraviolet radiation and from artificial sources with wavelengths above 280nm to 315nm. </il> <li>Plant, marine, climatological ozone or other biological impact studies that require continuous field measurements over long periods of time.</li> <li> Measurements for media and research organizations that provide public information about the effects of UV radiation.</li> </ul>

This field can't be Empty

0.4” (1 cm)

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (for all models - please specify at order)

This field can't be Empty

Xenon Short Arc (For All Models)

This field can't be Empty

150W (For All Models)

This field can't be Empty

±5% (For All Models)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

< ±2% rms

This field can't be Empty

B (IEC 60904-9 2007)<br> B (JIS C 8912)<br> B (ASTM E927 - 05)

This field can't be Empty

3” (7.6 cm)

This field can't be Empty

n/a

This field can't be Empty

Near Zero

This field can't be Empty

Factory Set Limit is 150 watts max

This field can't be Empty

32°F to 95°F / 0°C to 35°C

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

Forced air

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

2 lbs (0.9Kg)(without cable)

This field can't be Empty

<img src="https://solarlight.com/wp-content/uploads/PMA2106.jpg"><border="0">

<img src="https://solarlight.com/wp-content/uploads/PMA2106-log.jpg"><border="0">

0-10 MED/Hr

This field can't be Empty

Within 5% of Ideal Cosine

This field can't be Empty

1 Second (0.1 second on demand)

This field can't be Empty

1% per C

This field can't be Empty

+/-5%

This field can't be Empty

-40 to 120 °F (-40 to 50 °C)

This field can't be Empty

5.5” x 5.9” (14 x 15 cm)

This field can't be Empty

2 lbs (0.9Kg)(without cable)

This field can't be Empty

Hermetic Connector, 50’ std., Up to 200’ Option, 0.1lb/ft2

This field can't be Empty

3 Leveling Feet, Circular Level

This field can't be Empty

0-2.5V,0.25[V/(MED/hr)], 0.5mA/hr

This field can't be Empty

0-1V, 1V=25 C, Sensitivity 20mV/ C, 0.5mA max

This field can't be Empty

5.5-25V/5mA Max for Signal Circuit. 11-15V/1A Max for Temp Stability

This field can't be Empty

Brochure

UVB BIOMETER MODEL 501 RADIOMETER

Internet Data Link Software

USB-RS232 Driver Software

501 UV BIOMETER OWNERS MANUAL

501 UV BIOMETER OWNERS MANUAL (Spanish)

UV AND OZONE MEASUREMENTS

UV AND OZONE MEASUREMENTS PROVIDE METEOROLOGICAL DATA (34KB).

ULTRAVIOLET RADIATION AS APPLIED TO PHOTOCLIMATHERAPY AT THE DEAD SEA ​​​​​​​

A.I. KUDISH, PHD, D. ABELS, MD, AND M. HARARI, MD - INTERNATIONAL JOURNAL OF DERMATOLOGY 2003, 42, 359-365

INTER-COMPARISON OF THE SOLAR UVB, UVA AND GLOBAL RADIATION CLEARNESS AND UV INDICES FOR BEER SHEVA AND NEVE ZOHAR (DEAD SEA), ISREAL (259K)

A.I KUDISH, V. LYUBANSKY, E.G. EVSEEV, A. IANETZ - ENERGY 30 (2005) 1623-1641

THE MEASUREMENT AND ANALYSIS OF NORMAL INCIDENCE SOLAR UVB RADIATION AND ITS APPLICATION TO THE PHOTOCLIMATHERAPY PROTOCOL FOR PSORIASIS AT THE DEAD SEA, ISRAEL

AVRAHAM I. KUDISH, MARCO HARARI AND EFIM G. EVSEEV - PHOTOCHEMISTRY AND PHOTOBIOLOGY, 2011, 87: 215–222

The analysis of ultraviolet radiation in the Dead Sea basin, Isreal (126K)

A.I. Kudish, E. Evseev, A.P. Kushelesky - International Journal of Climatology, Vol.17 1697-1704 (1997)

Statistical relationships between solar UVB and UVA radiation and global radiation measurements at two sites in Isreal (165K)

A.I. Kudish, E. Evseev - International Journal of Climatology, Int. J. Climatol. 20: 759-770 (2000)

Statistical analysis and inter-comparison of the solar UVB, UVA and global radiation for Beer Sheva and Neve Zohar (Dead Sea), Isreal (256K)

A.I Kudish, V. Lyubansky, E.G. Evseev, A. Ianetz - Theor. Appl. Climatol. 80, 1-15 (2005)

INTERFACING THE 501 BIOMETER TO A CAMPBELL DATA LOGGER (37KB)

UV-BIOMETER - A BROAD BAND INSTRUMENT COMPLEMENTING OZONE MEASUREMENT WITH GROUND BASED UV EXPOSURE

PRESENTED AT QUADRENNIAL OZONE SYMPOSIUM CHARLOTTESVILLE, VIRGINIA, USA JUNE (1992) DANIEL BERGER, MARIAN MORYS

CALIBRATION OF THE BROAD BAND RADIOMETER

DESCRIBES 501 RADIOMETER CALIBRATION) DANIEL BERGER, MARIAN MORYS

THE ACCURATE MEASUREMENT OF BIOLOGICAL EFFECTIVE ULTRAVIOLET RADIATION

(135K) PAPER WAS PRESENTED AT THE INTERNATIONAL SYMPOSIUM ON HIGH LATITUDE OPTICS, TROMSO, NORWAY, JULY 1993 MARIAN MORYS, DANIEL BERGER
