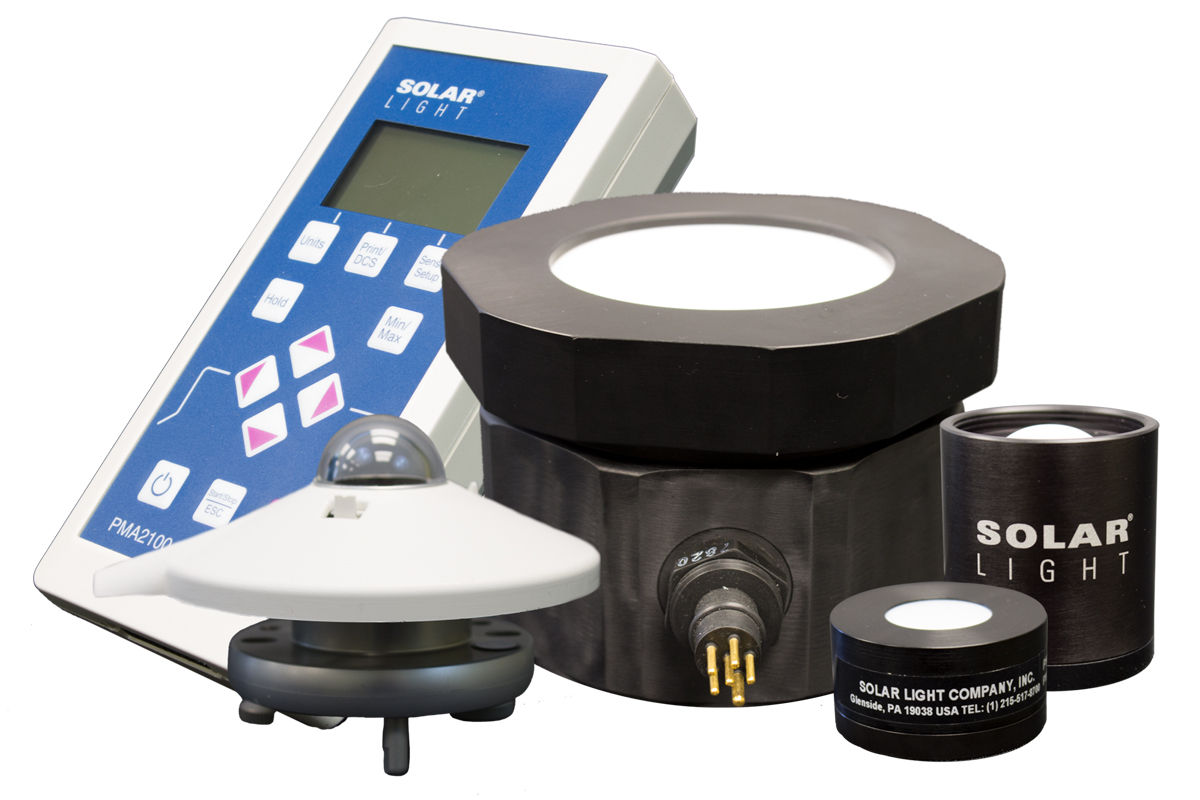

Sensor and Detector Options

Please note that Solar Light offers both Digital Sensors and Analog Sensors in the PMA-Series lineup. Select these Analog Sensors if you don’t need a digital display output of the reading, if you will be connecting to your own datalogger, or if you plan to use a voltage source to provide excitation voltage to the sensor and a digital volt or amp meter to read and convert the results. Analog Sensors are typically used as process sensors that are permanently installed to provide ongoing information, with a typical current draw of under 1mA.

Typical Inputs / Outputs Available-

Input is 10VDC to 24VDC / Output is is 4 to 20mA / 2 wire detector.-Input is 10 to 24 VDC / Output is 0 to 5 VDC / 3 wire detector.-Custom Voltage: Input is +/-5 to 12 VDC / Output is 4 to11 VDC / 4 wire detector: +/- voltage, common, and signal. Can be used with batteries

.

Optional Converters for Custom Voltage Sensors and Campbell Datalogger:

-Model PMA2010-001 – Provides necessary power conversion to use our Analog PMA11xx sensors from a 5VDC input source. Power supply is built into the sensor cord (non-detachable 4 wire cable.)

-Model PMA2010-002  – Provides necessary power conversion to use our Analog PMA11xx sensors from a 9-24VDC input source. Power supply is built into the sensor cord (non-detachable 4 wire cable.)

-Model PMA2010-003 – Provides necessary power conversion to use our Analog PMA11xx sensors from a 5VDC input source. Power supply is in a detached chassis.

-Model PMA2010-004  – Provides necessary power conversion to use our Analog PMA11xx sensors from a 9-24VDC input source. Power supply is in a detached chassis.

-Model PMA2011-001 – Provides necessary power conversion to use our Analog PMA11xx sensors from a 95-240VAC input source. Power supply is built into the sensor cord (non-detachable – for 1 sensor)

-Model PMA2011-002 – Provides necessary power conversion to use our Analog PMA11xx sensors from a 95-240VAC input source. Power supply is built into the sensor cord (non-detachable – for 2 sensors)

-Model PMA2011-004 – Provides necessary power conversion to use our Analog PMA11xx sensors from a 95-240VAC input source. Power supply is built into the sensor cord (non-detachable – for 4 sensors)

Wiring Diagram for Analog PMA11XX Detectors

Power connections using two 9V batteries
