1.2" (3 cm) 150W General Purpose Air Mass 1.5 Solar Simulator Kit Model 16S-150-007 - Solarlight

1.2″ (3 cm) 150W General Purpose Air Mass 1.5 Solar Simulator Kit Model 16S-150-007

The 150W Model 16S-150-007 is a general purpose, low cost Air Mass 1.5 ready simulator which can also be configured for UVB only, UVA+B, Visible, or custom spectra optionally by adding the required optical components.

Compare

Description

Print Friendly, PDF & Email

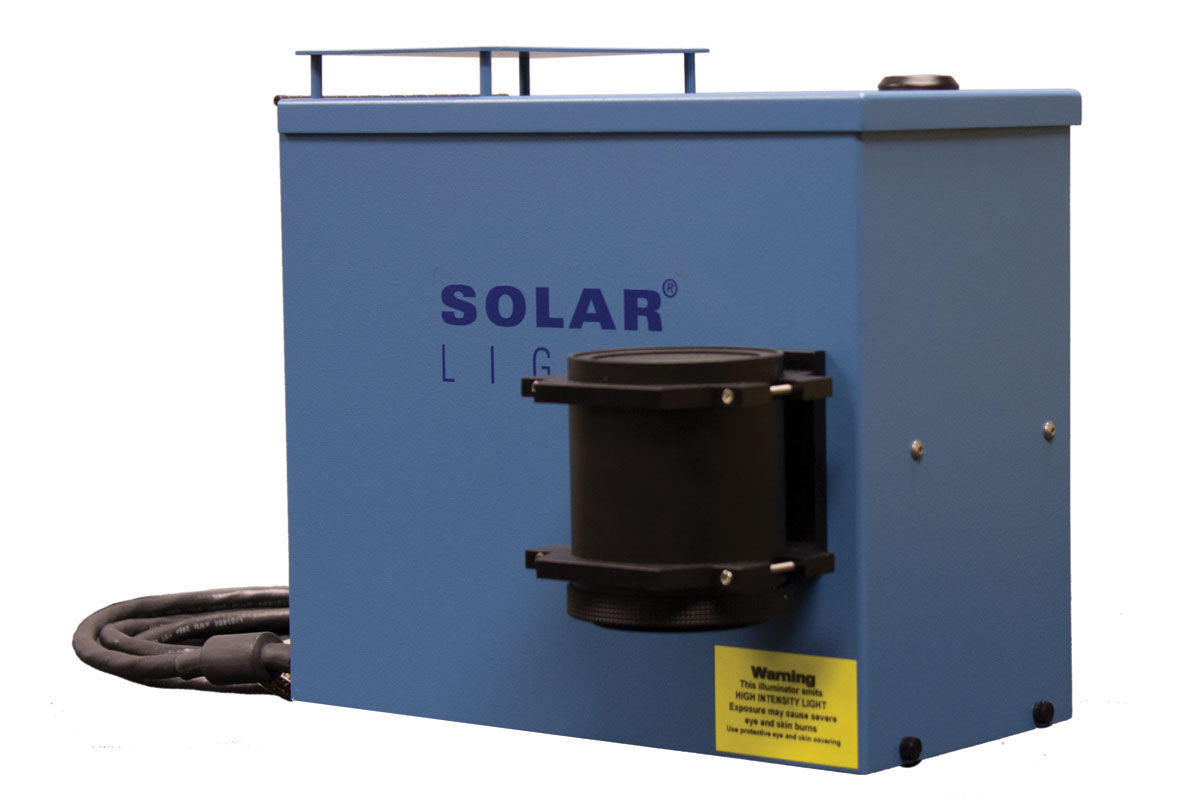

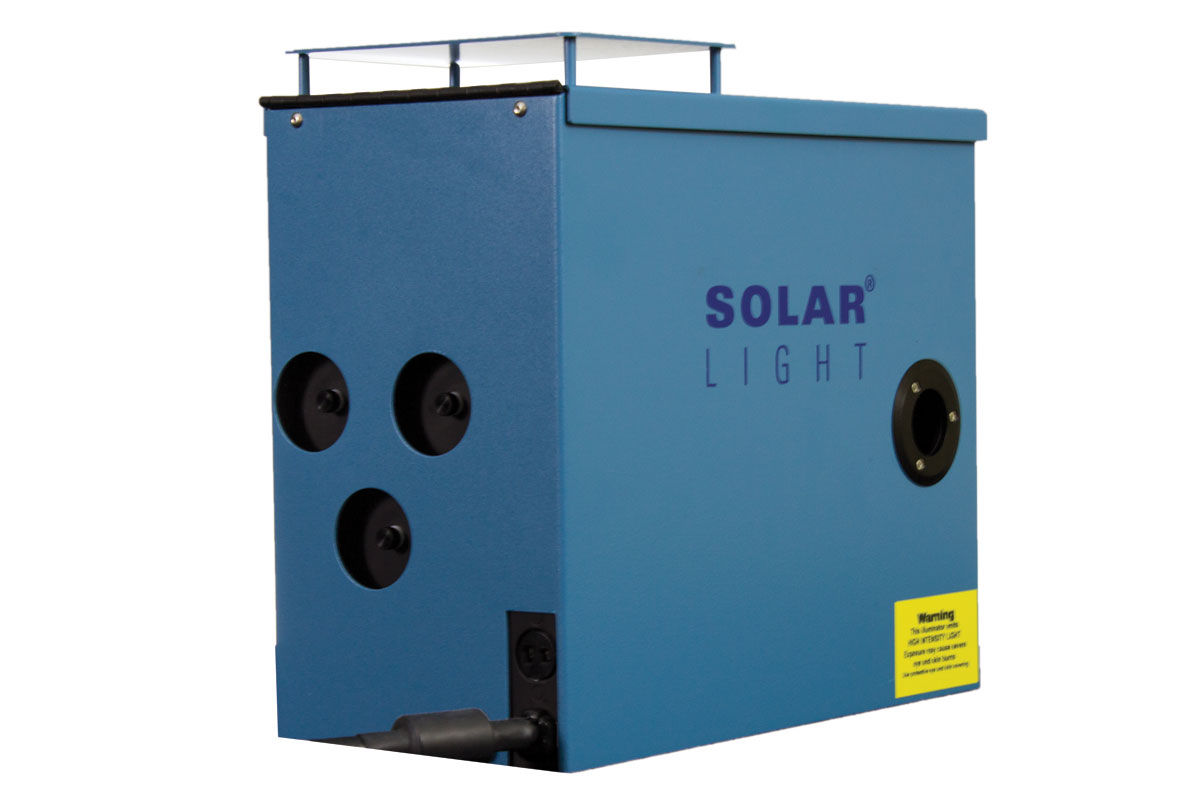

Solar Light’s Model 16S-150-007 is a general purpose, entry level Xenon Arc testing kit.

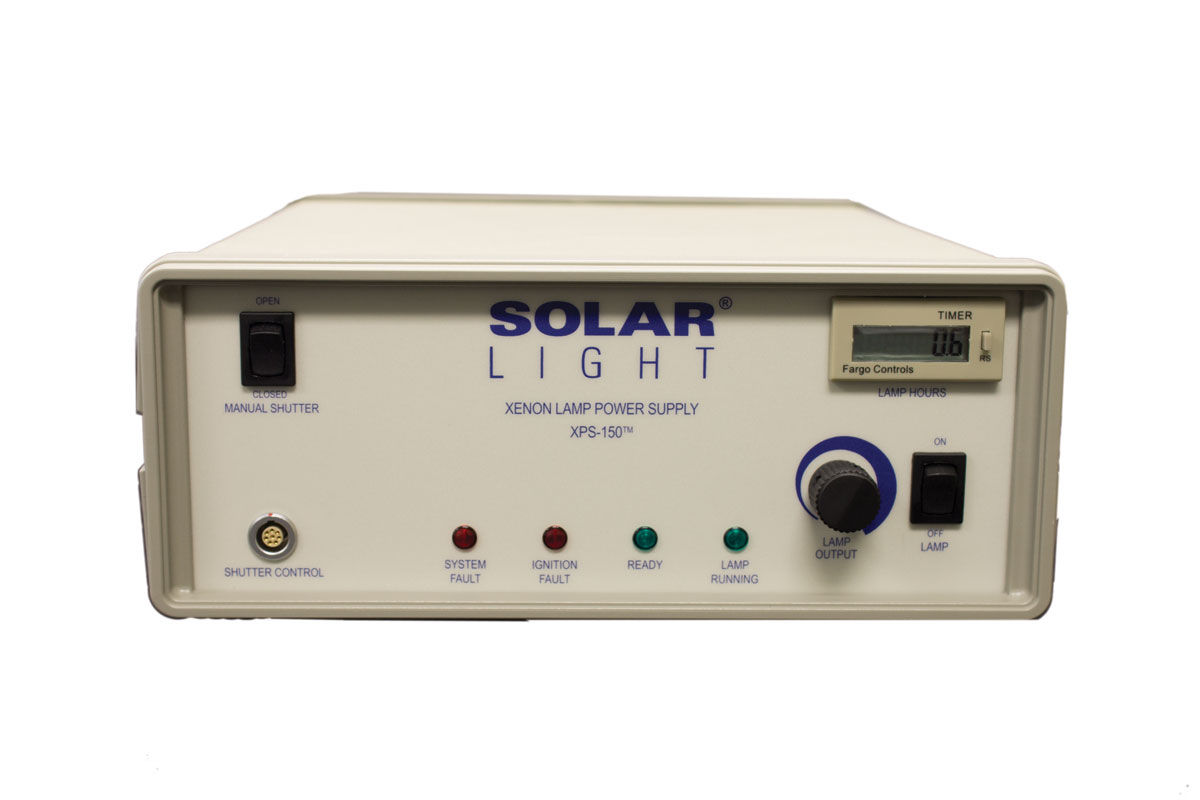

This unit has all of the filters, mirrors, and collimating lenses required for a Class A Spectrum simulator, except the Air Mass Filter set, which can be purchased and installed by the user at a later time. It can also be configured for UVA only, UVB only, UVA+B, Visible, or custom spectra optionally by adding the required optical components. Output can be controlled from 70-100% via the included XPS-150 power supply. The unit has a 1.2″ (3 cm) round horizontal output as standard, but may also be used with our optional vertical adapter.

General purpose irradiation, scientific research, and materials testing.

This field can't be Empty

This field can't be Empty

Optional On All Models

This field can't be Empty

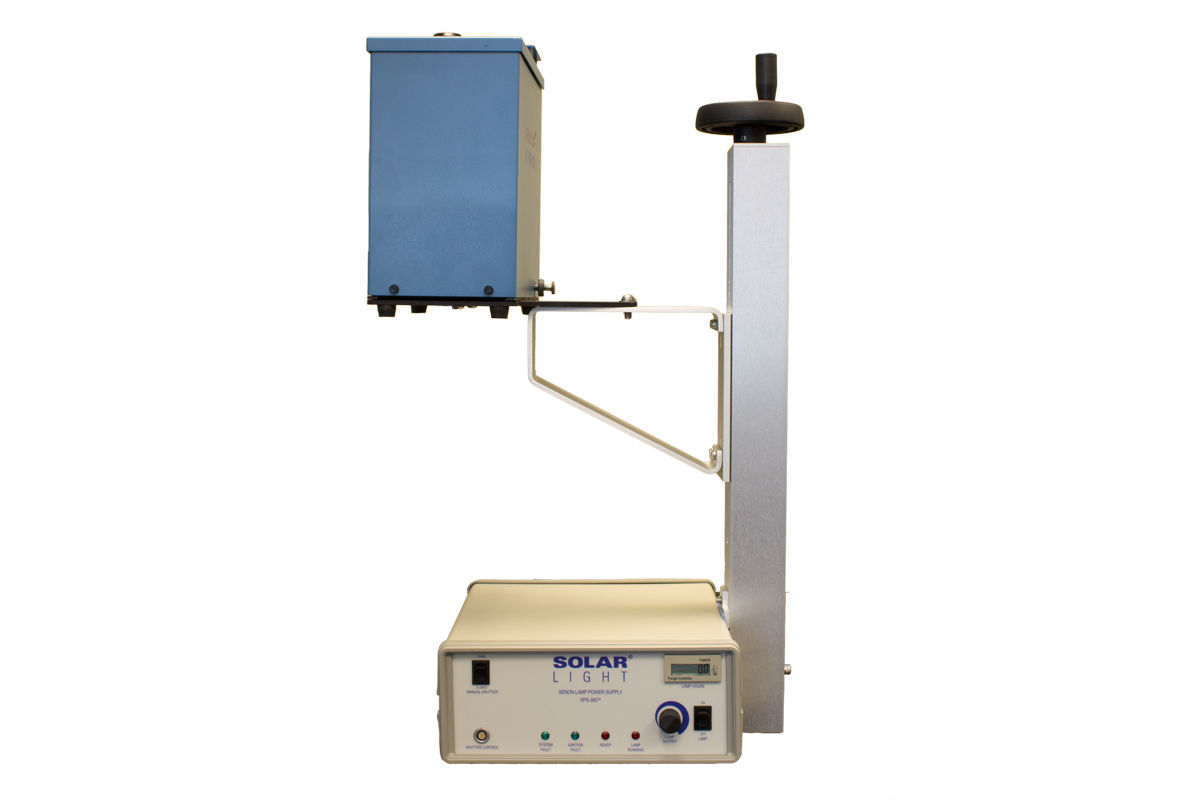

Vertical Downward, Vertical Upward, or Horizontal (please specify at order)

This field can't be Empty

±10%

This field can't be Empty

N/A

This field can't be Empty

Forced air

This field can't be Empty

Xenon Short Arc

This field can't be Empty

< ±2% rms

This field can't be Empty

<0.1%

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

32°F to 95°F / 0°C to +35°C

This field can't be Empty

1.2” (3 cm)

This field can't be Empty

Factory Set Limit is 150 watts

This field can't be Empty

Optional On All Models

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

7.7 lbs. (3.2 kg.)

This field can't be Empty

3.9” (10 cm)

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

A (IEC 60904-9 2007)
A (JIS C 8912)
A (ASTM E927 - 05)

This field can't be Empty

This field can't be Empty

A (IEC 60904-9 2007)
A (JIS C 8912)
A (ASTM E927 - 05)

This field can't be Empty

B (IEC 60904-9 2007)
B (JIS C 8912)
B (ASTM E927 - 05)

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

150W

This field can't be Empty

Brochure

Basic Academic Research Testing 16S-150-007

Quick Start Guide

16S-Series 150-300W Solar Simulator Quick Start Guide

SL-06173 150 Watt Ozone-Free Short Arc Xenon Lamp

This OEM Xe Replacement Lamp is designed to work with current Solar Light 16-Series 150W Solar Simulators, as well...

$380.00
