Microtops II® Ozonometer, ozone column measurement

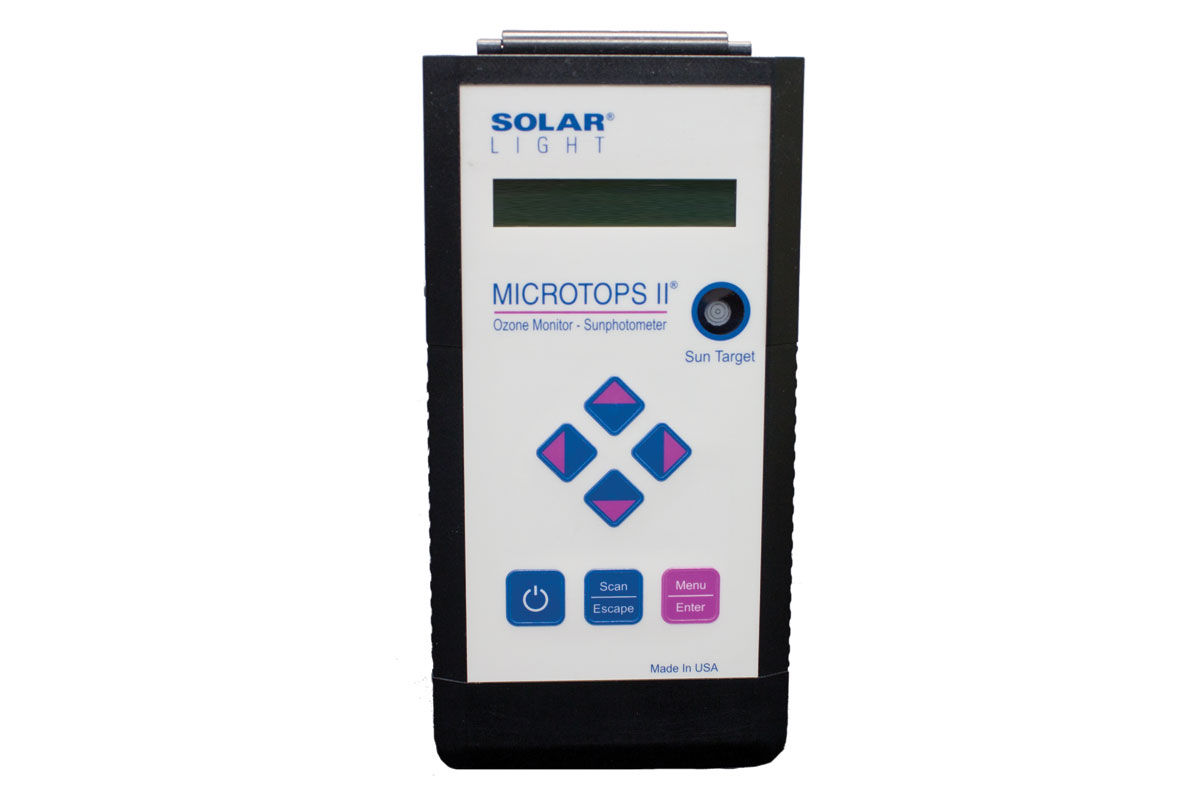

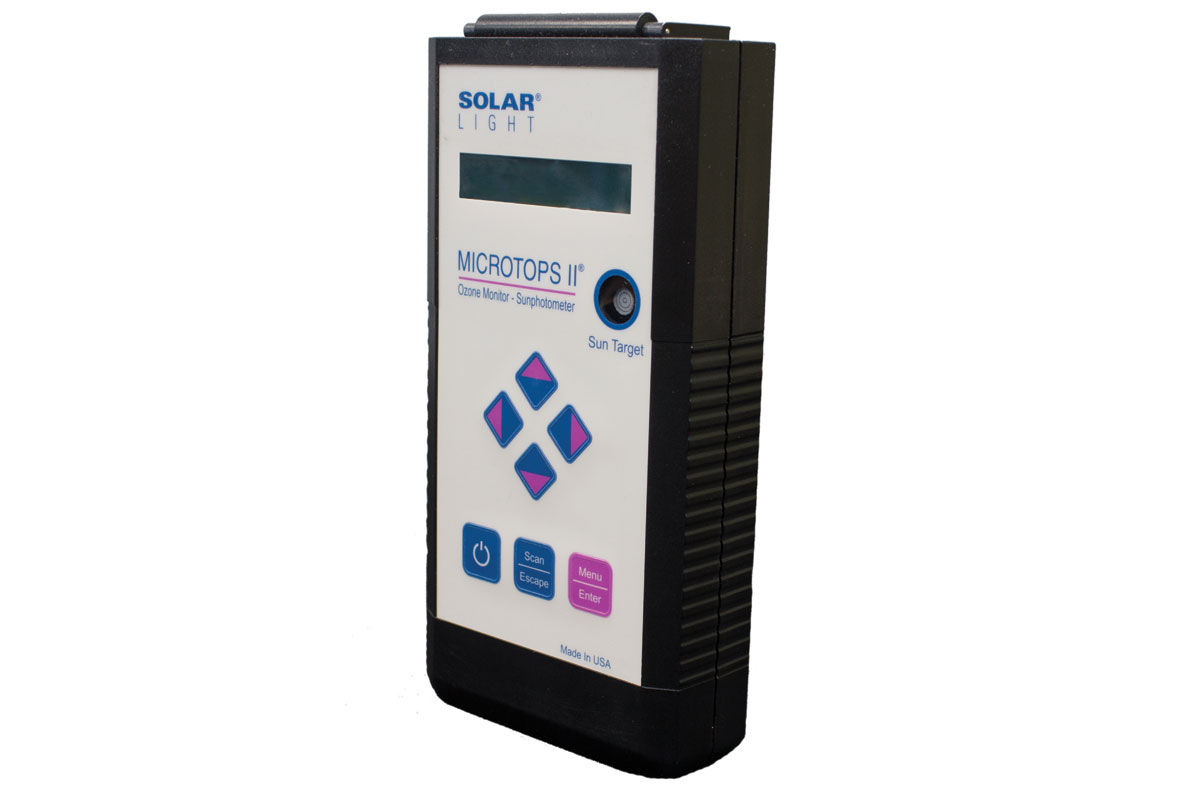

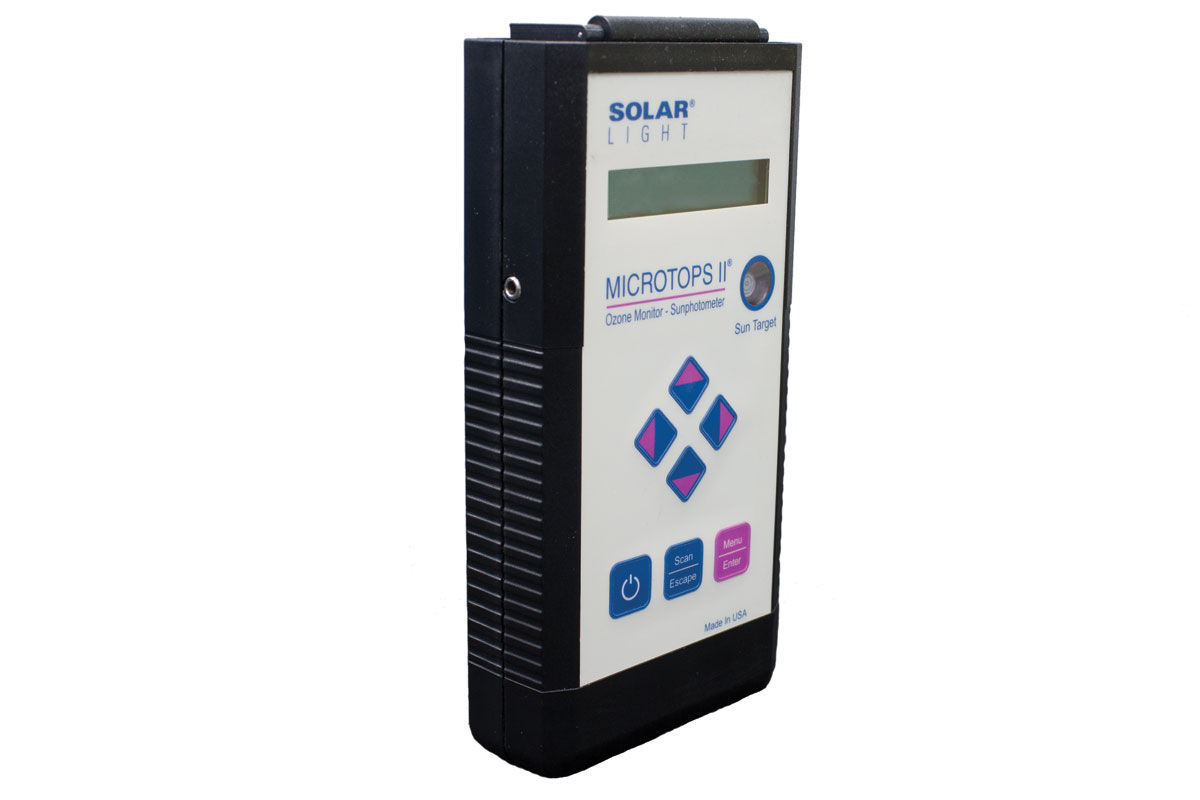

Model 521 Microtops II® Ozonometer

Solar Light’s Model 521 Microtops II® is a 5 channel hand-held ozonometer for measuring total ozone column per standard WMO configuration easily, accurately and dependably.

Compare

Description

Print Friendly, PDF & Email

Solar Light’s Model 521 Microtops II® is a 5 channel hand-held ozonometer for measuring total ozone column per standard WMO configuration easily, accurately and dependably. It measures direct solar ultraviolet radiation at 3 discrete wavelengths within the UVB range, as well as total water vapor and aerosol optical thickness (AOT) using the 936 and 1020 nanometer channels. This meter features 2% accuracy, which is comparable to much larger and more expensive instruments. Many options are available to facilitate field operations, such as a separate GPS receiver and rugged carrying case.

  • Weather Stations
  • Scientific and Educational Studies
  • Pollution Monitoring
  • Ozonometry
  • Environmental Monitoring

This field can't be Empty

0.01W/cm² on 305nm Channel

This field can't be Empty

>300,000

This field can't be Empty

2.5°

This field can't be Empty

1-2%

This field can't be Empty

max 0.002% FS

This field can't be Empty

0 to 50°C, No Precipitation

This field can't be Empty

RS232 / USB with Adapter

This field can't be Empty

4xAA Alkaline Batteries

This field can't be Empty

21 oz. (600 grams)

This field can't be Empty

4”W x 8”H x 1.7”D (10x20x4.3 cm)

This field can't be Empty

Brochure

Model 521 Microtops II® Ozonometer Data Sheet

Quick Start Guide

Model 521 Microtops II® Ozonometer Quick Start Guide

Microtops Organizer Software

Microtops Organizer Software

Solar Light Company offers Microtops Organizer Software for Windows XP which is included with Microtops II.

SL-04183 Field Carrying Case

Solar Light Company offers a field carrying case with shoulder strap.

SL-02248 Tripod Adapter

Solar Light Company offers a tripod adapter.

SL-05904 GPS Receiver

Solar Light Company offers a GPS receiver with GPS73H with data cable for Logistics Plus.

SL-08493 Tripod

Solar Light Company offers a tripod.

SL-02778 Serial Cable

Solar Light Company offers a serial cable, DB9 to 1/8" which is standard with Microtops. Online purchases for domestic...

$55.00

SL-03628 Alkaline Battery

Solar Light Company offers an industrial AA Alkaline battery.

SL-07310 USB Cable

Solar Light Company offers a serial cable, DB9 to USB, which is standard with Microtops.

SL-05903 GPS Data Cable

The SL-05903 GPS Data Cable can be used as a spare or replacement cable for use with late model...

$80.00
