ultraviolet safety meter model 6d

Model 6D Ultraviolet Safety Meter

Solar Light’s Model 6D Ultraviolet Safety Meter is a precise instrument that measures worker exposure to UV radiation, per standards published by the American Conference of Governmental Industrial Hygienists.

GET A QUOTE

Description

Solar Light’s Model 6D Ultraviolet Safety Meter is a valuable tool for any industry that involves worker exposure to UV radiation. It is sensitive to ultraviolet radiation specified as hazardous in standards published by the American Conference of Governmental Industrial Hygienists. Those standards state that the total UV exposure in an eight-hour period should not exceed 3 millijoules per square centimeter at 270nm. Other wavelengths have hazardous potential related to that of 270nm by the Spectral Weighting Function (see product data sheet for details.) The 6D Safety Meter monitors the integrated effect of all ultraviolet wavelengths from the light source.

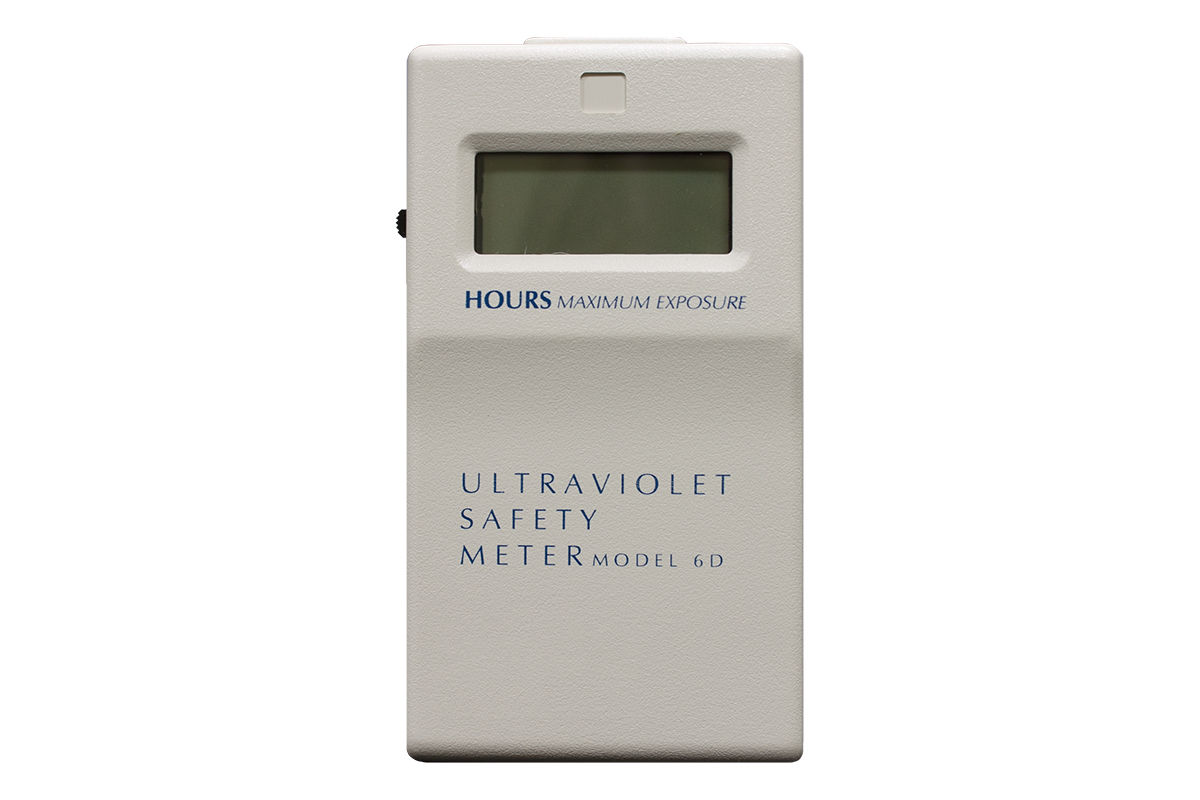

The model 6D Ultraviolet Safety Meter has a self-contained sensor mounted on the top panel of the meter. It is activated by a sliding ON/OFF switch. The maximum safe exposure time in hours and 1/100 parts of an hour is shown on the LCD. A reading of 10.00 hours indicates a source too weak to reach the Threshold Limit Value during 8 hour working day.

0.4” (1 cm)

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (for all models - please specify at order)

This field can't be Empty

Xenon Short Arc (For All Models)

This field can't be Empty

150W (For All Models)

This field can't be Empty

±5% (For All Models)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

< ±2% rms

This field can't be Empty

B (IEC 60904-9 2007)<br> B (JIS C 8912)<br> B (ASTM E927 - 05)

This field can't be Empty

3” (7.6 cm)

This field can't be Empty

n/a

This field can't be Empty

Near Zero

This field can't be Empty

Factory Set Limit is 150 watts max

This field can't be Empty

32°F to 95°F / 0°C to 35°C

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

Forced air

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

7 oz. (200 grams)

This field can't be Empty

<img src="https://solarlight.com/wp-content/uploads/6D-Chart.jpg" border="0">

This field can't be Empty

One

This field can't be Empty

250 to 400nm

This field can't be Empty

0.03 Hours to 10 Hours

This field can't be Empty

60° Degrees

This field can't be Empty

32 to 120°F (0 to +50°C)

This field can't be Empty

9 Volt Alkaline Battery

This field can't be Empty

300 Hours

This field can't be Empty

Single Button

This field can't be Empty

6 x 3.2 x 1.5” (15 x 8 x 3.8 cm)

This field can't be Empty

5 Digit

This field can't be Empty

7 oz. (200 grams)

This field can't be Empty

Brochure

Model 6D UV Safety Meter Data Sheet

User Manual

Model 6D UV Safety Meter User Manual
