1.2” (3 cm) 150W UV Solar Simulator Model 16S-150-1.2-UV - Solarlight

1.2” (3 cm) 150W UV Solar Simulator Model 16S-150-1.2-UV

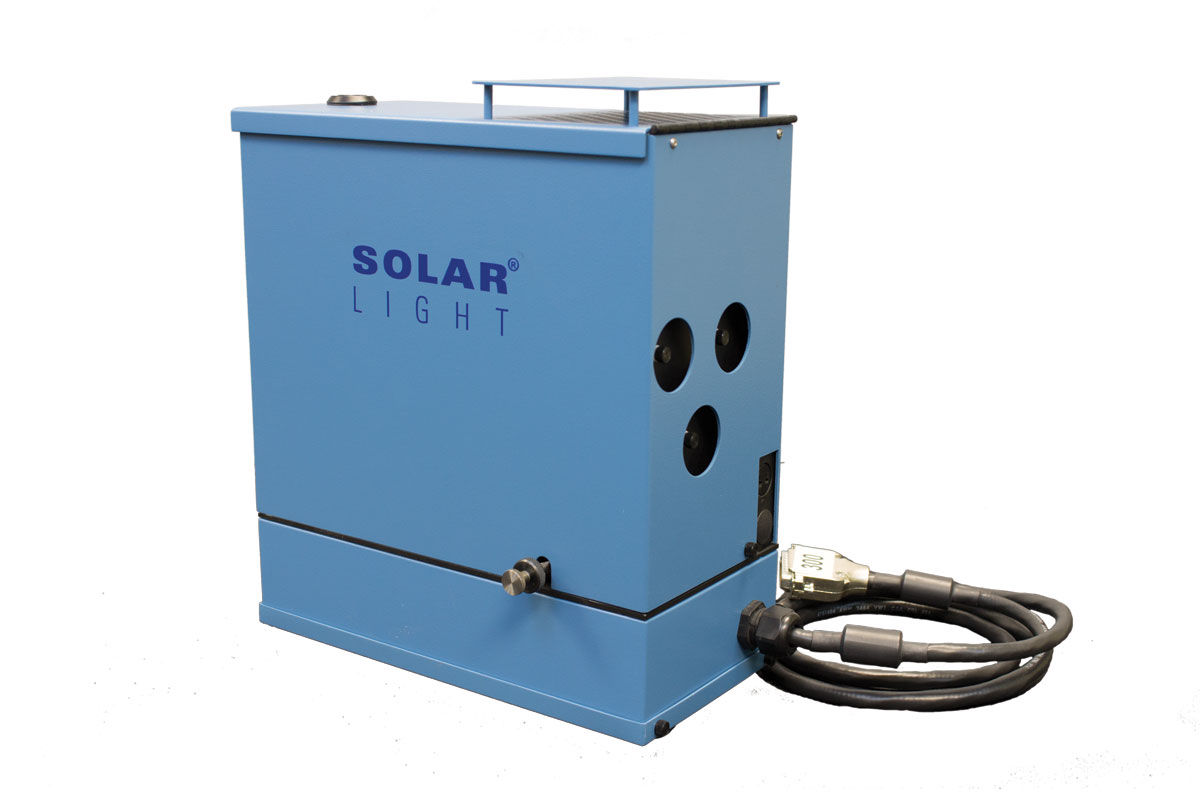

Solar Light’s 150W single output 16S-150-1.2-UV Solar Simulator produces a 1.2″ (3 cm) spot beam solar UV radiation in the 290-400nm range, with over 90% uniformity in the usable area. The output can be quickly and easily configured by the user to provide UVA only, UVB only, UVA+B, or full spectrum sunlight optionally. These precision research-grade instruments are specifically designed to comply with the latest laboratory standards such as ASTM, IEC, and ISO.

Compare

Description

Print Friendly, PDF & Email

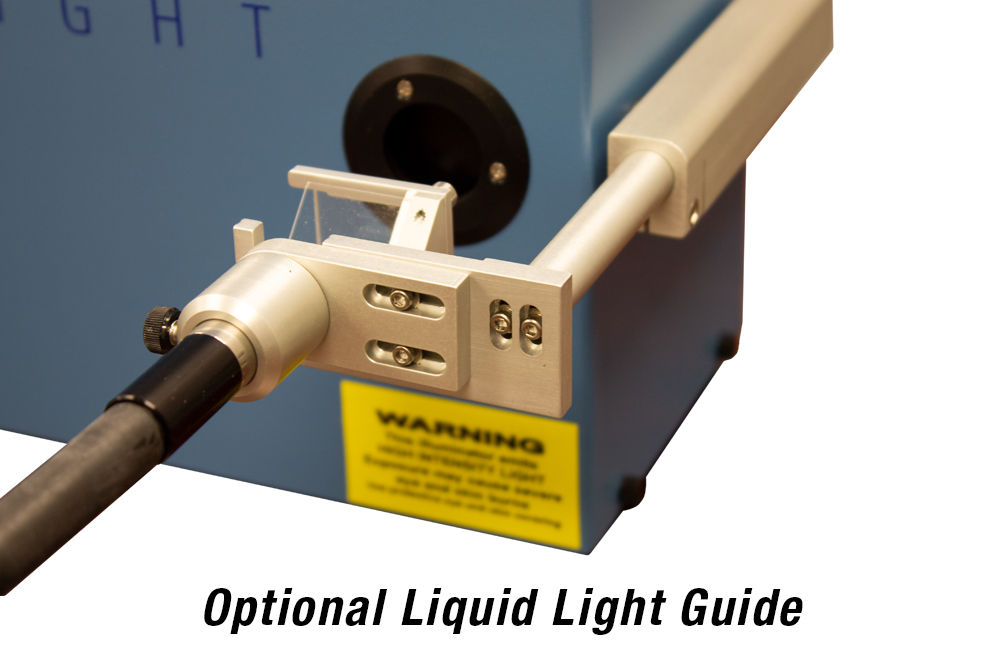

Solar Light’s 150W single output 16S-150-1.2-UV Solar Simulator produces a 1.2″ (3 cm) spot beam solar UV radiation in the 290-400nm range, with over 90% uniformity in the usable area. The output can be quickly and easily configured by the user to provide UVA only, UVB only, UVA+B, or full spectrum sunlight optionally. An automatic shutter with remote control connection is included. Standard beam orientation is horizontal, but vertical orientation and liquid light guide attachments are available optionally, along with a host of other accessories to tailor the simulator to your specific application. These precision research-grade instruments are specifically designed to comply with the latest laboratory standards such as ASTM, IEC, and ISO. 16S-Series simulators can reliably produce UV levels several times stronger than tropical sun, without any of the associated heat load, which is ideal for measuring the damaging effects of UV during materials testing.

Our state of the art single output 16S- Series Solar Simulators produce solar UV radiation in the 290-400nm range, and can be quickly and easily configured by the user to provide UVA only, UVB only, UVA+B, or full spectrum sunlight optionally.

This field can't be Empty

This field can't be Empty

This field can't be Empty

1.2” (3 cm)

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (for all models - please specify at order)

This field can't be Empty

Xenon Short Arc (For All Models)

This field can't be Empty

150W (For All Models)

This field can't be Empty

±5% (For All Models)

This field can't be Empty

A (IEC 60904-9 2007)
A (JIS C 8912)
A (ASTM E927 - 05)

This field can't be Empty

B (IEC 60904-9 2007)
B (JIS C 8912)
B (ASTM E927 - 05)

This field can't be Empty

< ±2% rms

This field can't be Empty

11.8” (30 cm)

This field can't be Empty

3.9” (10 cm)

This field can't be Empty

Near Zero

This field can't be Empty

Factory Set Limit is 320 watts max

This field can't be Empty

32°F to 104°F / 0°C to +40°C

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

Forced air

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

7 lbs (3.2kg)

This field can't be Empty

Brochure

UV SOLAR SIMULATOR • 16S-UV Brochure

Quick Start Guide

16S-Series 150-300W Solar Simulator Quick Start Guide
