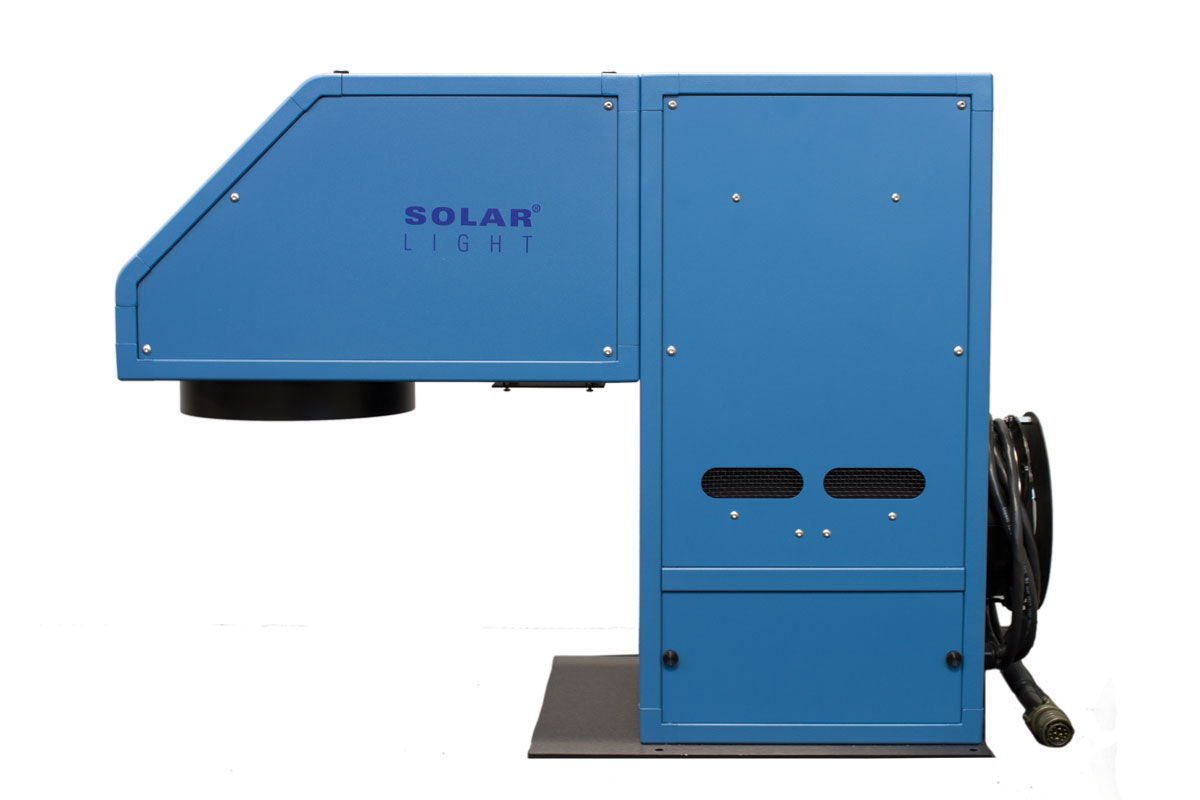

4″ (10 cm) Square Beam 1000W IR Solar Simulator Model LS1000-4S-IR

LS1000-4S-IR Solar Simulators produce a 4″ (10 cm) Infrared (IR) solar radiation in the 700-2400nm range  specifically designed for in vitro and in vivo sunscreen testing, as well as clinical, medical, and photobiological studies.

Add to Wishlist
GET A QUOTE
Category: Tag:

Description

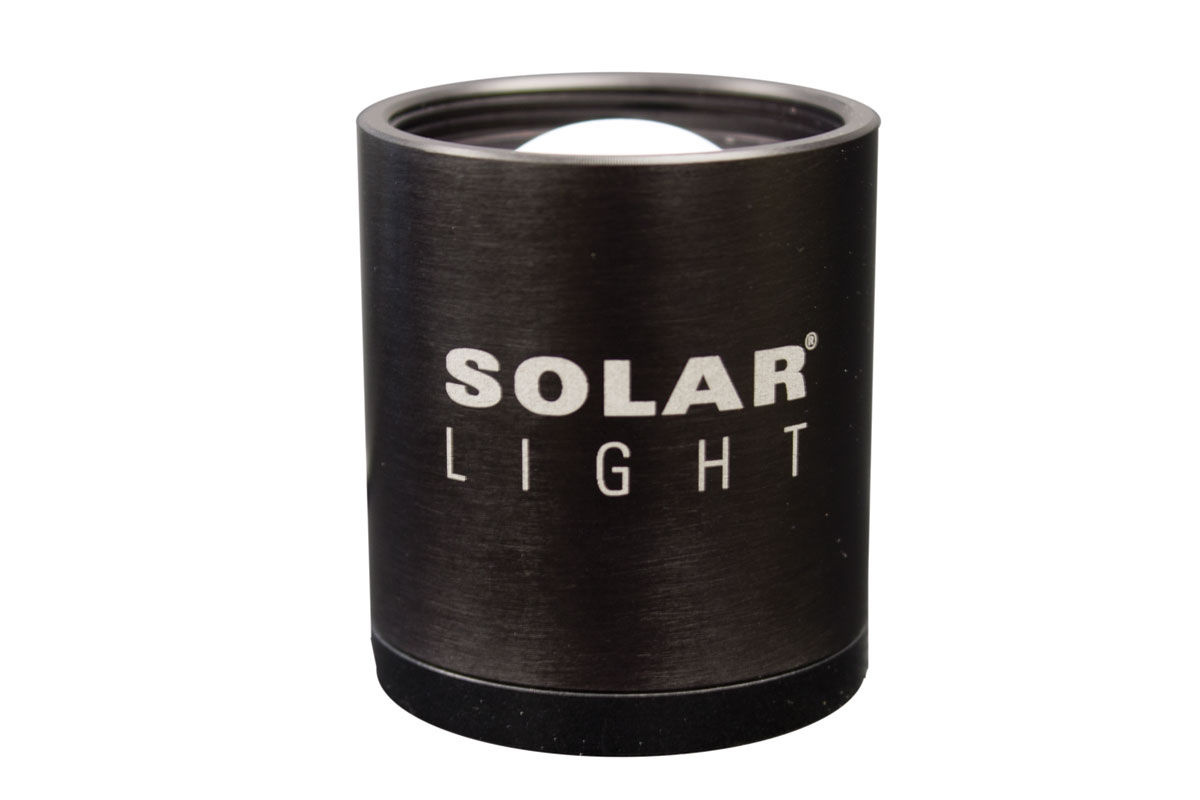

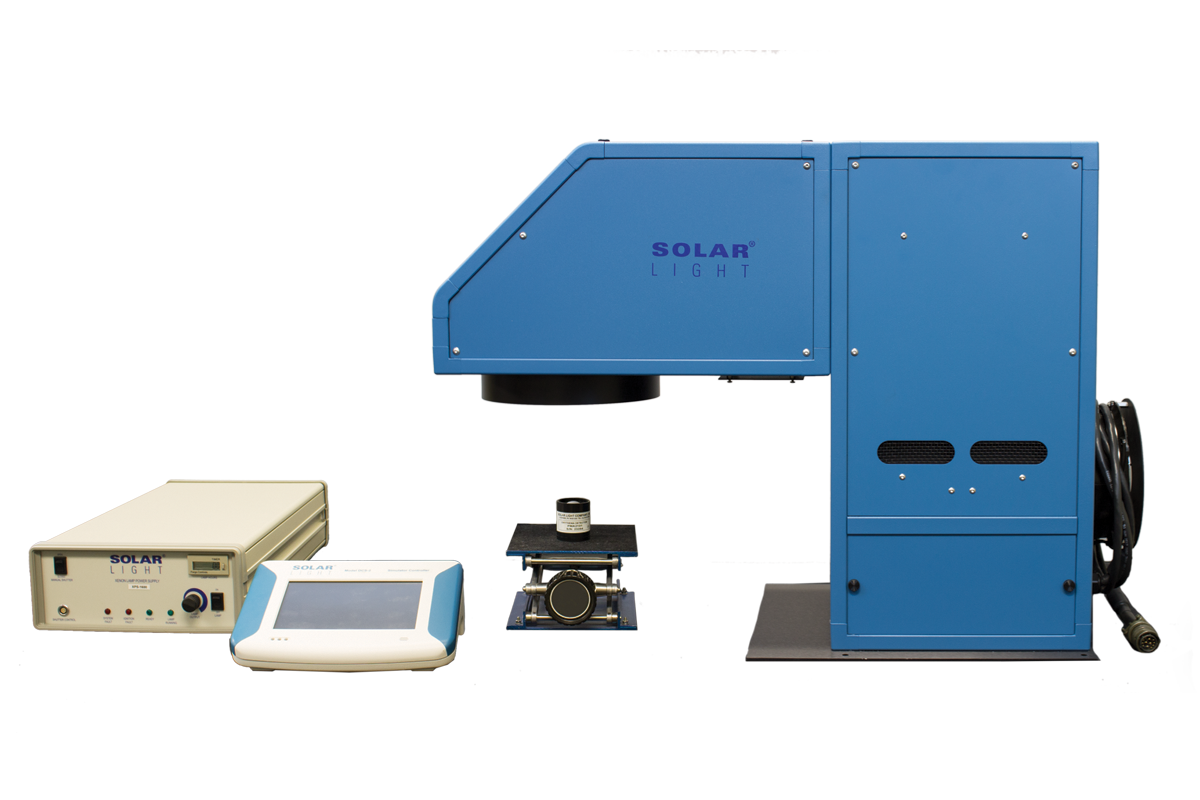

Solar Light’s state of the art single output LS1000-Series and 16S-Series Solar Simulators produce IR solar radiation in the 700-2400nm range. These precision research-grade instruments are specifically designed for in vitro and in vivo sunscreen testing, as well as clinical, medical, and photobiological studies. They are fully compliant with the most current FDA and ISO requirements. Everything required for instant testing right out of the crate is included direct from the factory: Solar Simulator, Dose Controller / Radiometer, NIST-traceable PMA-Series Sensor, safety glasses, and all related accessories!

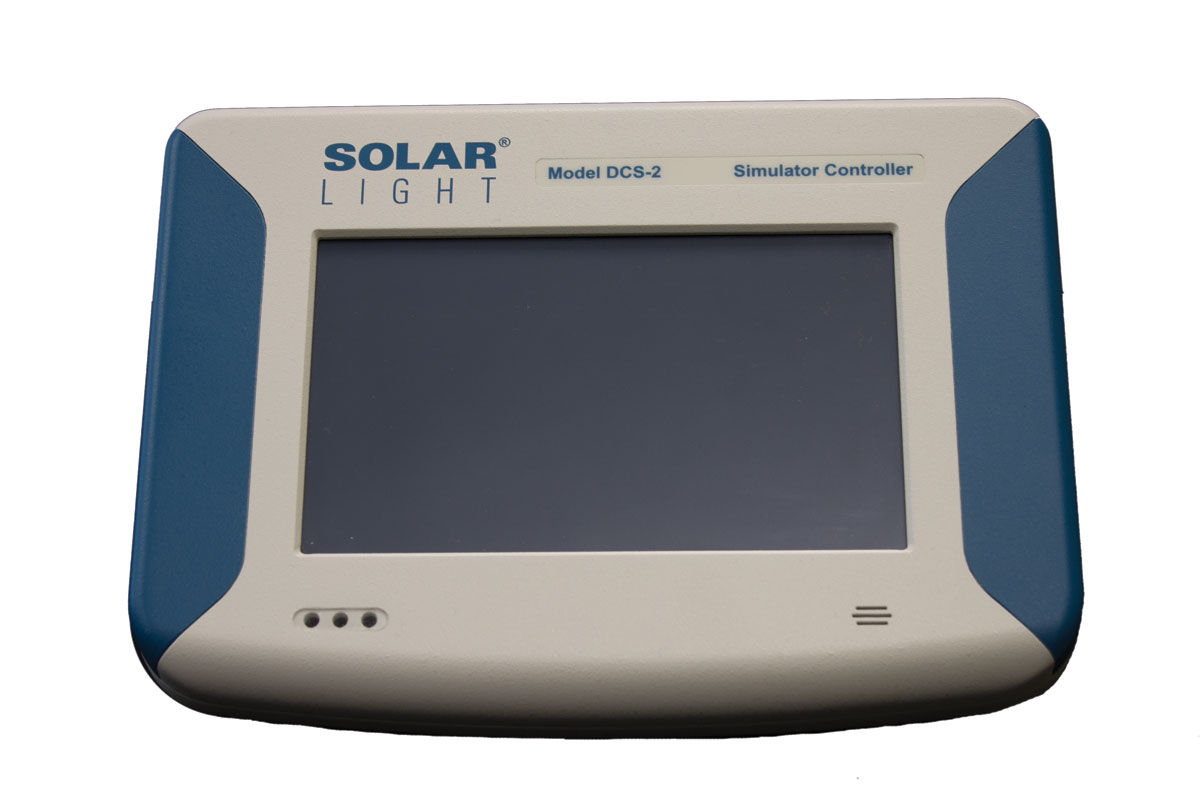

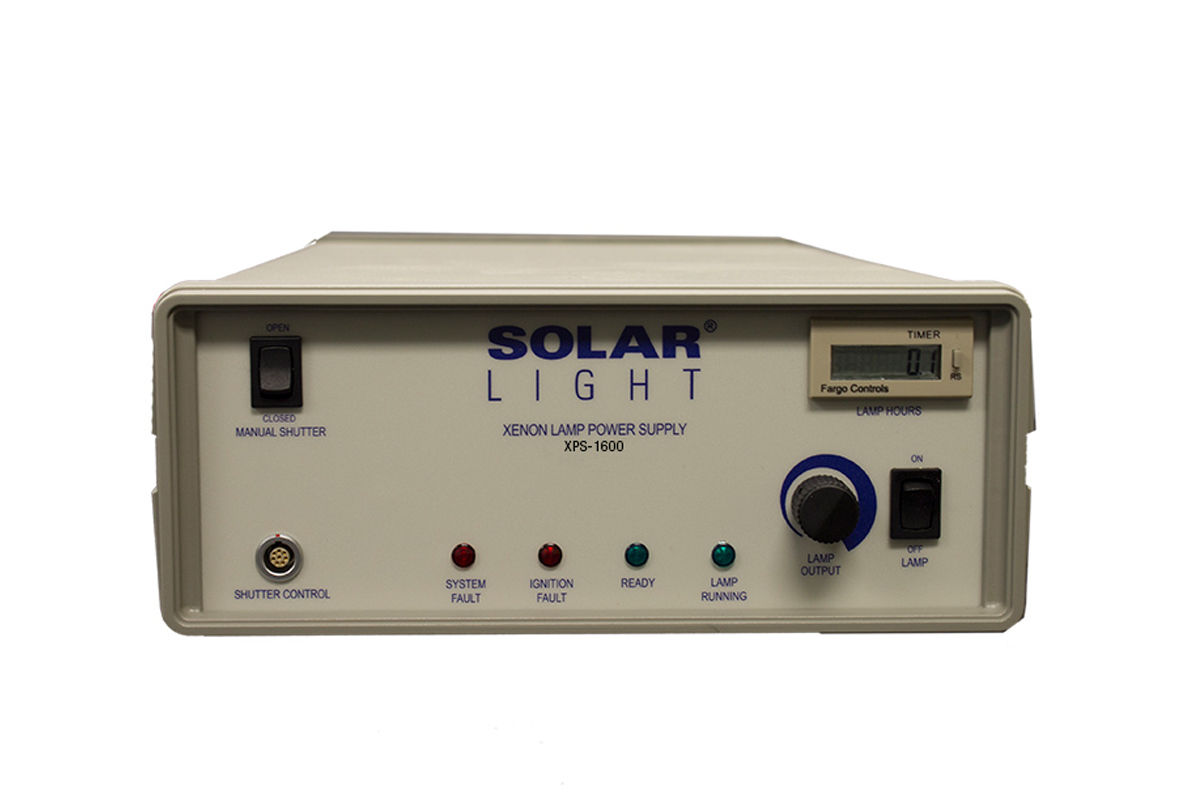

<ul> <li><a href="https://solarlight.com/product/1000w-solar-simulator-ls1000-4s-uv/">LS1000-4S-UV Solar Simulator with 4” (10 cm) vertical output</a></li> <li><a href="https://solarlight.com/product/xps-1600-xenon-lamp-power-supply/">XPS-1600 Power Supply</a></li> <li><a href="https://solarlight.com/product/dose-controllermeter-dcs-2-0/">DCS-2 Automatic Dose Controller</a></li> <li>UV Safety Glasses (Medium)</li> </ul>

This field can't be Empty

4" (10 cm)

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (for all models - please specify at order)

This field can't be Empty

Xenon Short Arc (For All Models)

This field can't be Empty

150W (For All Models)

This field can't be Empty

±5% (For All Models)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

< ±2% rms

This field can't be Empty

B (IEC 60904-9 2007)<br> B (JIS C 8912)<br> B (ASTM E927 - 05)

This field can't be Empty

3” (7.6 cm)

This field can't be Empty

n/a

This field can't be Empty

Near Zero

This field can't be Empty

Factory Set Limit is 150 watts max

This field can't be Empty

32°F to 104°F / 0°C to +40°C

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

Forced air

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

40 lbs. (18.2 kg.)

This field can't be Empty

Our state of the art single output LS1000- Series Solar Simulators produce solar UV radiation in the 290-400nm range, and can be quickly and easily configured by the user to provide UVA only, UVB only, UVA+B, or full spectrum sunlight optionally.

This field can't be Empty

<ul> <li><a href="https://solarlight.com/product/1000w-solar-simulator-ls1000-4s-uv/">LS1000-4S-UV Solar Simulator with 4” (10 cm) vertical output</a></li> <li><a href="https://solarlight.com/product/xps-1600-xenon-lamp-power-supply/">XPS-1600 Power Supply</a></li> <li><a href="https://solarlight.com/product/dose-controllermeter-dcs-2-0/">DCS-2 Automatic Dose Controller</a></li> <li>UV Safety Glasses (Medium)</li> </ul>

This field can't be Empty

0.4u201d (1 cm)

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (for all models - please specify at order)

This field can't be Empty

Xenon Short Arc (For All Models)

This field can't be Empty

1000W (For All Models)

This field can't be Empty

±5% (For All Models)

This field can't be Empty

±1.5-3 Degree Half Angle (For All Models)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

B (IEC 60904-9 2007)<br> B (JIS C 8912)<br> B (ASTM E927 - 05)

This field can't be Empty

< ±2% rms

This field can't be Empty

5.0” ±2.0” (12.7 cm +/- 5.2 cm)

This field can't be Empty

Near Zero

This field can't be Empty

<0.2% of maximum output current

This field can't be Empty

<0.5% of maximum output current

This field can't be Empty

<0.5% of maximum output current

This field can't be Empty

Factory Set Limit is 1,500 watts max

This field can't be Empty

32°F to 104°F / 0°C to +40°C

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

Forced air

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

40 lbs. (18.2 kg.)

This field can't be Empty

Brochure

INFRARED (IR) SOLAR SIMULATOR • LS1000-4S-IR

DOWNLOAD

8-5103 Sandblasted PMMA Plates

Solar Light's Sandblasted PMMA plates are of the highest quality in the industry. Ra=5 micron surface per ISO. Sold...

GET A QUOTE

8-5105 Molded PMMA Plates

Solar Lights Molded PMMA Plates are the highest quality in the industry. Ra=5 micron surface per ISO, Sa=6 micron, 50.3mm...

GET A QUOTE

Laboratory Scissor Jack

Solar Light Company's laboratory scissor jack has a 5.5” X 5.5” (14 cm X 14 cm) surface area and...

GET A QUOTE

SL-05729 1600 Watt Ozone-Free Short Arc Xenon Lamp

This OEM Xe Replacement Lamp is designed to work with current generation Solar Light LS1000-Series Solar Simulators. Its proprietary...

GET A QUOTE

1 YEAR STANDARD WARRANTY

SOLAR LIGHT COMPANY warrants that the equipment has been carefully tested, inspected and left the Factory in proper working condition, free of visible defects.  SOLAR LIGHT COMPANY warrants the equipment to be free from defects in material and workmanship, under normal use and operation, for a period of one (1) year after the date of initial operation, or demonstration; or eighteen (18) months from the date of shipment from the Factory; or whichever occurs first. The warranty is limited to the free replacement of all-defective parts and free labor during the first year of warranty.  Defective parts replaced under this warranty shall become the property of SOLAR LIGHT COMPANY. The above stated Warranty is subject to the following conditions: Equipment being installed within the United States of America, Canada, or sold by authorized SOLAR LIGHT COMPANY representatives or their agents outside the continental United States. The equipment being installed is operated and maintained in accordance with SOLAR LIGHT COMPANY’s operating instructions, maintenance instructions and specifications. Utilization of only SOLAR LIGHT COMPANY’s authorized parts and components.  The utilization of a duly authorized representative for all work performed on SOLAR LIGHT COMPANY equipment during the warranty period.  Any variation(s) to the above warranty must be in writing and mutually acceptable by SOLAR LIGHT COMPANY and the customer. The warranty shall not apply to damages resulting from errors in installation, nor shall it apply to any equipment, which has been subject to damages, alterations or misuse by the purchaser.  Parts of the equipment, which would be generally considered as expendable service items during normal use, such as fuses, lamps, detector shields, etc., are not covered under the warranty. THERE ARE NO WARRANTIES, WHICH EXTEND BEYOND THIS DESCRIPTION, AND EXPRESSLY NO IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.  IN NO EVENT SHALL SOLAR LIGHT COMPANY BE LIABLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR ANTICIPATED LOSS OF PROFITS SUFFERED BY THE PURCHASER. Extended Warranty Plans are also available.
