Applications

PV/Solar Cell Testing

Full Spectrum Materials Testing

Accelerated Photostability Testing

Features
Includes XPS 300 watt power supply
300 watt xenon arc lamp
Air Mass Filters validated to NIST traceable light sources and are in accordance with ASTM Standards
Internal igniter used to ignite the xenon arc lamp
Lamp housing
Complete high performance optics for collimation and uniformity
NEW Class "A" Air Mass 1.5 Spectrum in a 3cm spot size.
‡Air mass 1.5 = 952 w/m2
‡ Intensity varies with area of output. The spectrum remains the same. See configuration below.
Specifications

Weight

7 lbs (3.2kg)

Dimensions

10.75 x 5.5 x 9.5" (27x14x24cm)

Line Voltage:

120 - 240 DVAC, 1Ph
30/60 Hz

Illuminated Area:

Vertical, diameter 1.2" (3 cm)

Light Source:

Xenon 300 Watt

Lamp Lifetime:

Approximately 900 hours
Packages

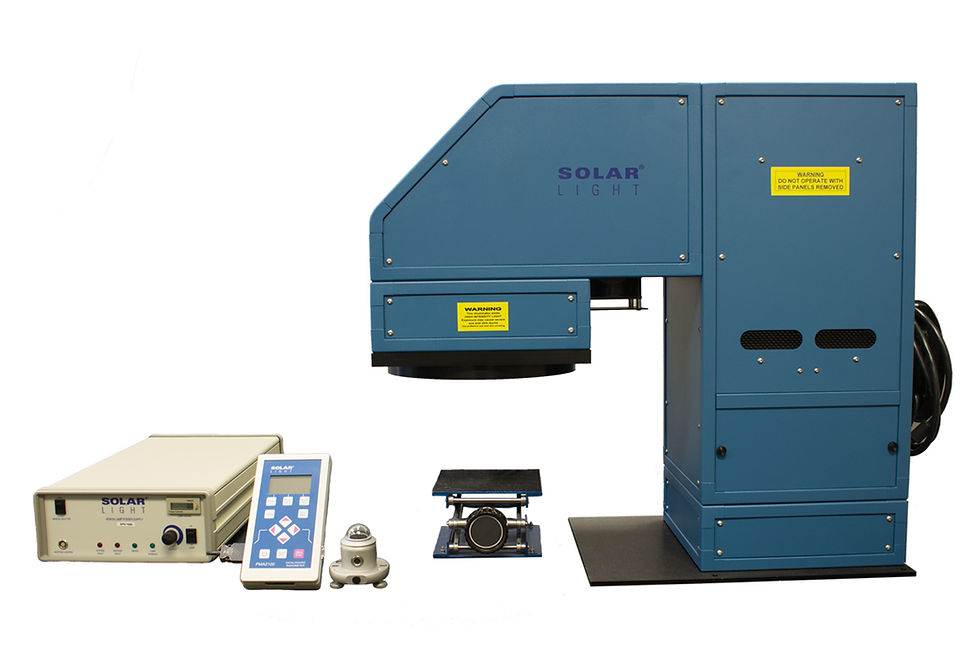

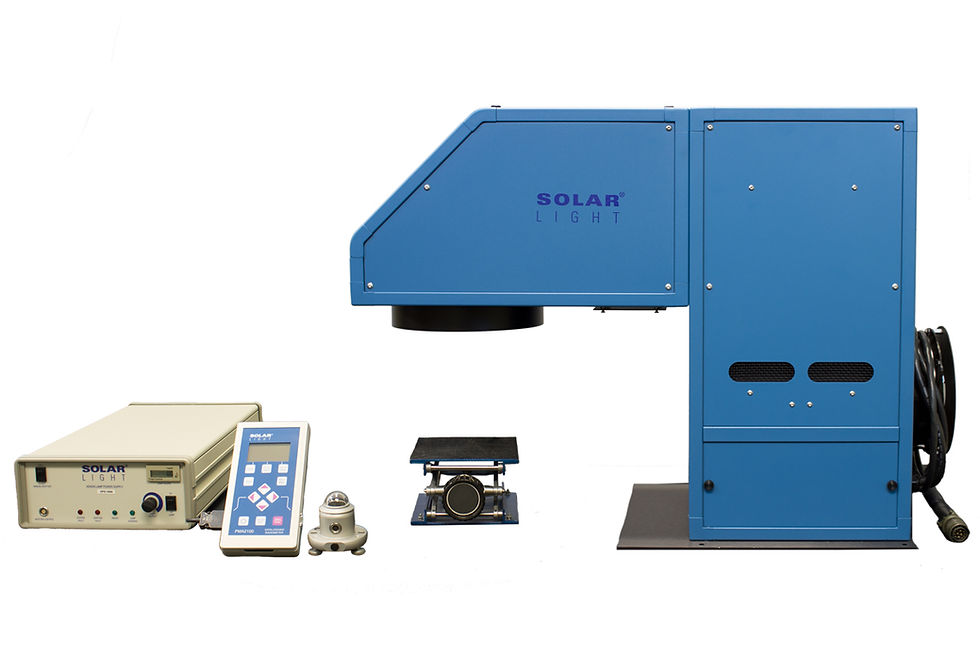

16S-300-005 Complete

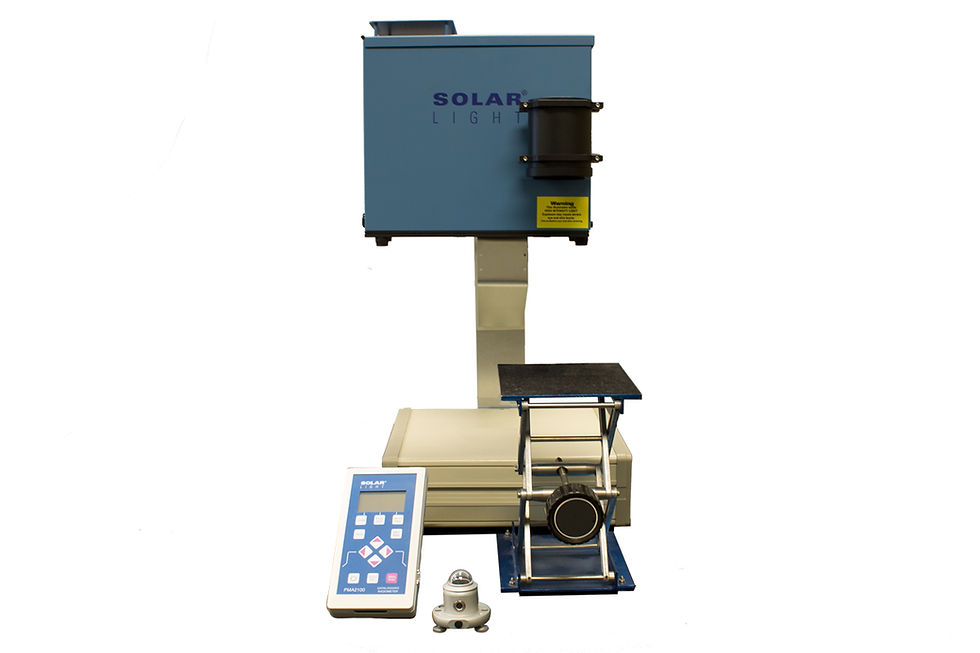

Includes: 16S-300 Solar Simulator with 5.7cm vertical output downward, 1 sun intensity

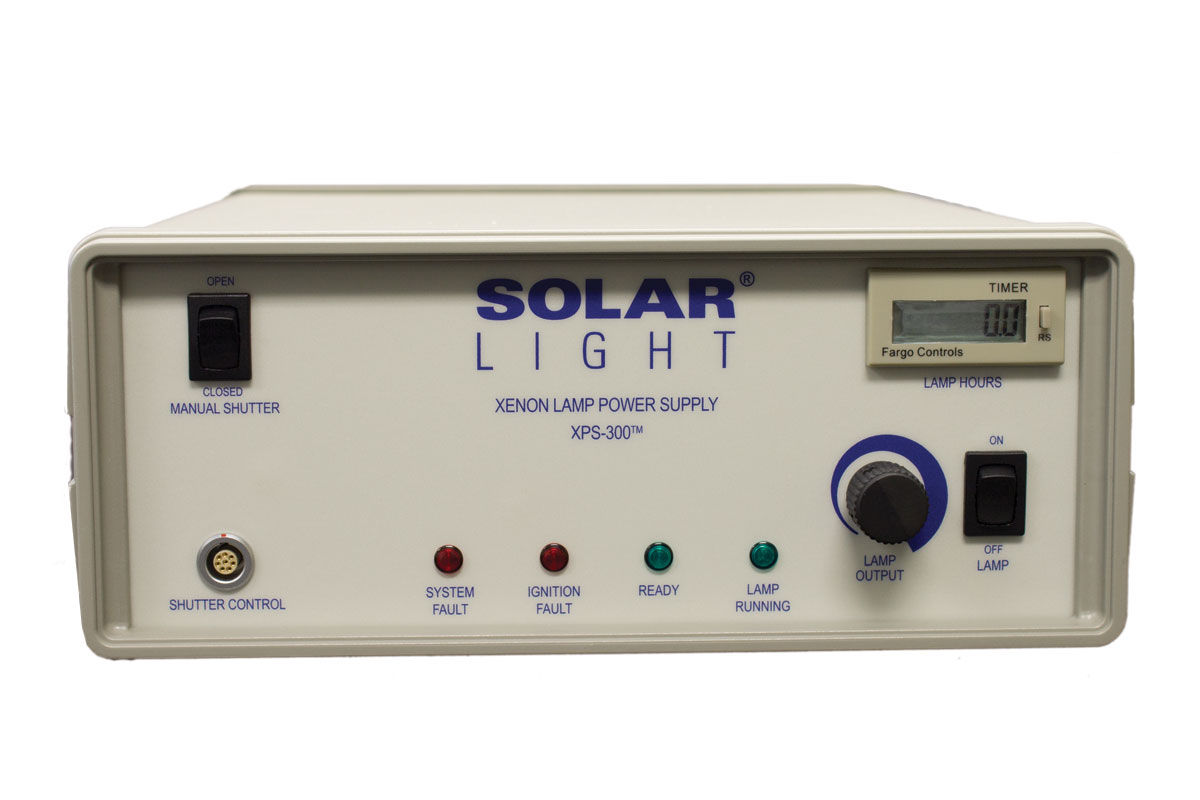

300W XPS Power Supply

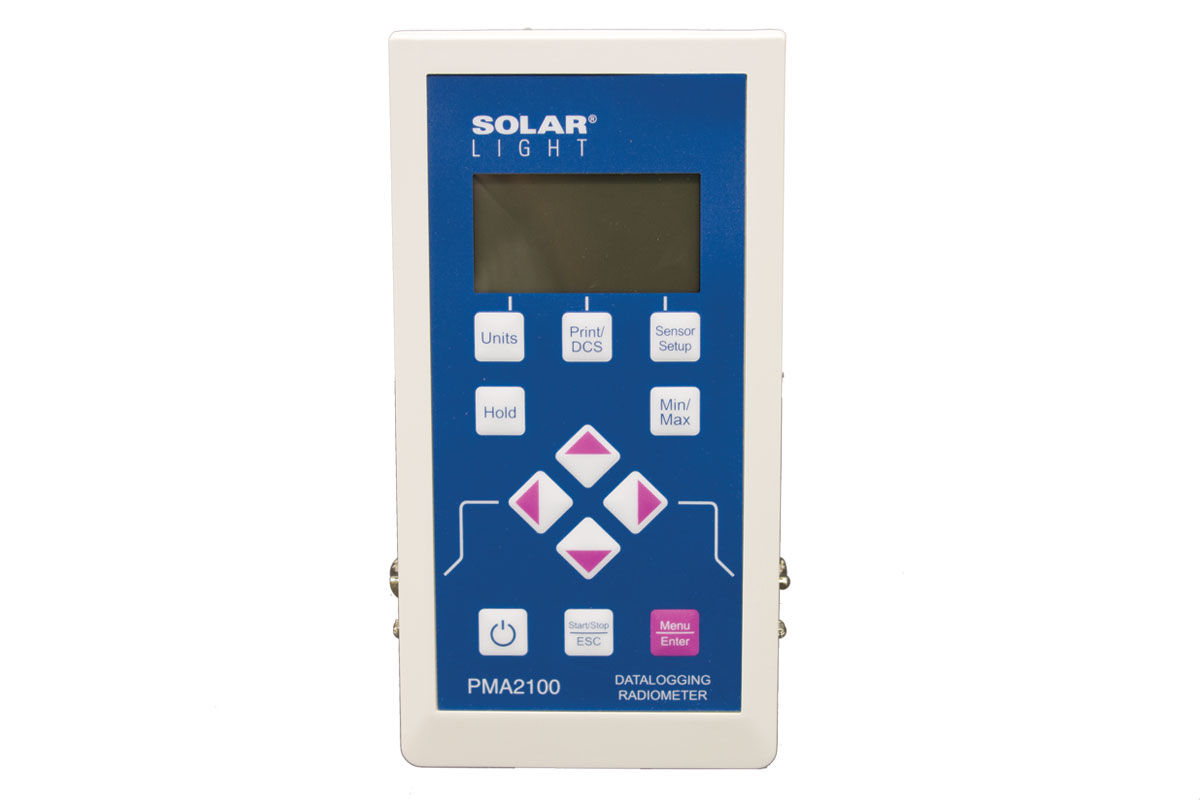

PMA2100 Datalogging Radiometer

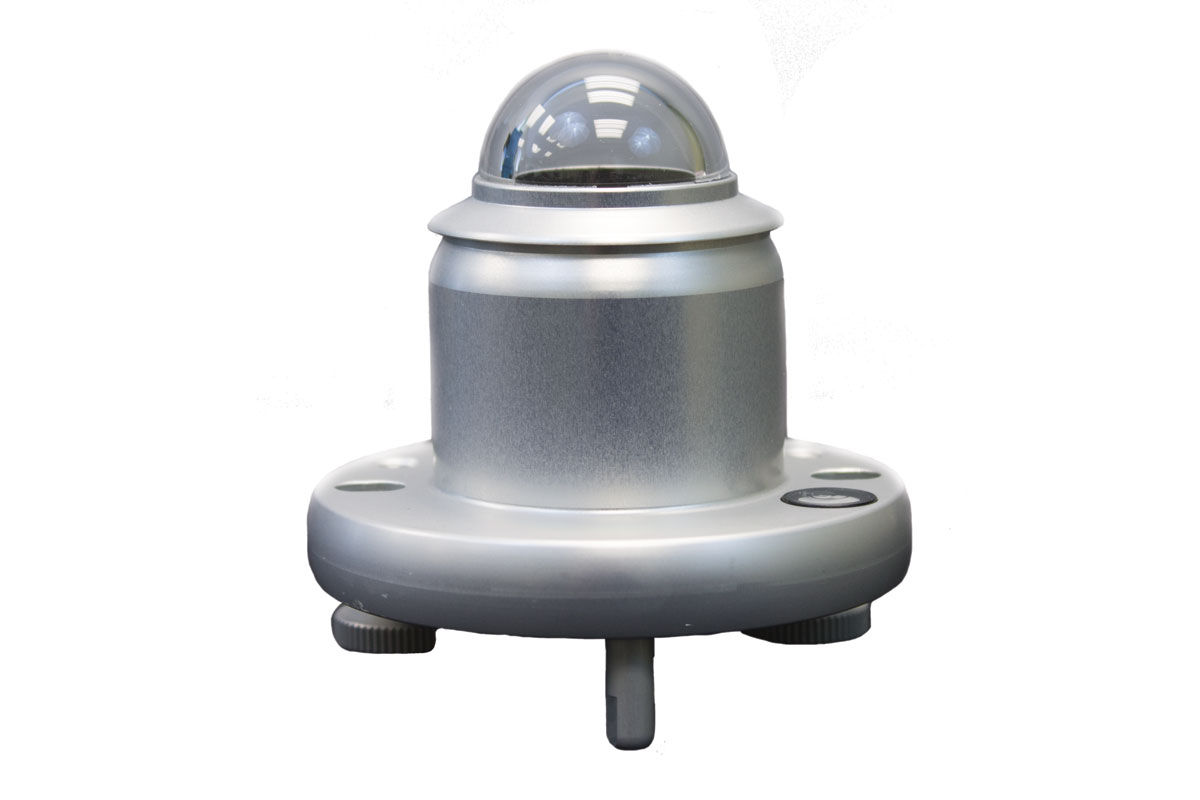

PMA2144 Class 11 Pyranometer with 6' cable

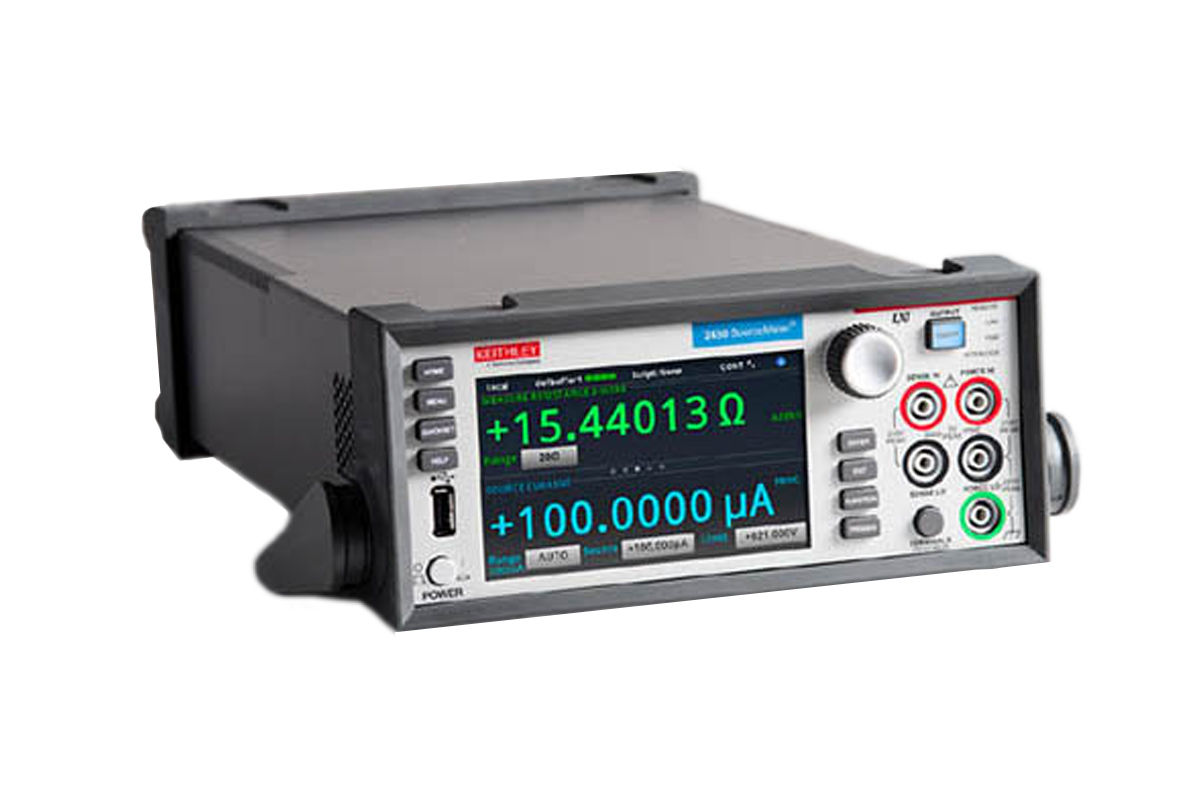

Source Meter

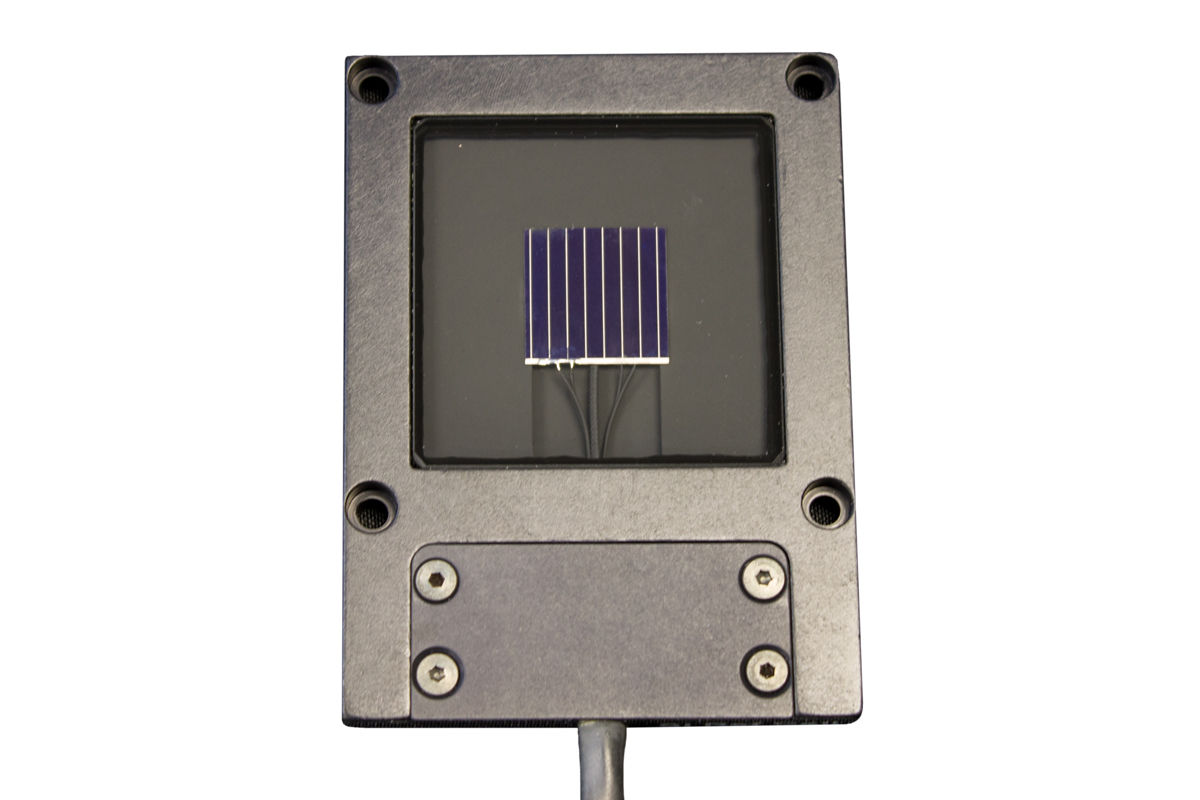

Calibrated Reference Cell
300W Xenon Lamp

16S-300-002 Enhanced

Includes: 16S-300 Solar Simulator with 5.7cm vertical output downward, 1 sun intensity
300W XPS Power Supply
PMA2100 Datalogging Radiometer
PMA2144 Class 11 Pyranometer with 6' cable
300W Xenon Lamp
Configuration

Size/shape output
Area of output
150 watt Intensity
300 watt Intensity

3 cm round output
7.068 cm2
2000 w/m2
4000 w/m2

6 cm round output
28.27 cm2
500 w/m2
1000 w/m2

Literature
PV CELL TESTING SIMULATOR 16S-300-002 Simulator16S-300-002.pdf

Downloads

Effects of Dye Loading Conditions on the Energy Conversion Efficiency of ZnO and TiO2 Dye-Sensitized Solar Cells
• http://pubs.acs.org/doi/abs/10.1021/jp076724f
Dose Control System
The Dose Control System is an integral part of conducting precision sunlight exposure testing. The Dose Control System allows the monitoring and controlling of the output of the 16S-002. It accumulates the amount of light being outputted and alerts you when your preset dose has been reached. This features allows you to expose a precise amount of light to the solar cell.
Laboratory Scissor Jack, 6"x6" surface, 2.25" to 11" height

Dose Controller/Meter DCS 2.0
Included Accessories
XPS Power supply
Xenon Lamp
Required Accessories

1 year Standard Warranty

SOLAR LIGHT COMPANY warrants that the equipment has been carefully tested, inspected and left the Factory in proper working condition, free of visible defects.  SOLAR LIGHT COMPANY warrants the equipment to be free from defects in material and workmanship, under normal use and operation, for a period of one (1) year after the date of initial operation, or demonstration; or eighteen (18) months from the date of shipment from the Factory; or whichever occurs first. The warranty is limited to the free replacement of all-defective parts and free labor during the first year of warranty.  Defective parts replaced under this warranty shall become the property of SOLAR LIGHT COMPANY. The above stated Warranty is subject to the following conditions: Equipment being installed within the United States of America, Canada, or sold by authorized SOLAR LIGHT COMPANY representatives or their agents outside the continental United States. The equipment being installed is operated and maintained in accordance with SOLAR LIGHT COMPANY’s operating instructions, maintenance instructions and specifications. Utilization of only SOLAR LIGHT COMPANY’s authorized parts and components.  The utilization of a duly authorized representative for all work performed on SOLAR LIGHT COMPANY equipment during the warranty period.  Any variation(s) to the above warranty must be in writing and mutually acceptable by SOLAR LIGHT COMPANY and the customer. The warranty shall not apply to damages resulting from errors in installation, nor shall it apply to any equipment, which has been subject to damages, alterations or misuse by the purchaser.  Parts of the equipment, which would be generally considered as expendable service items during normal use, such as fuses, lamps, detector shields, etc., are not covered under the warranty. THERE ARE NO WARRANTIES, WHICH EXTEND BEYOND THIS DESCRIPTION, AND EXPRESSLY NO IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.  IN NO EVENT SHALL SOLAR LIGHT COMPANY BE LIABLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR ANTICIPATED LOSS OF PROFITS SUFFERED BY THE PURCHASER.
