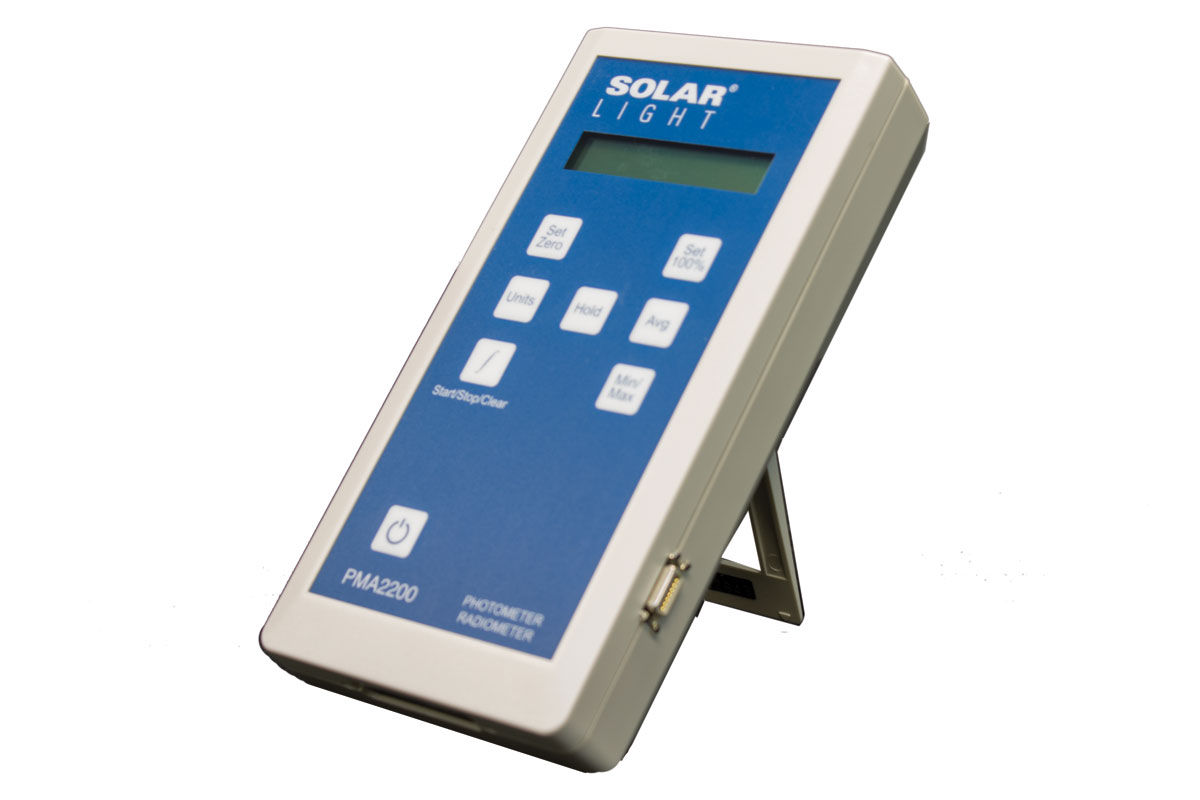

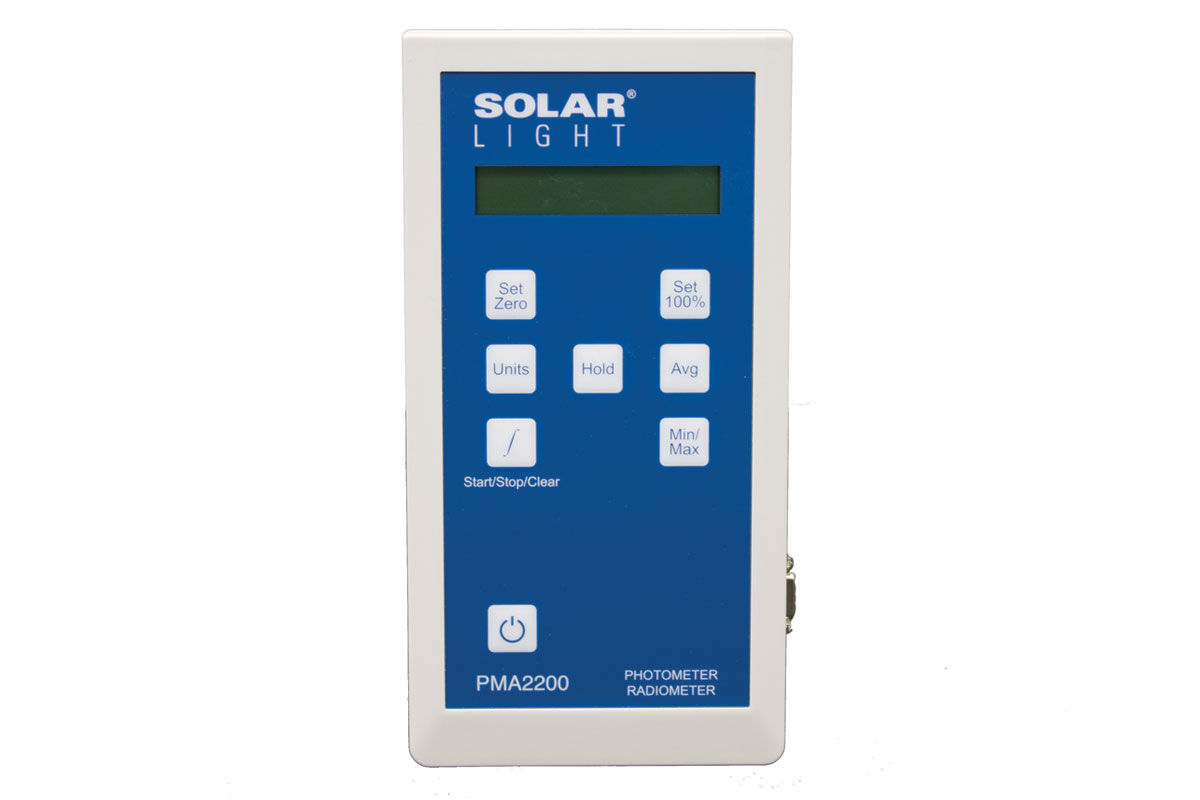

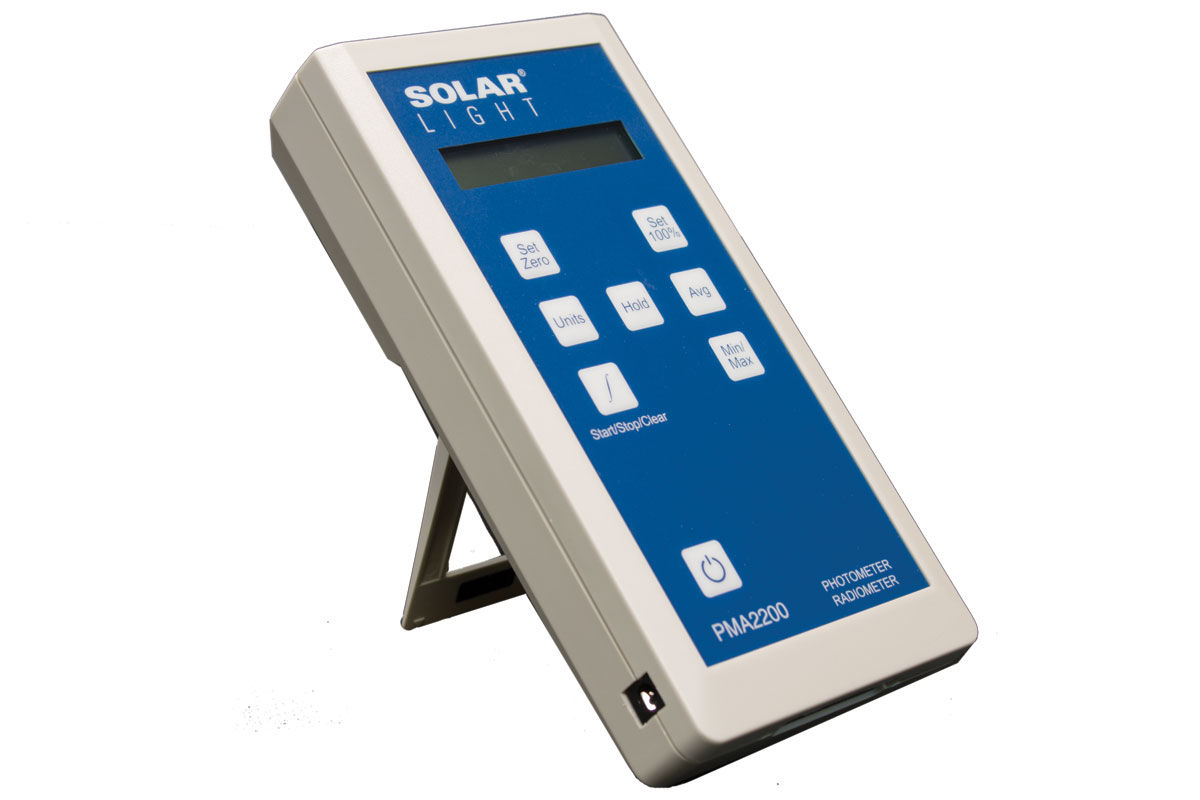

Model PMA2200 Single-Input Radiometer

Solar Light’s versatile Model PMA2200 Single-Input Radiometer accepts over 85 different PMA-Series sensors measuring UV, Visible and IR wavelengths.

GET A QUOTE

Description

Solar Light’s versatile Model PMA2200 Single-Input Radiometer accepts over 85 different PMA-Series sensors measuring UV, Visible and IR wavelengths. Its patented Intelligent Detector Technology allows users to interchange sensors without losing the functionality of a single purpose meter, while the Automatic Sensor Recognition feature eliminates the need to match meters and sensors. Any PMA-Series Sensor can interface with any PMA-Series Meter thanks to a memory chip, which makes it unnecessary to permanently load sensor information into the meter. This is especially useful in labs that have more than one meter and several sensors!

This streamlined model allows all functions to be operated directly from the keypad. The unit is powered by 4 AA Alkaline or NiCd batteries, and a power supply is also included for laboratory use. The sensor output algorithm provides precision readings, choice of units, and date of calibration. Instant values (such as power) can be time integrated to also show energy. Units can be altered (e.g., ft-candles to lux.) and Min., Max., and Average can be displayed. The unit also features a programmable alarm from a time interval or max value, and auto ranging sensors remember last configuration, including units, alarms and data storage settings.

Product bundle includes the PMA2200 Radiometer, a universal power supply, NIST Calibration Certificate, and a rugged carrying case with room for the PMA2200 and up to two PMA-Series sensors. Sensors are sold separately.

U.S. Pat. 5,946,641
U.S. Pat. 5,790,432

0.4” (1 cm)

This field can't be Empty

Vertical Downward, Vertical Upward, or Horizontal (for all models - please specify at order)

This field can't be Empty

Xenon Short Arc (For All Models)

This field can't be Empty

150W (For All Models)

This field can't be Empty

±5% (For All Models)

This field can't be Empty

A (IEC 60904-9 2007)<br> A (JIS C 8912)<br> A (ASTM E927 - 05)

This field can't be Empty

< ±2% rms

This field can't be Empty

B (IEC 60904-9 2007)<br> B (JIS C 8912)<br> B (ASTM E927 - 05)

This field can't be Empty

3” (7.6 cm)

This field can't be Empty

n/a

This field can't be Empty

Near Zero

This field can't be Empty

Factory Set Limit is 150 watts max

This field can't be Empty

32°F to 95°F / 0°C to 35°C

This field can't be Empty

-4°F to 185°F / -20°C to +85°C

This field can't be Empty

0 to 95% non-condensing

This field can't be Empty

Forced air

This field can't be Empty

EN61010-1 Laboratory, EN60335 Appliances, IEC60601-1 Medical

This field can't be Empty

EN55011 Emissions, IEC60601-1-2:2001, 2nd Rev 2 Medical, IEC61000-3-2 Harmonic, IEC61000-3-3 Flicker, IEC61000-4-2 ESD, IEC61000-4-3 Radiated, IEC61000-4-4 EFT, IEC61000-4-5 Surge, IEC61000-4-6 Conducted, IEC61000-4-11 Voltage Dip, IEC61000-4-8 Magnetic Field

This field can't be Empty

18 oz. (510 grams)

This field can't be Empty

1 Detector Input with Up to 4 Analog Signals

This field can't be Empty

±4V, single range (autoranging not necessary)

This field can't be Empty

13μV on 4V Range

This field can't be Empty

2.6 x10^6 (6.5 digits)

This field can't be Empty

Within 0.5% FS

This field can't be Empty

0.003% Integral Non-linearity

This field can't be Empty

32 to 120°F (0 to +50°C)

This field can't be Empty

Max 50ppm/°C

This field can't be Empty

4 x AA NiCd or Alkaline Batteries, 9-12V AC or DC Charger

This field can't be Empty

3 per second

This field can't be Empty

10 per second

This field can't be Empty

Up to 40 Hours Between Charges

This field can't be Empty

9-12V AC or DC adapter. 100mA min

This field can't be Empty

Approximately 110mW

This field can't be Empty

12-Button Keypad

This field can't be Empty

4” x 1.75” x 7.5” (10 x 4.3 x 19.3 cm)

This field can't be Empty

2.5” x 0.5” (6.4 x 1.3 cm) Program control 9-button keypad x4.5 cm

This field can't be Empty

18 oz. (510 grams)

This field can't be Empty

<sup>1</sup> The biological effects of UV-A radiation - Edited by F. Urbach and R.W. Gange, Praeger Publishers, New York, 1986 <br> <sup>2</sup> Nichodemus F., “Self study manual on optical radiation measurements”, NBS Technical Note 910-1 (1976).

This field can't be Empty

Brochure

Model PMA2200 Radiometer / Photometer Data Sheet

Quick Start Guide

PMA2200 Quick Start Guide

Model PMA2200 Radiometer / Photometer User Manual

Choosing A Radiometer

PMA Series Radiometers - Capabilities and Applications

Product Not Found
Product Not Found
